The Panda Generator
Seite/Page 40 - Kaptitel/Chapter A: The Panda Generator 19.8.14
A.1.2 Back View

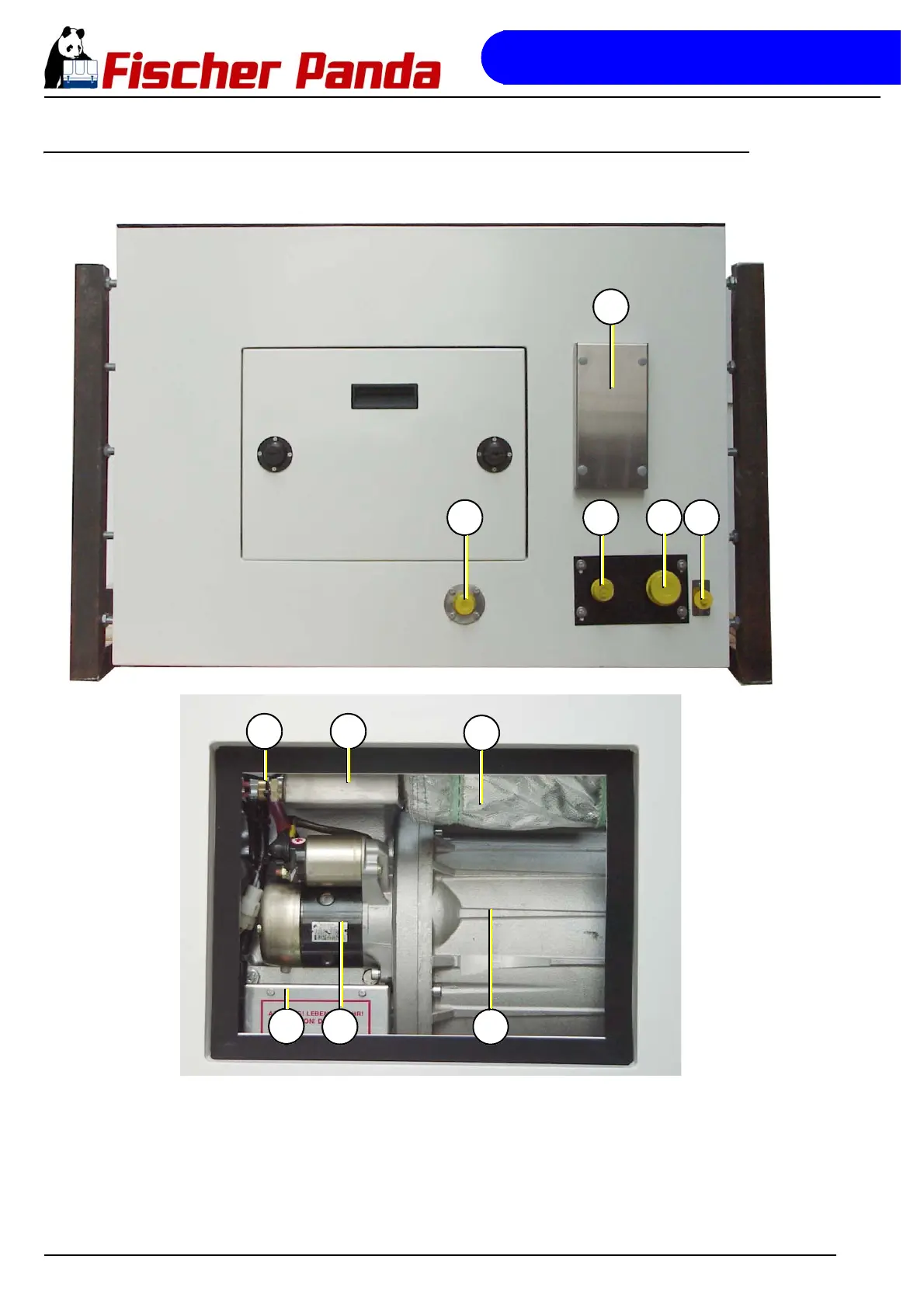

Fig. A.1.2-1: Back View
02
09
10
11
03 04 05
0706
08
01
01. Air suction intake
02. Cooling water intake, radiator - generator
03. Cooling water output, generator - radiator
04. Exhaust output
05. Return pipe expansion tank
06. Thermo-switch at exhaust manifold
07. Water-cooled exhaust manifold
08. Compensator under heat isolation
09. Generator power terminal box
10. Starter motor
11. Generator housing with coil
