I&J7000 Series Operating Manual
Section 5: Dispensing Parameters
Part # 561978B
Rev. H May 04
1. Dispense End Setup
After dispensing a dot or line, it is often required to raise the tip a short distance at a slow
speed. This allows the material to cleanly break free from the tip, without ‘dragging’
material where it is not wanted.
The distance and speed which the tip rises after dispensing is controlled by the L.Length
and L.Speed settings.
After the tip rises the length specified by L.Length at the speed specified by L.Speed, the
tip will continue rising to the Z Clearance height at the speed specified by H.Speed.
The purpose of specifying a Z Clearance height is to allow the tip to rise high enough to
clear any obstacles it may encounter on the way to the next point.
Values for H.Speed, L.Speed and L. Length are registered with the Dispense End Setup
function by pressing the SETUP key, then choosing Dispense End Setup.
Once Dispense End Setup values have been registered at a memory address, all points
after that memory address will use the values specified. If Dispense End Setup values are
registered again, at a higher memory address, all of the points from that memory address
forward will use the new values.

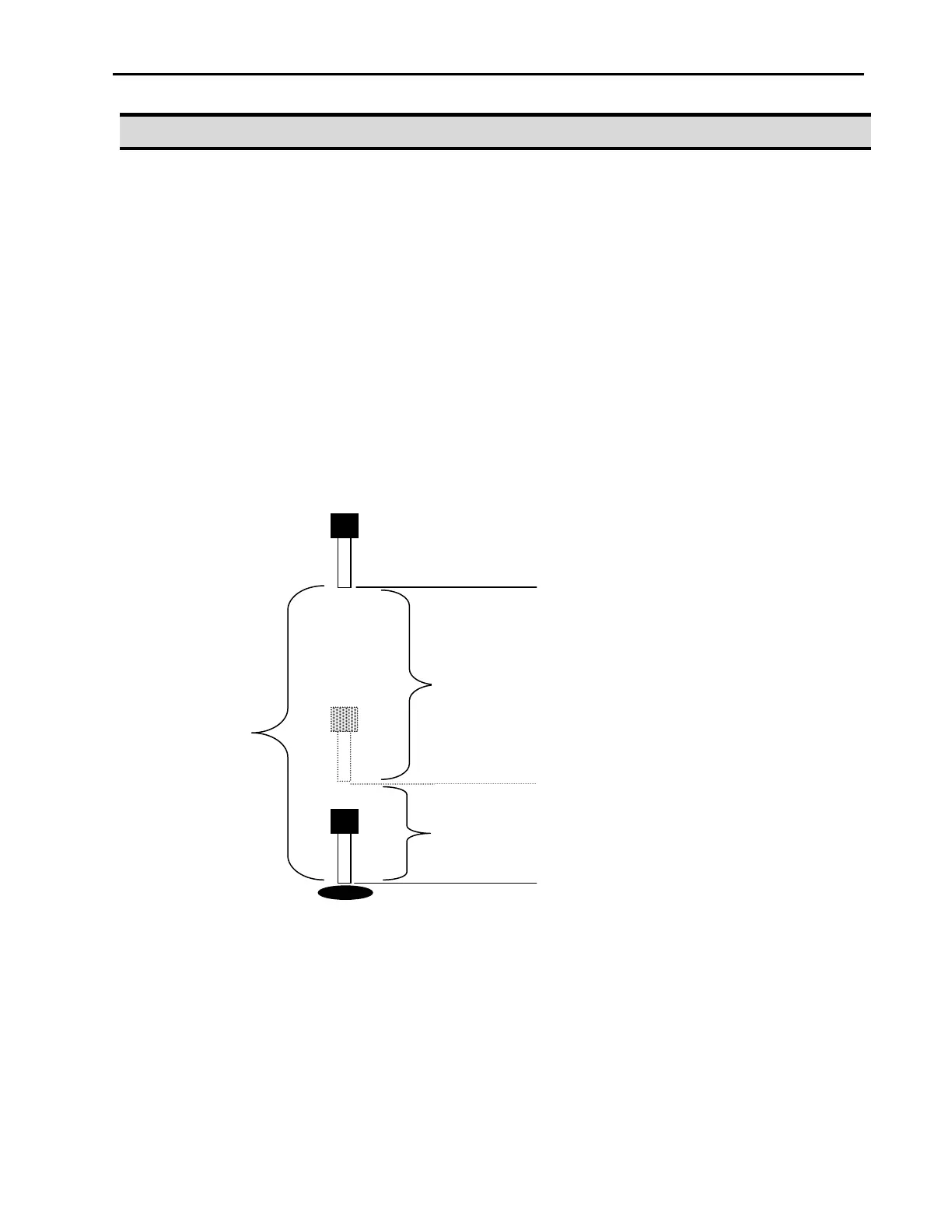

H.Speed 2: Tip continues rising to
Z Clearance height at H.
Speed
L.Length 1: After dispensing, the tip
rises to L.Length at L.Speed
