FISNAR I&J7300 - Mechanical Parts List - I&J7200 A; I&J7200 A - Cover Drawing; I&J7200 A Cover Parts List

I&J7000 Series Operating Manual
Section 8: Schematic and Parts List
Part # 561978B
Rev. H May 04
- Page 89 -
© 2003 I&J Fisnar Inc.
1. Mechanical Parts List – I&J7200A

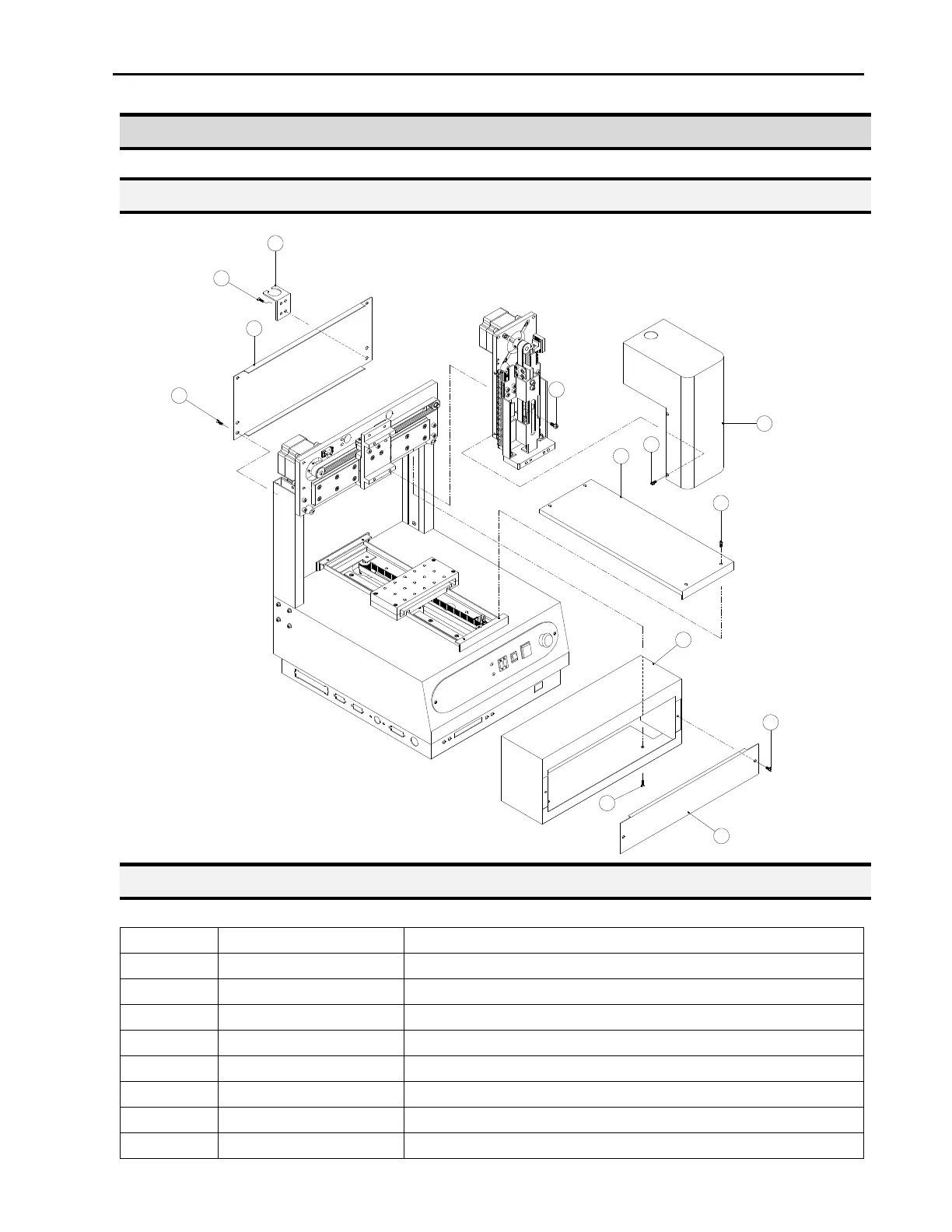

1.1. I&J7200A - Cover Drawing
1.2. I&J7200A Cover Parts List
No.
Part No.
Description
1
310210006
X Axis Box
2
310210007
X Axis Back Panel
3
310210008
Y Axis Cover
4
3k0250001
Z Axis Cover
5
3k0250002
X Axis Front Panel
6
310230001
Z Axis Cable Holder
7
800460011
Screw M3x8
8
800450010
Alloy Hexagonal Socket Bolt M4x15
7
2
7
6
7
0
0
1
3
7
5
7
7
8
4
