I&J7000 Series Operating Manual
Section 6: Point Type & Function Details
Part # 561978B
Rev. H May 04
1.6. Line End
Registers the current XYZ location as a Line End point.
The dispense delay time used at the end of the line can be controlled by registering a Line
Dis. Setup instruction in a previous memory address. The Line Dis. Setup instruction is
registered by pressing the SETUP key.
See also Section 6: 2.2 Line Dispense Setup.
The upward motion of the tip after dispensing can be controlled by registering a Dispense
End setup instruction and / or a Z Clearance instruction in a previous memory address.
Dispense End Setup and Z Clearance instructions are registered using the SETUP key.
1.7. End Program
Registers the current memory address as the end of the program. The end program
instruction will cause the tip to return to the home position at the end of the program cycle.
1.8. Dispenser ON / OFF
The Dispenser ON / OFF instruction will allow the user to program an instruction which will
manually turn the dispenser ON or OFF.
This is useful for turning the dispenser OFF before the end of a line to prevent excess
material at the line end.

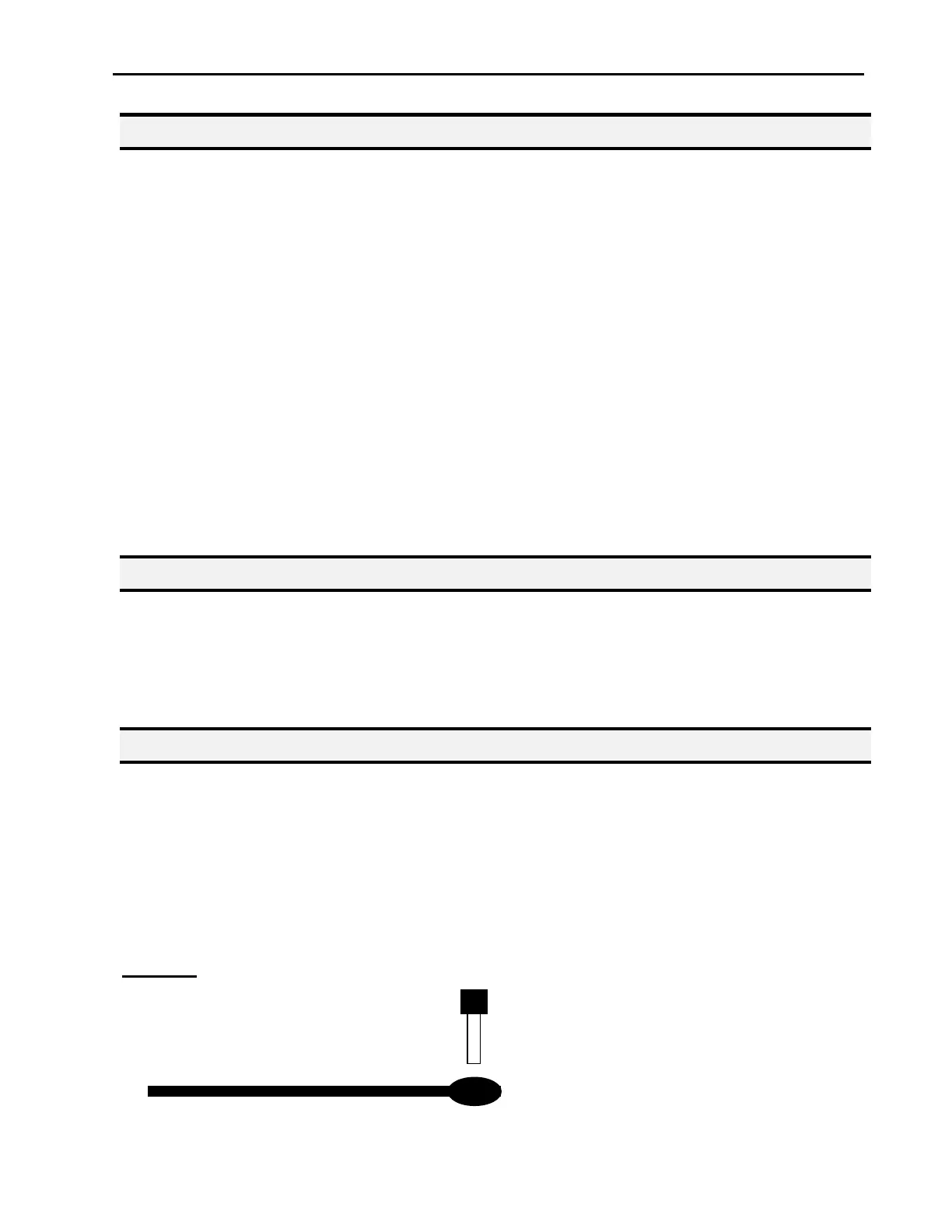

Problem: Too much material at the end of the line
