I&J7000 Series Operating Manual
Section 6: Point Type & Function Details
Part # 561978B
Rev. H May 04
Brush Area: Circle
To use the circular Brush Area function, first register the brush width by pressing ENTER,
then to change to page 2.
Select Brush Area, then press 2 and ENTER to select Circle.
You will be prompted to enter the brush width. The brush with is the distance to move in
the Y axis after each pass in the X axis. Type the value you wish to use for the brush width
and press ENTER.

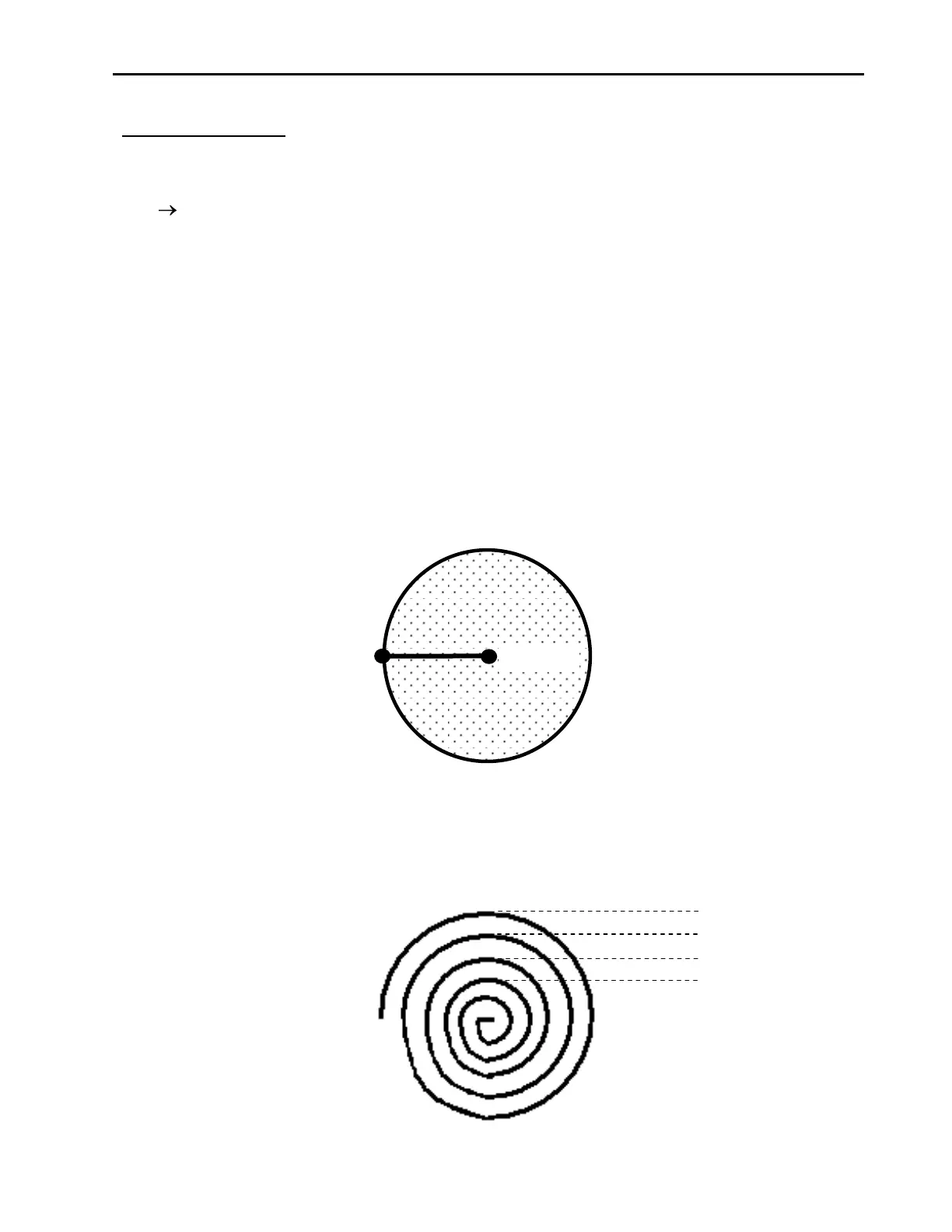

After registering the brush width, jog the tip to a point on the circle and register the location
as a line start point.
Jog directly across to the center of the circle and register the location as a line end point:
If, for example, a brush width of 5 mm was used, the tip will take the following path with
the program is run:
