CHAPTER 3
Technical Information
3.1. System indicators
The Vision-RTK 2 has three LEDs to indicate the current status of the sensor.
• Green: System running
• Amber: System activity (intermittent blinking)
• Red: Not in use
3.2. Physical connectors
3.2.1. Connectors overview

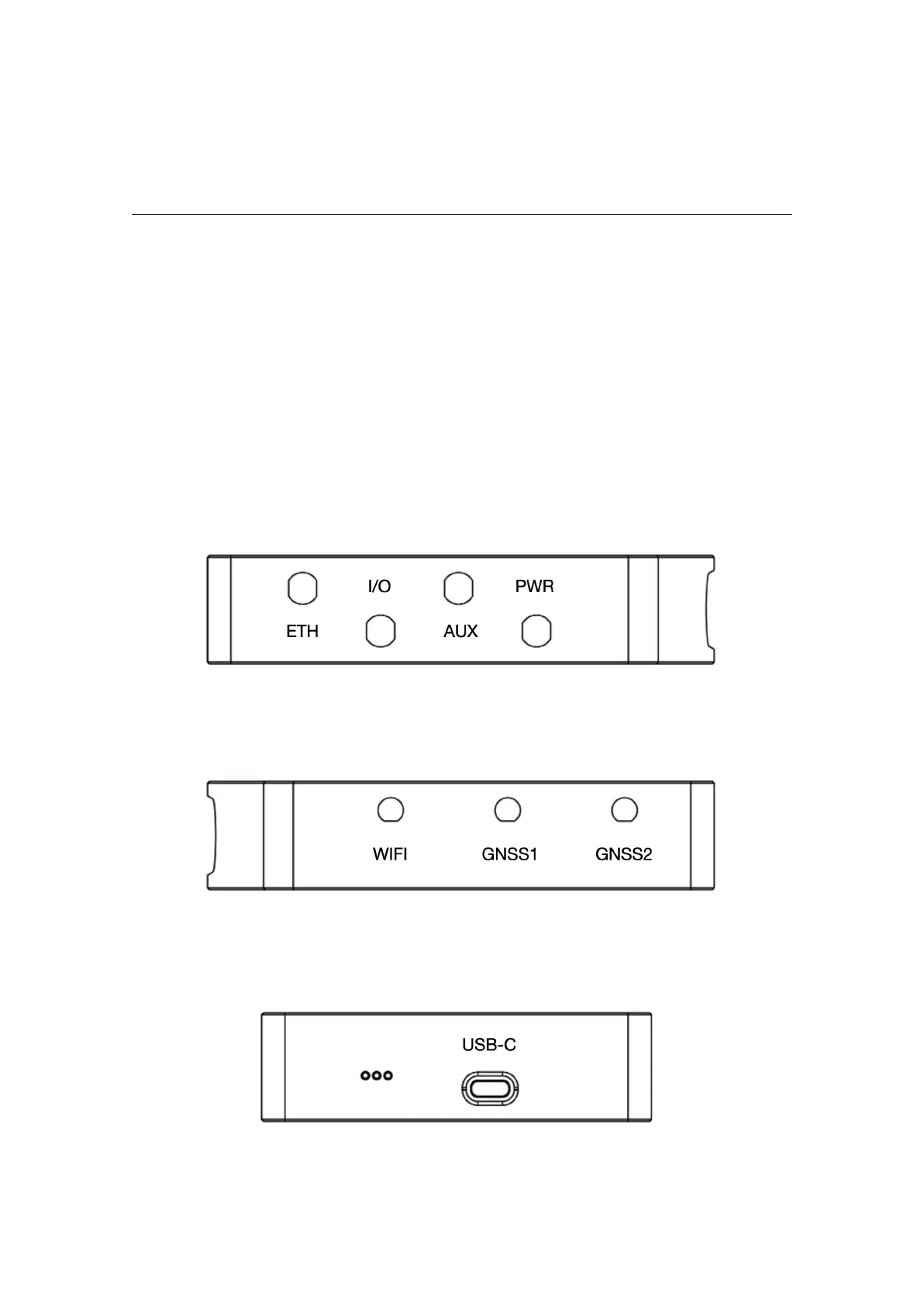

Figure 3.1.: Vision-RTK 2 connectors overview
