6.2. GNSS status dashboard
GNSS Status

Receivers
GNSS 1 GNSS 2
Fix type RTK fixed RTK fixed
Signal levels
Number of signals
47
(15 GPS, 9 GLONASS, 9 BeiDou, 14 Galileo, 0 other)
51
(16 GPS, 11 GLONASS, 10 BeiDou, 14 Galileo, 0
other)
Number of satellites
27
(9 GPS, 5 GLONASS, 5 BeiDou, 7 Galileo, 0 other)
29
(9 GPS, 6 GLONASS, 7 BeiDou, 7 Galileo, 0 other)
Position
47° 24' 0.4216" N 47° 24' 0.4216" N
8° 27' 2.1532" E 8° 27' 2.1701" E
446.68 m 446.70 m
Time and date
2023-03-17 15:12:07 2023-03-17 15:12:07
2253:486745 2253:486745
Antenna state and power OK On OK On

0 0 0 0 0 3 0 10 18 16 0 0
5 10 15 20 25 30 35 40 45 50 55
0 0 0 1 1 1 2 12 15 19 0 0
5 10 15 20 25 30 35 40 45 50 55





Correction data (NTRIP)
Stability Latency Update rate Data rate Message rate
Last 10 seconds Good 0.3 s (max 1.1 s) 1.1 Hz 0.7 KiB/s 7 msgs/s
Last minute Good 0.3 s (max 1.1 s) 1.0 Hz 0.7 KiB/s 6 msgs/s
Last 5 minutes Good 0.3 s (max 2.3 s) 1.0 Hz 0.7 KiB/s 6 msgs/s
Last 15 minutes Good 0.3 s (max 2.3 s) 1.0 Hz 0.7 KiB/s 6 msgs/s
Last 30 minutes Good 0.4 s (max 3.5 s) 1.0 Hz 0.7 KiB/s 6 msgs/s
    
Status Configuration System fp-8f12a8   
8
1
8
3
2
6
4
7
9
5

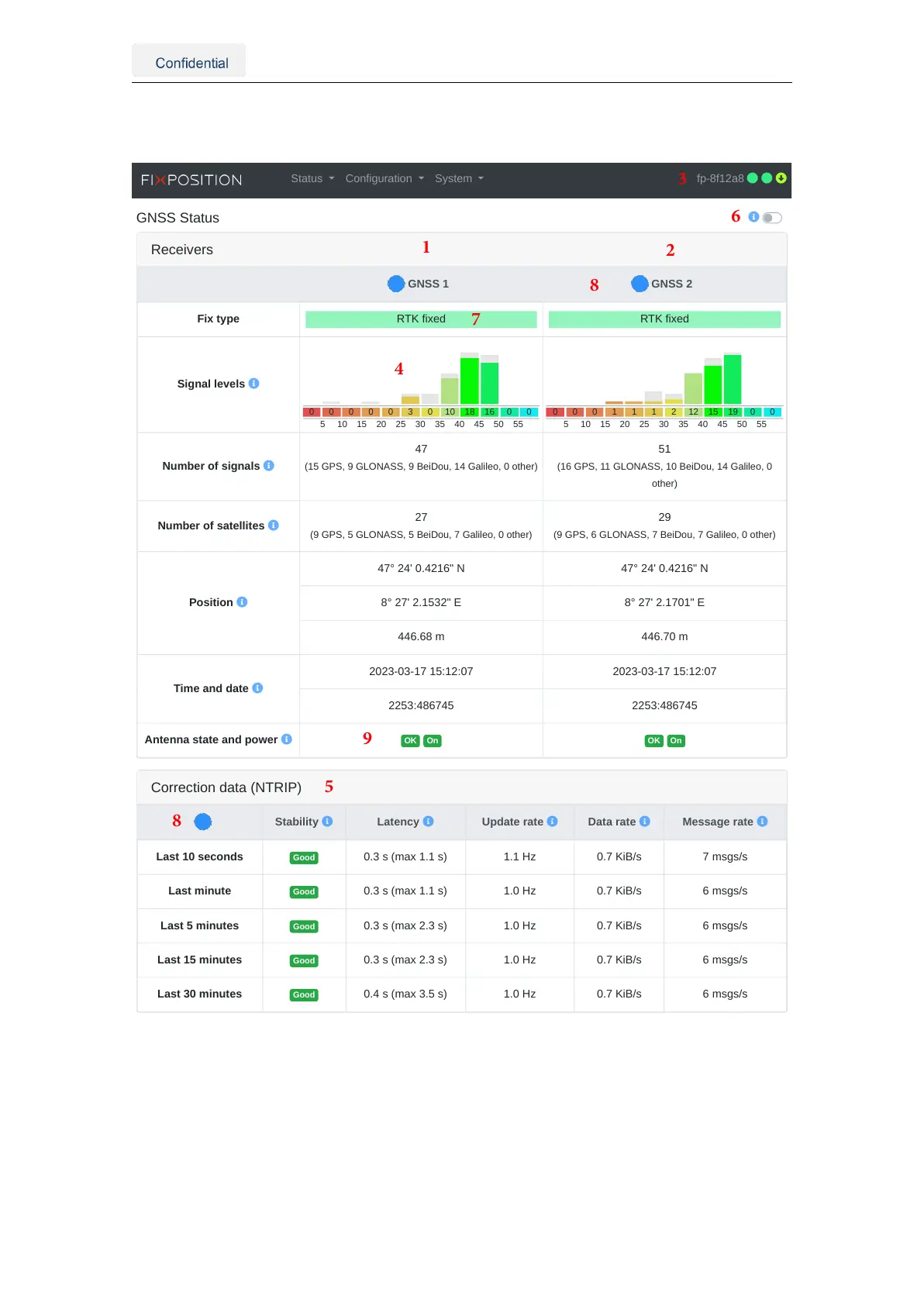

Figure 6.1.: GNSS status dashboard
1. Left column: status of first GNSS receiver.
2. Right column: status of second GNSS receiver.
3. Status flags: these 3 signal light indicate the status of the GNSS and NTRIP mes-
sages
a) GNSS 1: Green - Fixed, Yellow - Float, Orange - Single, Gray - No data.
