FLENDER B3 A Series - Bearing Monitoring; Bearing Monitoring Using a Pt 100 Resistance Thermometer; Figure

Further information
Further information, a detailed illustration of the gear unit and the position of the mounted
components can be found in the dimension drawing in the complete documentation for the
gear unit.
Further information about oil temperature monitoring (such as control instructions) and the
technical data can be found in the operating instructions for the oil temperature monitor and in
the list of equipment in the complete documentation for the gear unit.
3.17 Bearing monitoring
3.17.1 Bearing monitoring using a Pt 100 resistance thermometer
Depending on the order speci󹪝cation, the gear unit can be equipped with Pt 100 resistance
thermometers to monitor the bearings.
You must connect the Pt 100 resistance thermometer to an evaluation unit provided by the
customer to be able to measure temperatures or temperature di󹪜erences. The resistance
thermometer has a connection head for the wiring. A two-wire circuit is provided in the factory.
However, customers can also con󹪝gure a three or four-wire circuit.

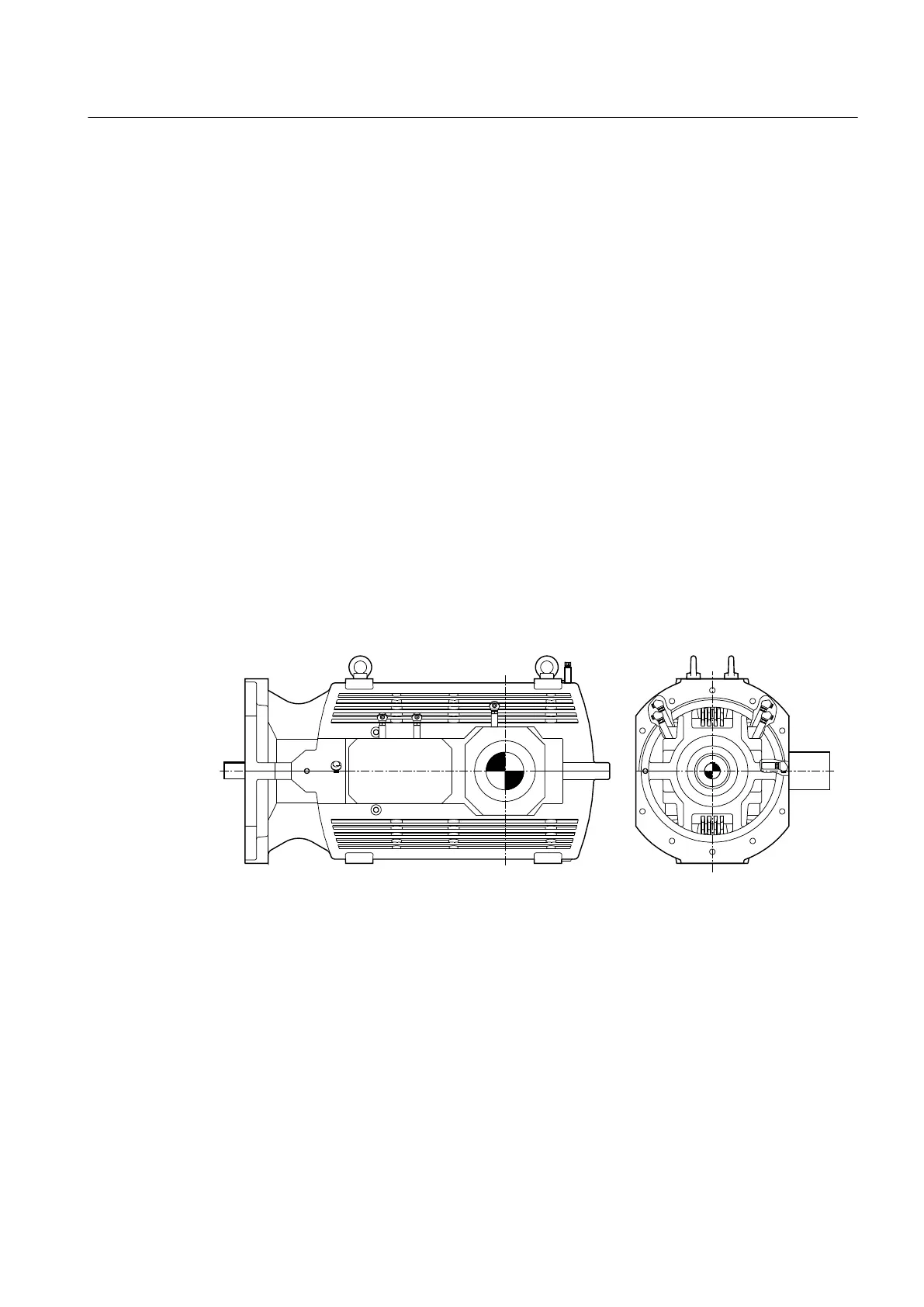

The following diagram shows bearing monitoring using a Pt 100 resistance thermometer:
① Pt 100 resistance thermometer
Figure 3-14 Bearing monitoring using a Pt 100 resistance thermometer:
Further information
Further information, a detailed illustration of the gear unit and the position of the mounted
components can be found in the dimension drawing in the complete documentation for the
gear unit.
Further information about bearing monitoring using a Pt 100 resistance thermometer (such as
control instructions) and the technical data can be found in the operating instructions for the Pt
100 resistance thermometer and in the list of equipment in the complete documentation for the
gear unit.
Description
3.17 Bearing monitoring
Assembly and operating instructions A5051en
Edition 06/2020 41
