Technical data
B
B.1 General technical data
Rating plate
The gear unit rating plate contains the most important technical data.
① Company logo ⑧ Speed n
2
② Serial no.: production plant code/order no.
item ser. no./year of manufacture
⑨ Oil data: Oil type, oil viscosity, oil quantity
③ Total weight in kg ⑩ Numbers of operating instructions
④ For special information ⑪ For special information
⑤ Type, size ⑫ Manufacturer and place of manufacture
⑥ Power rating P
2
in kW or torque T
2
in Nm ⑬ Country of origin
⑦ Speed n
1
⑭ Optional DMC (Data Matrix Code)

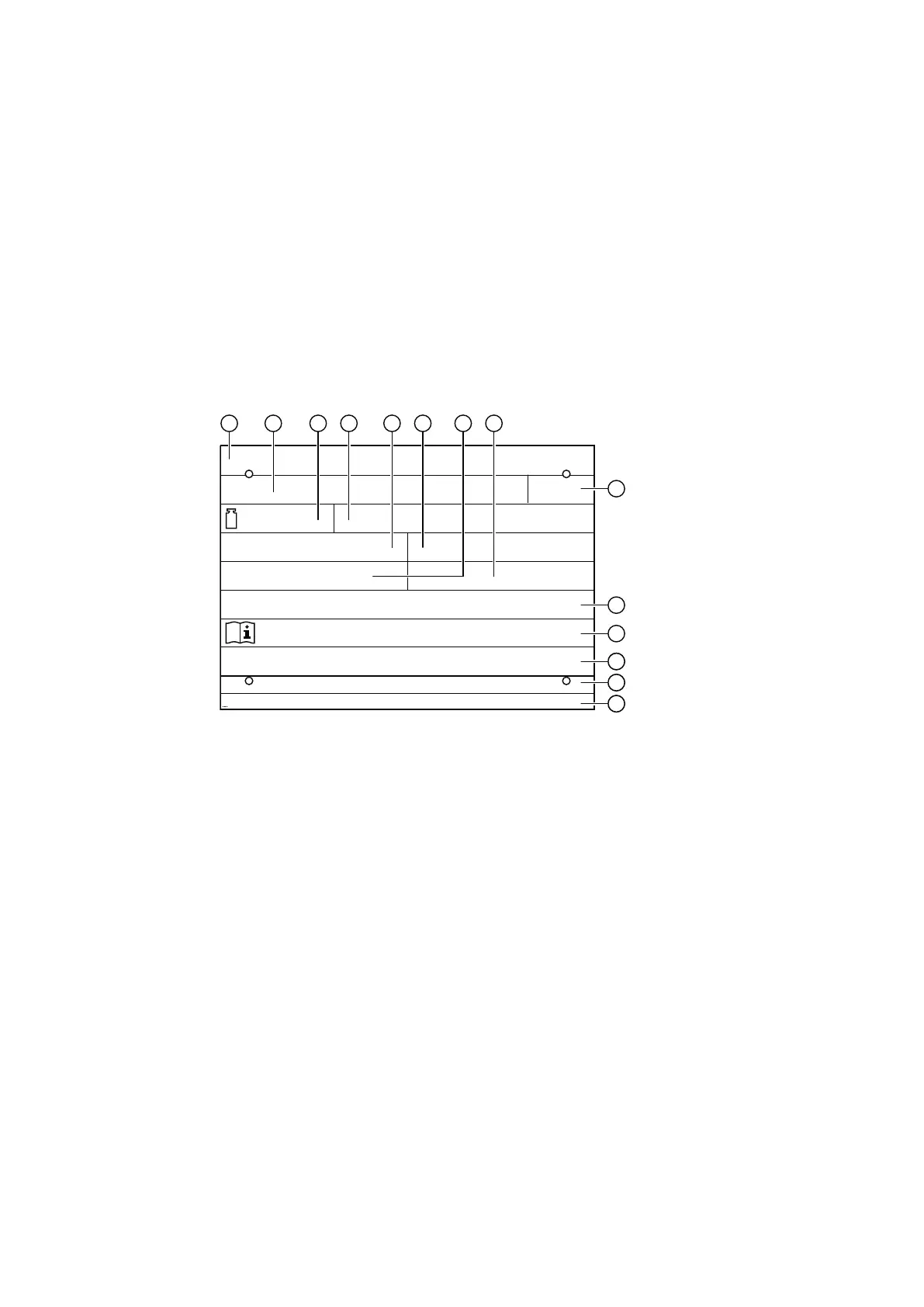

Figure B-1 Rating plate
The limits of the intended use of the gear unit are defined on the basis of these data and the
contractual agreements concerning the gear unit concluded between Flender and the
customer.
Further information
Further information about these technical data can be found in the separate data sheet and the
dimension drawings in the complete documentation for the gear unit.
Further information about all major accessories including their technical data can be found in
the order-specific list of equipment in the complete documentation for the gear unit.
REDUREX Gear unit 5200en
Operating Instructions 03/2019 113
