4.4 Special features relating to gear unit lubrication
4.4.1 Oil filling and oil drain

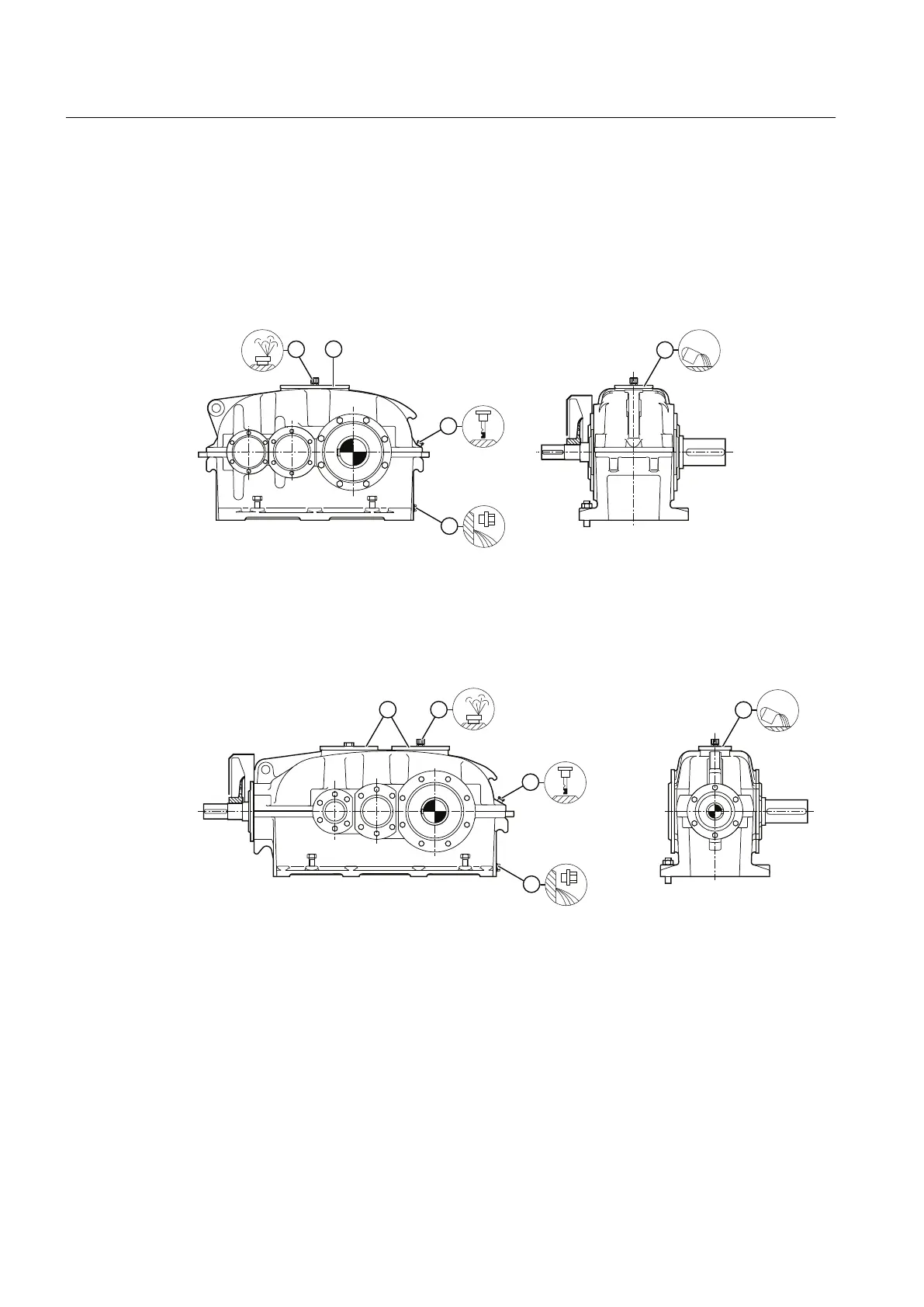

The diagram below shows the oil filling points and the oil draining points on type S.N gear units:
① Housing ventilation and bleeding ④ Oil drain screw
② Inspection and/or assembly cover ⑤ Oil filling point
③ Oil dipstick
Figure 4-7 Oil filling locations and oil drain locations for type S.N gear units
The diagram below shows the oil filling points and the oil draining points on type K.N gear units:
① Inspection and/or assembly cover ④ Oil drain screw
② Housing ventilation and bleeding ⑤ Oil filling point
③ Oil dipstick
Figure 4-8 Oil filling locations and oil drain locations for type K.N gear units
Further information
Additional information and a detailed illustrated description of the gear unit can be found in the
dimension drawing provided in the complete gear unit documentation.
Application planning
4.4 Special features relating to gear unit lubrication
REDUREX Gear unit 5200en
50 Operating Instructions 03/2019
