FLUXUS F808, F809 6 Installation of FLUXUS F808
30 UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23
6.5.1.2 Transducer cable with plastic cable jacket and stripped cable ends
• The transmitter has 1 cable gland for the connection of the transducers.
• Remove the left blind plug for the connection of the transducer cable (see Fig. 6.6).
• Open the cable gland. The compression part remains in the cap nut.
• Push the transducer cable through the cap nut and the compression part.
• Prepare the transducer cable.
• Shorten the external shield and brush it back over the compression part.
• Tighten the gasket ring side of the basic part tightly into the housing of the transmitter
• Insert the transducer cable into the housing.
• Fix the cable gland by screwing the cap nut onto the basic part.
• Connect the transducer cable to the terminals of the transmitter (Fig. 6.6 and Tab. 6.2).
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS).
Attention! For good high frequency shielding, it is important to ensure good electrical contact between the exter-
nal shield and the cap nut (and thus to the housing).

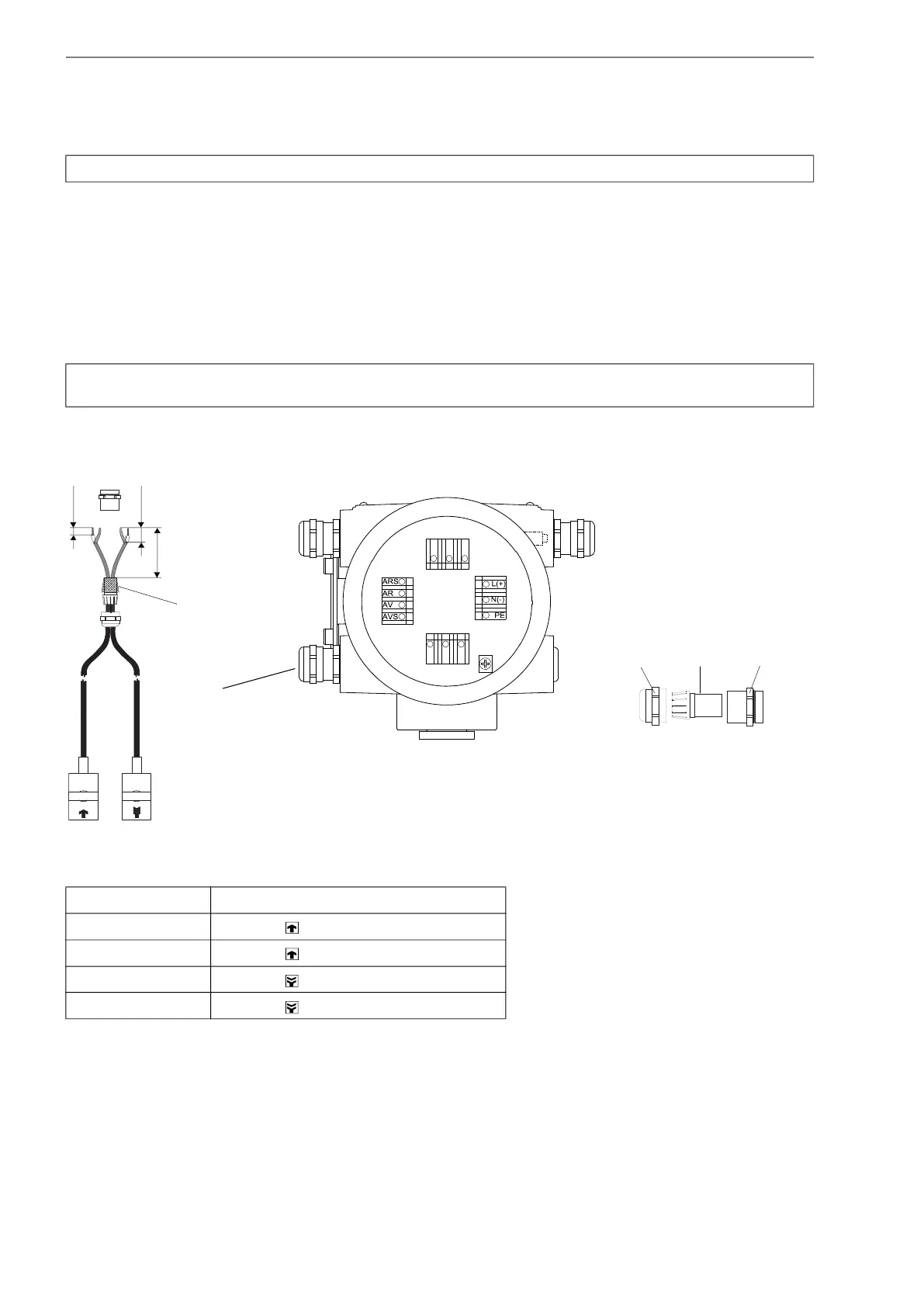

Fig. 6.6: Connection of the transducer cable
Tab. 6.2: Terminal assignment (transmitter, KL4)
terminal connection (transducer cable)
AV transducer (core)
AVS transducer (inner shield)
ARS transducer (inner shield)
AR transducer (core)
transducers
KL1
KL3
KL4 KL2
cable gland
cap nut
compression part basic part
external shield,
brushed back
70 mm
20 mm
10 mm
