6 Installation of FLUXUS F808 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 33
6.5.3.2 Transducer cable with stainless steel conduit and stripped cable ends
• Remove the right blind plug for the connection of the transducer cable (see Fig. 6.10).
• Insert the transducer cable into the junction box.
• Fix the transducer cable by tightening the cable gland.
• Connect the transducer cable to the terminals of the junction box (see Fig. 6.10 and Tab. 6.5).
Attention! Observe the "Safety instructions for the use in explosive atmospheres" (see document SIFLUXUS).

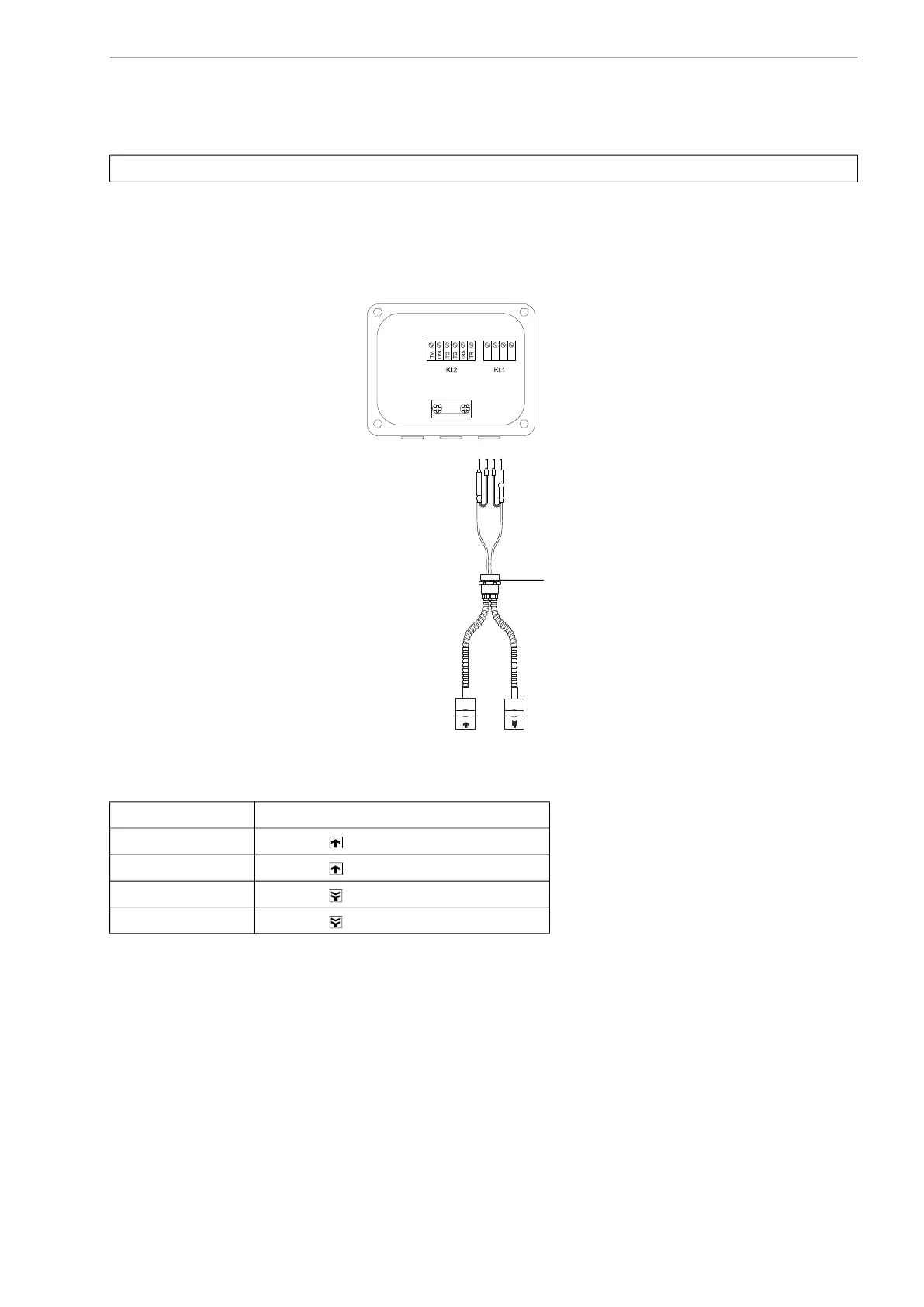

Fig. 6.10: Transducer cable with stainless steel conduit and stripped cable ends
Tab. 6.5: Terminal assignment (junction box, KL1)
terminal connection (transducer cable)
V transducer (brown cable, marked white)
VS transducer (red cable)
RS transducer (red cable)
R transducer (brown cable)
V
VS
R
RS
cable gland
