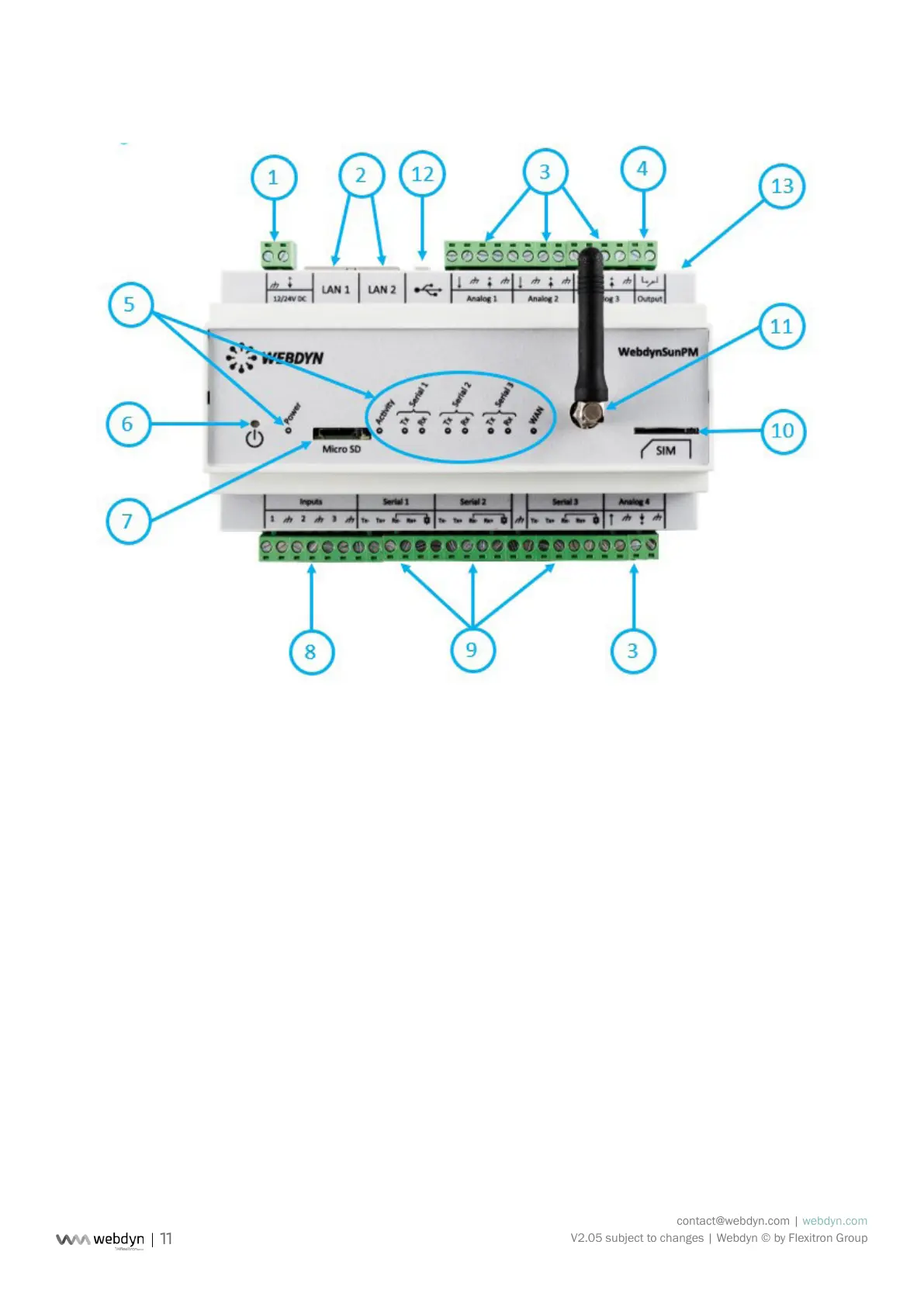

1.3 The Interfaces
1. 12-24 V power supply terminal block
2. 2x Ethernet ports (LAN 1 and LAN 2)
3. 4x 0-10 V or 4-20 mA analog inputs
4. 1x Relay output (24V/1A)
5. Indicators:
• Power: 12-24 V power supply status
• Activity: Product status
• Serial1, Serial2, Serial3:
• Tx: Data sent on the RS485/RS422 serial port
• Rx: Data received on the RS485/RS422 serial port
• WAN: Connection status
6. Power button
7. Micro SD card slot
