2.3 Assembly
2.3.1 Opening/Closing the Box
Users must not open the product.
The WebdynSunPM must be returned to after sales for all work (sav@webdyn.com).
2.3.2 Wall Mounting
The WebdynSunPM is designed to be xed onto a DIN rail.
Follow the steps below to x the concentrator to a DIN rail:

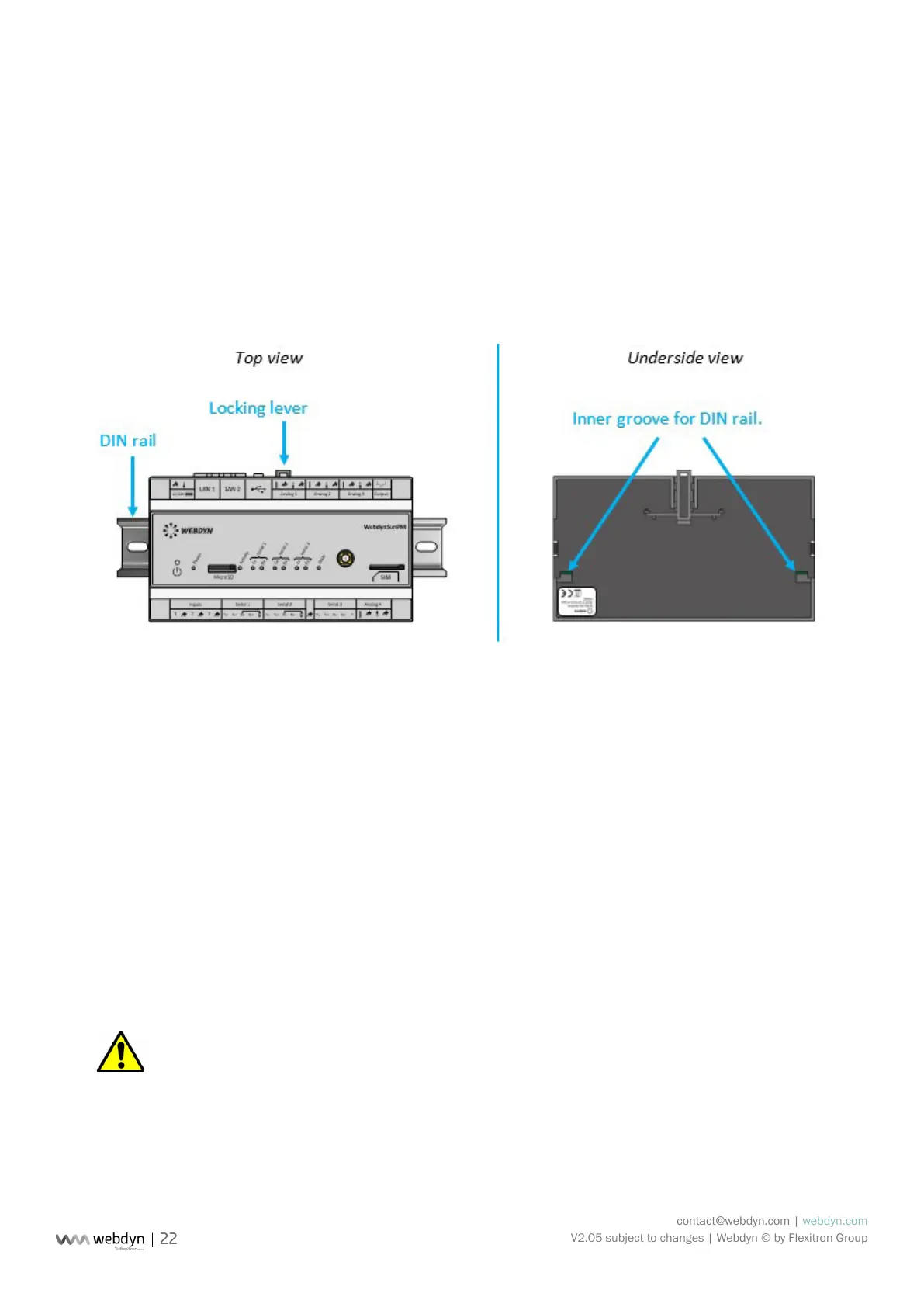

• Tilt and position the concentrator’s lower grooves (see underside view) onto the bottom of the
DIN rail.
• Push the concentrator to pivot it upwards.
• Push on the concentrator until it clicks into place.
Follow the steps below to remove the concentrator from a DIN rail:
• Raise the locking lever (see top view) on the concentrator to be removed to the high position.
This opens the locking mechanism and makes it possible to remove the concentrator.
• Pivot the concentrator downwards.
Before xing or removing the concentrator, make sure:
• To cut the power supply to the equipment.
• Remove the antenna taped to the back of the box.
