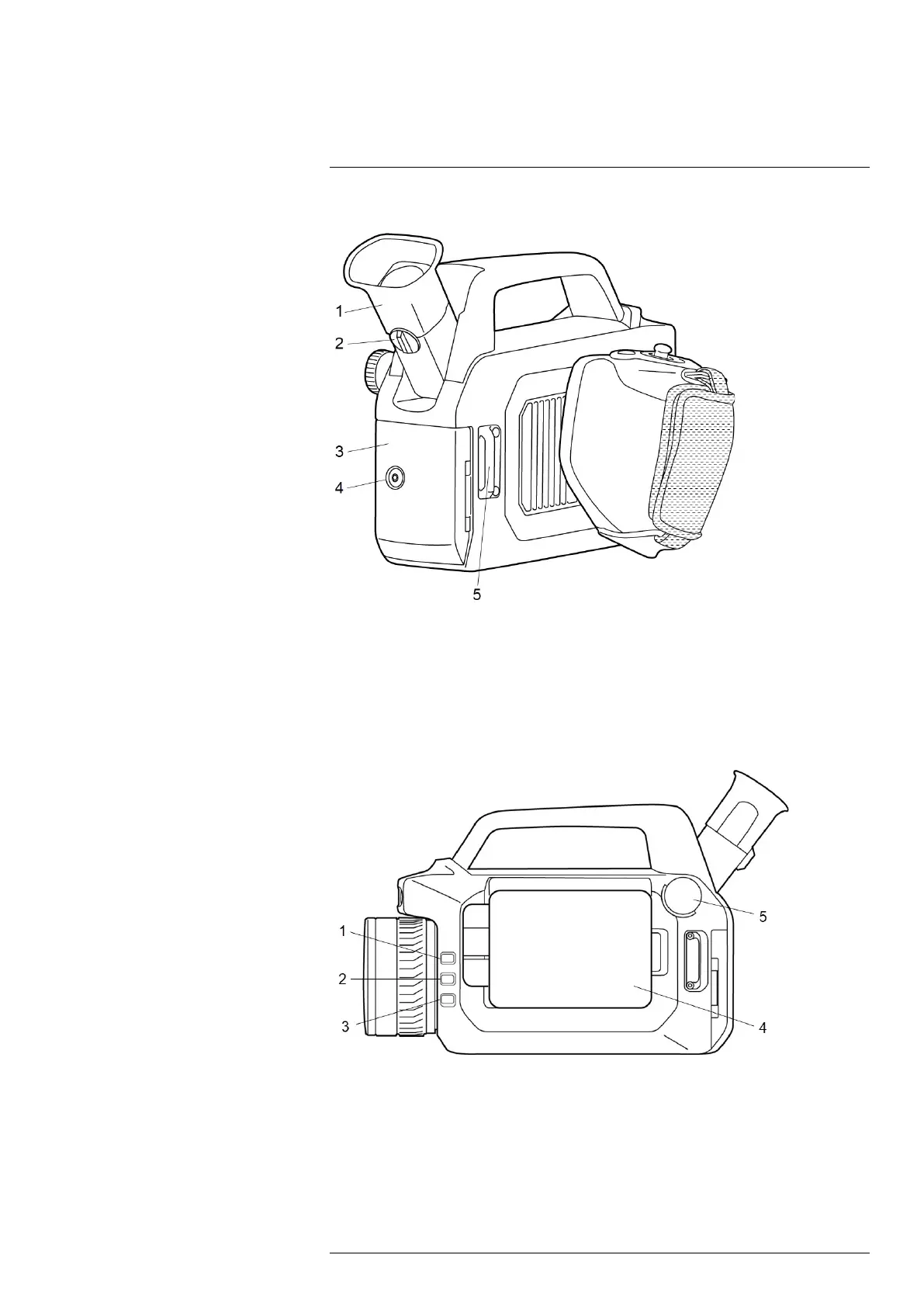

Camera
parts
4
4.2
View
from
the
rear
1.
Viewfinder
2.
Diopter
adjustment
knob
3.
Cov
er
for
the
connector
and
batter
y
compartment
4.
Locking
screw
(T
orx
T20)
5.
Attachment
point
for
the
neck
strap
4.3
View
from
the
left
1.
Laser
button
2.
Programmable
button
3.
T
emperature
range
button
4.
Displa
y
5.
Mode
wheel
#T810605;
r.
AD/92464/92464;
en-US
7
12
14
Table of Contents
Table of Contents
2
Notice to User
7
Safety Information
7
Register Your Camera
7
Online Documentation
7
About this Manual
7
Support
7
Training
8
Introduction
9
Benefits
9
Getting Started
10
Safety Information
10
Start the Camera
10
Unlock the Camera
10
Get Unlock Code
10
Enter Unlock Code in Camera
11
Detect a Gas Leak
11
Measure a Temperature
11
Camera Parts
12
View from the Front
12
View from the Rear
13
View from the Left
13
Connector and Battery Compartment
14
Serial Number
14
Laser Pointer
15
User Interface
16
Screen Elements
16
General
16
Status Icons and Indicators
16
Mode Selection Menu
17
Navigation
17
Main Toolbar
18
Navigation
18
Quick Menu
19
Navigation
19
Image Overlay
20
Basic Operation
21
Safety Information
21
Battery
21
Install the Battery
21
Remove the Battery
22
Battery Indicator
22
Battery Charging
23
Battery Indicator - Charging
23
Charge the Battery Using the Battery Charger
23
Charge the Battery in the Camera
23
Power On/Off
24
Power on
24
Power off
24
Display
25
Viewfinder
26
Ergonomics
27
Focus
28
Manual Focus
28
Autofocus
28
Temperature Range
29
Mode Wheel
30
Save and Record
31
Save an Image
31
Record a Video
31
Zoom
32
Programmable Buttons
33
Laser Pointer
34
File Transfer
34
Transfer Files Via USB Cable
34
Camera Lamps
35
Knob Screw
35
Change the Lenses
36
Thermal Imaging Basics
39
Focus
39
Adjust Focus
39
Temperature Range
39
Change the Temperature Range
40
Thermal Image Adjustment
40
Manual Mode
40
Manual Adjustment by Touching the Screen
41
Manual Adjustment Using the Joystick
42
Auto Adjustment Region
42
Color Palettes
43
Change the Color Palette
43
Detecting a Gas Leak
44
Basic Steps to Gas Detection
44
Adjust the Camera Focus
44
Delta T
44
High Sensitivity Mode (HSM)
44
Using HSM
45
Adjust the Temperature Scale
45
Change the Color Palette
45
Change the Temperature Range
45
Quantification
47
Introduction
47
Field Equipment
47
User Interface
47
Quantification Parameters
47
Type of Measurement
48
Flow Rate Unit
48
Perform a Quantification Measurement
48
Main Steps
49
Select a Measurement Position
49
Place the Camera
49
Enter Quantification Mode
49
Set the Quantification Parameters
49
Ensure Minimum Delta Temperature
49
Start the Measurement
50
Quantification Results
50
Transfer Quantification Results
50
Practical Information
50
Measurement Position
50
Measure Ambient Temperature
51
Assessing Delta Temperature
51
Camera Temperature Range
52
Field of View and Focus
52
Leak Rate Versus Concentration
52
Method Limits
52
Measuring Temperatures
54
Basic Steps to Temperature Measurements
54
Measurement Tools
54
Add and Remove a Tool
54
Edit a User Preset
54
Move and Resize a Tool
55
Display Values in the Result Table
56
Display a Graph
56
Set up a Difference Calculation
56
Set up a Measurement Alarm
57
Temperature Range
58
Adjust the Temperature Scale
58
Measurement Parameters
58
Types of Parameters
58
Recommended Values
59
Set the Measurement Parameters
59
Color Alarms and Isotherms
60
Set up a Color Alarm
61
Working with Images
62
Save an Image
62
Preview an Image
62
Annotate an Image
62
Text Comment Table
63
Voice Annotation
65
About Image Files
65
File-Naming Convention
65
Image Files
65
Recording
66
Record a Video
66
Periodic Saving (Time-Lapse)
66
Multi-Rec
66
Set up Recording
66
Start Recording
67
Gallery - Video and Image Archive
68
Open the Gallery
68
Open Video and Image Files
68
Edit an Image
68
Add a Folder
69
Rename a Folder
69
Change the Active Folder
69
Move Files between Folders
69
Upload Files and Folders
70
Delete Files and Folders
70
Delete Folders
70
Delete a File
70
Delete Multiple Files
70
Delete All Files
70
Wireless Connectivity
71
Wi-Fi
71
Connect the Camera to Wi-Fi
71
Set up the Camera as a Wireless Access Point
71
Bluetooth
71
Pair Bluetooth Devices
71
Cloud Connectivity
72
Setup
72
Create FLIR Ignite Account
72
Connect Camera to Internet
72
Pair with FLIR Ignite
72
Automatic Upload
72
Manual Upload
73
Access FLIR Ignite
73
Camera Web Interface
73
Connect the Camera to the Local Network
73
Open the Camera Web Interface
74
Download Files
74
Inspection Route
75
General
75
FLIR Inspection Route Solution User Manual
75
User Interface
75
Drop-Down Menu
76
Inspection List
76
Performing an Inspection
77
Preparation
77
Capturing Inspection Data
78
Editing Inspection Point Data
79
Saving an Image
79
Recording a Video Clip
79
Viewing and Editing Inspection Images
79
Inspection List
80
Adding an Inspection Point
80
Transferring Inspection Results
80
Configuration
81
Creating an Inspection Route
82
Creating an Inspection Route in the Camera
82
Manually Editing an XML File
82
Camera Settings
84
FLIR Ignite
84
Connections
84
Multi-Rec Settings
84
Camera Temperature Range
84
Save Options & Storage
84
Device Settings
85
Maintenance and Cleaning
87
General Check
87
Clean the Camera
87
Camera Housing, Cables, and Other Items
87
Infrared Lens
87
Infrared Detector
88
Cooler Maintenance
88
General
88
Signs to Watch for
88
Camera Calibration
88
Updating the Camera
90
Update the Camera Online
90
