Basic
operation
6
6.2.2

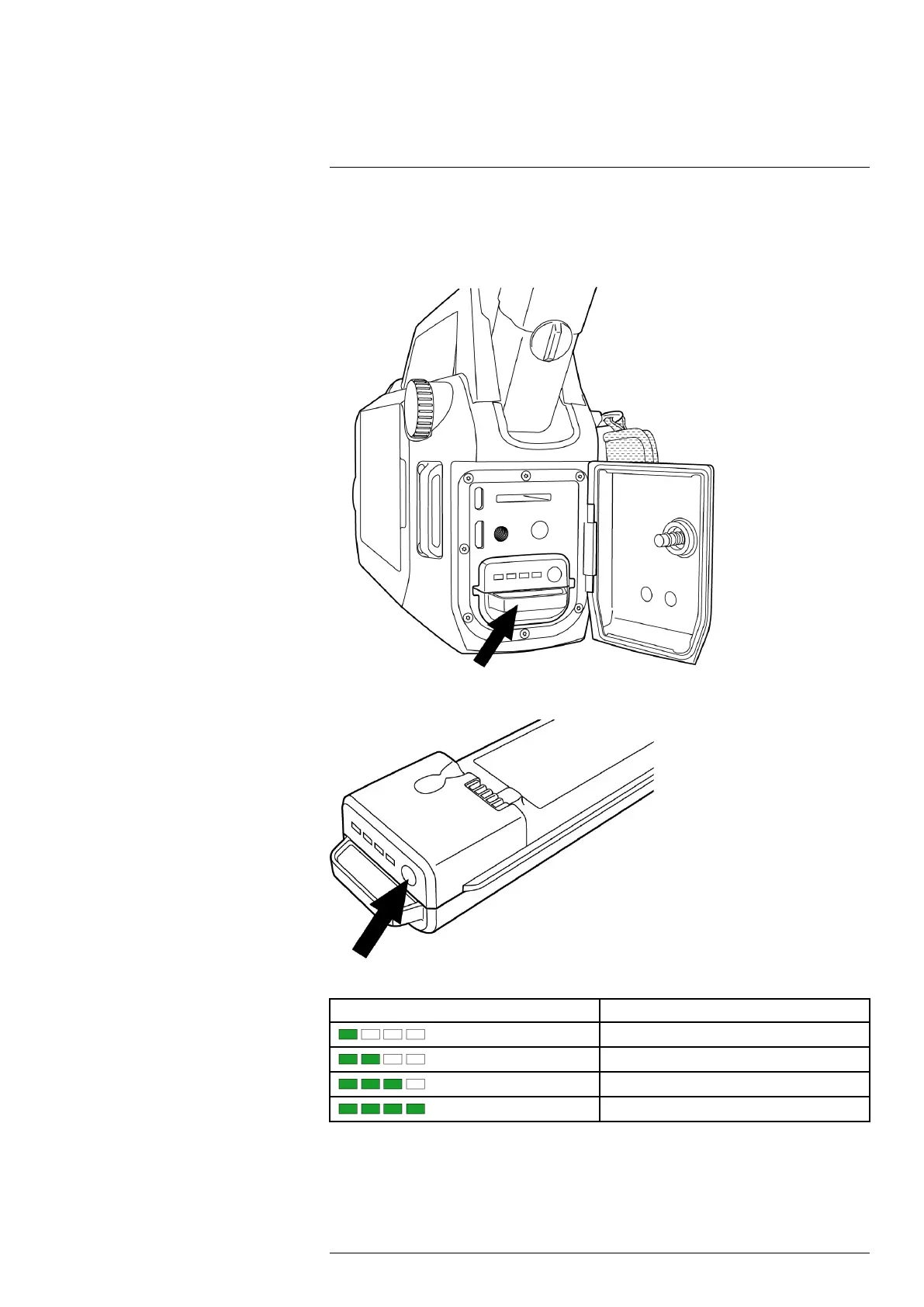

Remove
the
batter
y
1.
P
ower
off
the
camera.
2.
Open
the
cov
er
at
the
rear
of
the
camera.
3.
Use
the
handle
to
pull
out
the
battery
.
6.2.3
Battery
indicator
T
o
check
the
battery
level,
push
the
button.
The
lights
indicate
the
battery
level.
Indicator
lights
Battery
level
below
10%
up
to
60%
up
to
90%
above
90%
See
also
section
6.3.1
Battery
indicator
—
charging
.
#T810605;
r.
AD/92464/92464;
en-US
16
21
23
