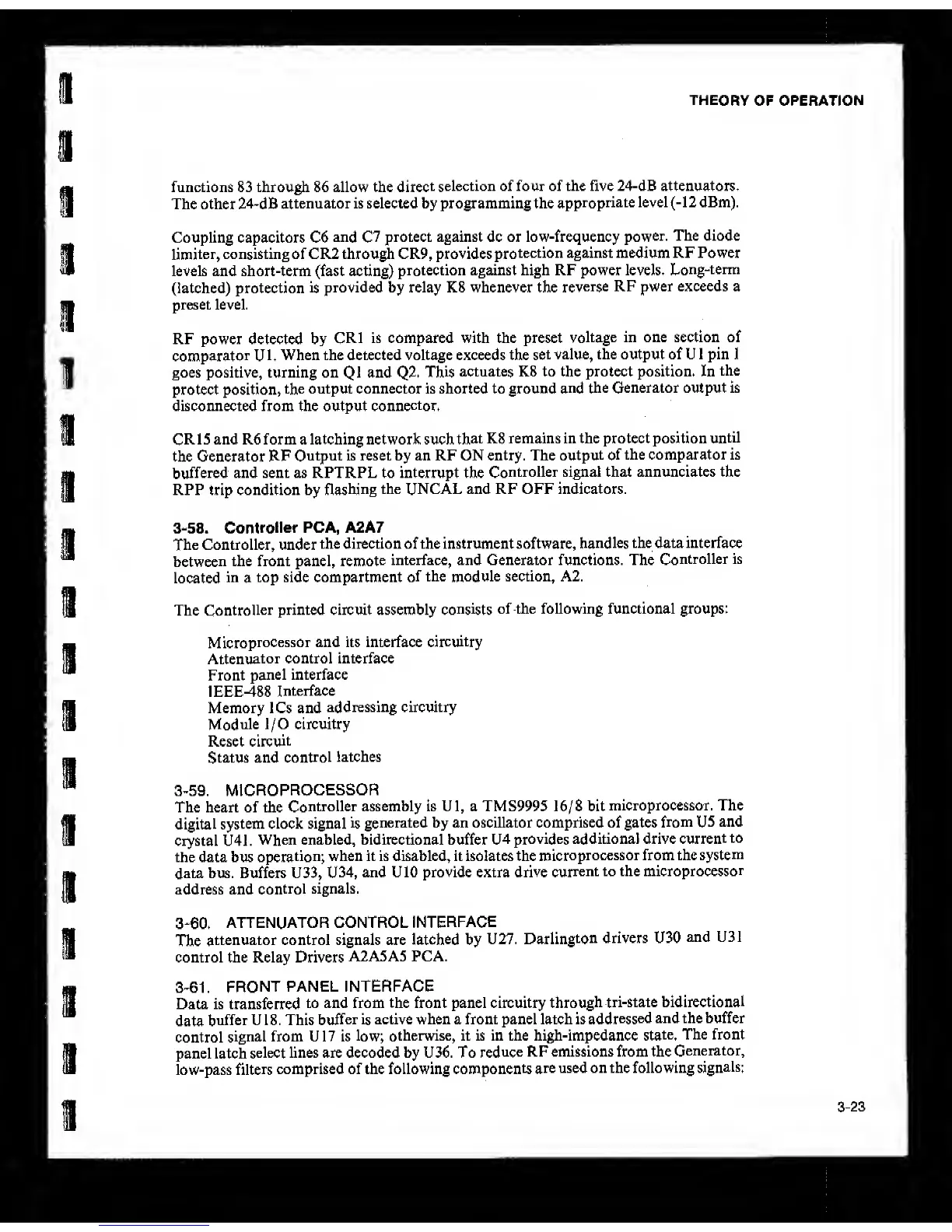

THEORY
OF OPERATION
functions 83 through 86 allow the
direct
selection of four of the five 24-dB attenuators.
The other 24-dB
attenuator is selected by programming the
appropriate level (-12 dBm).
Coupling capacitors C6
and
C7
protect against dc or low-frequency
power.
The diode
limiter,
consisting of CR2 through CR9, provides
protection against medium RF Power
levels and short-term (fast acting)
protection against high RF power levels.
Long-term
(latched) protection
is
provided by relay K8 whenever the
reverse
RF pwer exceeds a
preset level.
RF power detected by
CRl is compared with the preset
voltage
in one section of
comparator Ul.
When the delected voltage exceeds the
set
value, the output of U1 pin 1
goes positive, turning on Ql and
Q2.
This
actuates K8 to the protect position. In
the
protect position,
the output connector is shorted to ground
and
the Generator output is
disconnected from the output
connector.
CR
1 5 and R6 form a latching network such
that
K8 remains in the protect position
until
the Generator RF
Output is reset by an RF ON entry. The
output of
the comparator is
buffered and sent as RPTRPL to interrupt the
Controller signal that annunciates the
RPP trip condition by
flashing
the UNCAL and RF OFF indicators.
3-58. Controller
PCA, A2A7
The Controller, under
the direction of the instrument software,
handles
the data interface
between
the front panel,
remote
interface, and Generator functions. The
Controller is
located
in
a
top side compartment
of
the module section, A2.
The
Controller
printed circuit assembly
consists
of the following functional groups:
Microprocessor and its interface
circuitry
Attenuator
control interface
Front
panel interface
IEEE-488
Interface
Memory ICs and
addressing circuitry
Module
I/O circuitry
Reset
circuit
Status and
control
latches
3-59. MICROPROCESSOR
The heart of the
Controller assembly is Ul, a TMS9995
16/8
bit
microprocessor. The
digital
system clock signal
is
generated by an oscillator comprised of gates
from
U5
and
crystal U41 .
When enabled, bidirectional buffer U4
provides additional drive
current
to
the data bus
operation;
when it is disabled, it isolates the
microprocessor from the
system
data bus. Buffers U33, U34,
and UlO provide extra drive
current to the
microprocessor
address and
control
signals.
3-60. ATTENUATOR CONTROL
INTERFACE
The
attenuator control signals are
latched
by
U27.
Darlington
drivers U30
and U31
control the Relay Drivers
A2A5A5 PCA.
3-61. FRONT
PANEL INTERFACE
Data is transferred
to and from the front panel circuitry
through
tri-state
bidirectional
data
buffer U 18. This
buffer is
active when a front panel latch is
addressed
and the buffer
control
signal from U17 is
low;
otherwise, it is in the high-impedance
state.
The front
panel latch
select lines are decoded by U36. To
reduce
RF emissions from the
Generator,
low-pass
filters
comprised of the following
components
are used on the following
signals:
3-23
