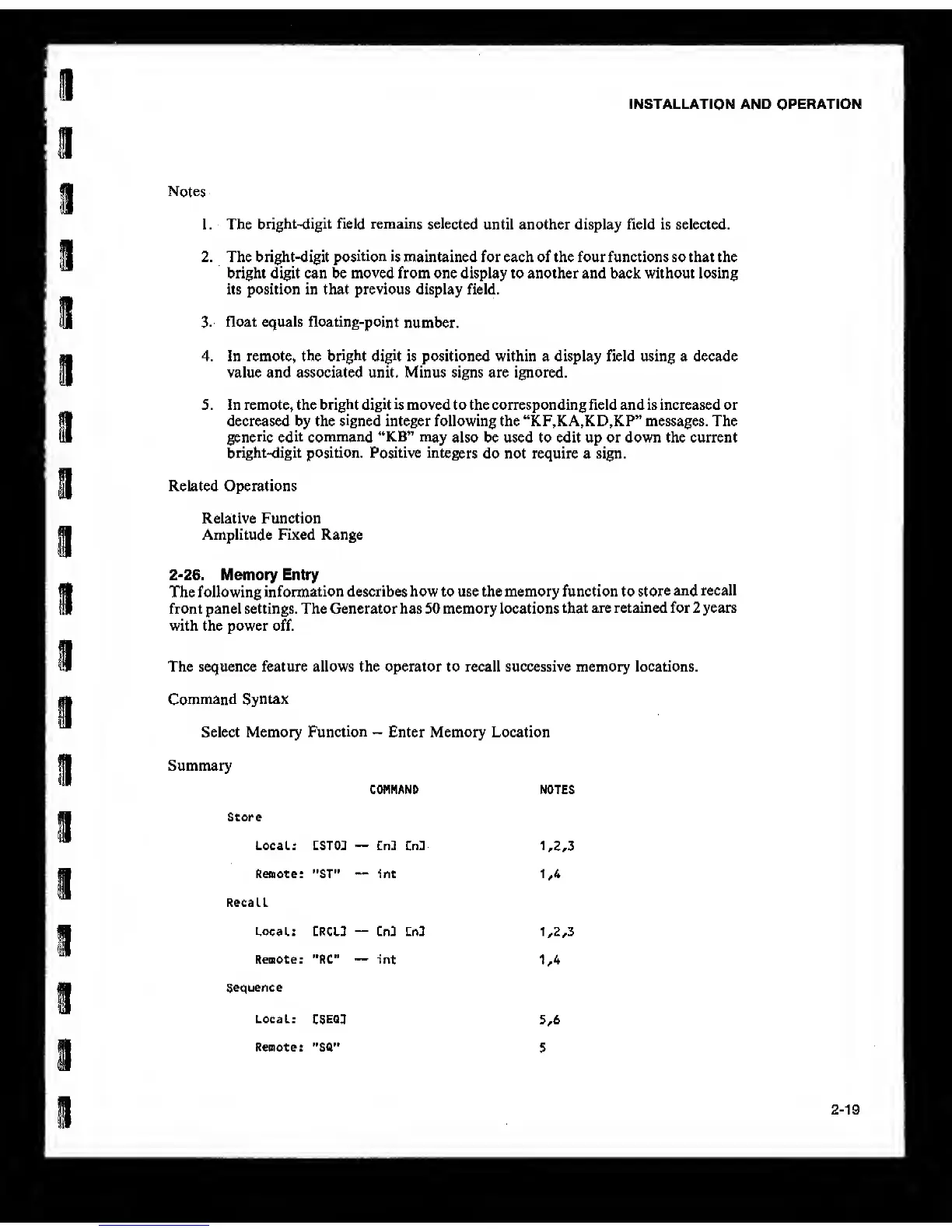

INSTALLATION AND OPERATION
Notes
1. The
bright-digit field remains
selected
until another display field is selected.
2. The bright-digit
position
is maintained for each of the four functions so that the
bright digit can be moved from one display to another and back without losing
its position in that previous display field.
3. float equals floating-point
number.
4. !n remote, the
bright digit
is positioned within a display field using a decade
value and associated unit. Minus signs are ignored.
5. In remote, the
bright
digit
is
moved to the corresponding field and is increased or
decreased by the
signed
integer following the “KF,KA,KD,KP” messages. The
generic edit command
*‘KB”
may
also be used to edit up or down the current
bright*digit position. Positive
integers
do not require a sign.
Related Operations
Relative Function
Amplitude Fixed Range
2-26.
Memory Entry
The following
information
describes how to use the memory function to
store
and recall
front panel settings. The Generator has 50 memory locations
that
are retained for
2
years
with the power off.
The sequence feature allows the operator to recall successive memory locations.
Command
Syntax
Select Memory
Function
-
Enter Memory Location
Summary
COMMAND NOTES
Store
Local : LST03
—
EnD
En3
1,2,3
Remote: "ST" int
1,4
Recall
Local: ERCL3
—
Cn3 Lnl
1,2,3
Remote: "RC"
—
int
1,4
sequence
Local:
CSEQ3
5,6
Remote: "SO"
5
2-19
