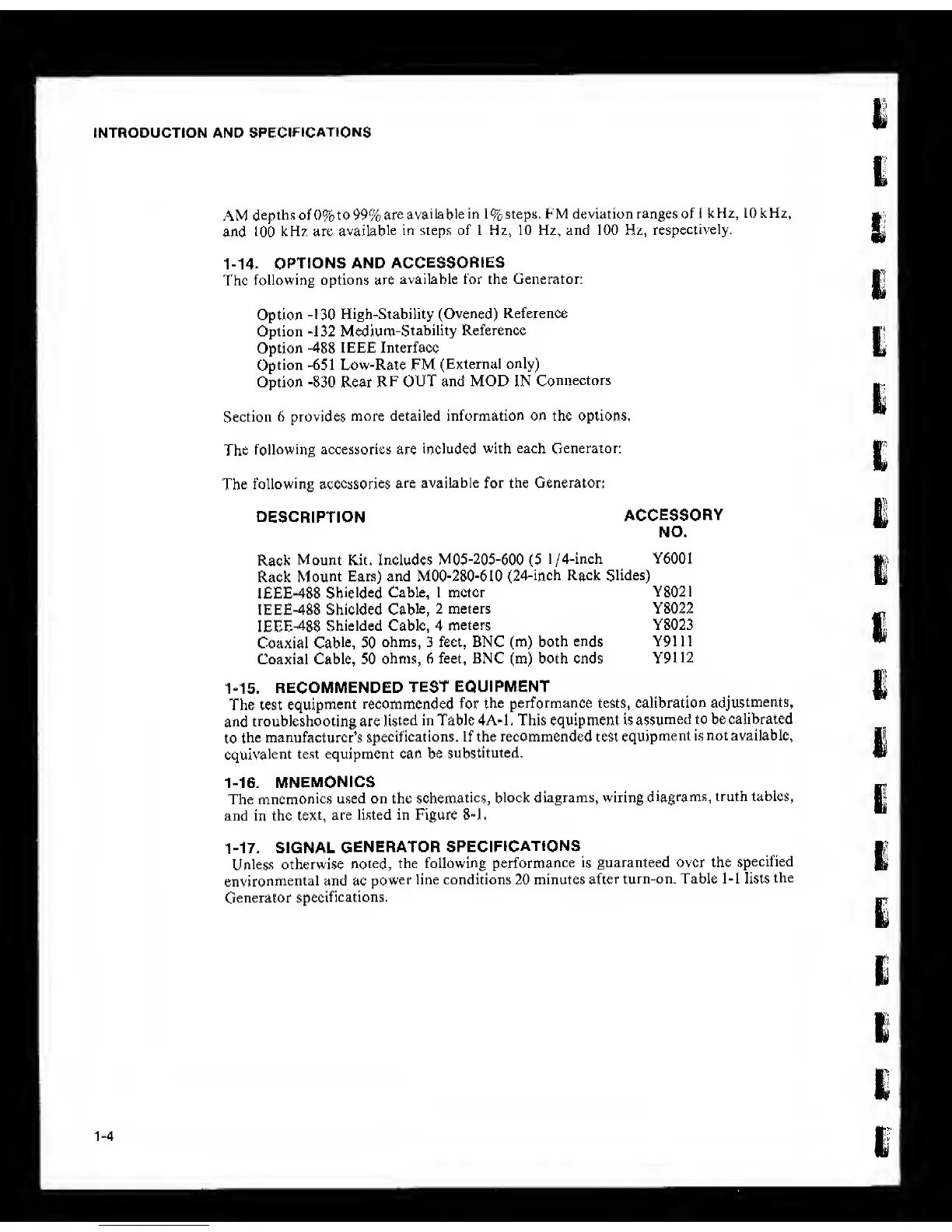

INTRODUCTION AND
SPECIFICATIONS
AM
depths of()% to
99%
are
available in
1%
steps. FM deviation ranges of I
kHz,
10
kHz,
and
100
kHz are
available
in steps of 1 Hz, 10 Hz, and 100 Hz,
respectively.
1-14. OPTIONS AND
ACCESSORIES
The
following options are
available for the Generator:
Option
-1
30
High-Stability (Ovened)
Reference
Option
-132 Mediurn-Stability Reference
Option
-488 IEEE Interface
Option
-651
Low-Rate FM
(External only)
Option
-830
Rear RF
OUT and MOD IN
Connectors
Section
6
provides
more detailed information on the options.
The
following accessories are
included
with each Generator:
The
following accessories
are
available for the Generator:
DESCRIPTION
ACCESSORY
NO.
Rack
Mount K.it. Includes M05-205-600
(5
I/4-inch Y6001
Rack
Mount
Ears) and MOO-280-610
(24-inch
Rack Slides)
IEEE-488
Shielded
Cable, 1 meter
Y8021
IEEE-488 Shielded
Cable,
2 meters Y8022
IEEE-488
Shielded Cable, 4
meters Y8023
Coaxial
Cable,
50
ohms, 3 feel, BNC (m)
both ends
Y91 1
1
Coaxial Cable, 50
ohms,
6 feet, BNC (m) both ends Y91
12
1-15.
RECOMMENDED
TEST
EQUIPMENT
The test
equipment recommended for
the performance tests, calibration
adjustments,
and
troubleshooting are
listed
in Table 4A-1. This equipment is
assumed
to be calibrated
to
the manufacturer’s
specifications. If the recommended test
equipment
is
not available,
equivalent
te.st equipment can be
substituted.
1-16. MNEMONICS
The
mnemonics
used on the
schematics,
block diagrams, wiring
diagrams, truth tables,
and
in
the
text,
are iLsted in Figure
8-1.
1-17.
SIGNAL
GENERATOR
SPECIFICATIONS
Unless
otherwise
noted,
the following
performance is
guaranteed over the
specified
environmental and ac
power
line conditions 20 minutes
after
turn-on. Table l-I lists
the
Generator
specifications.
1-4
