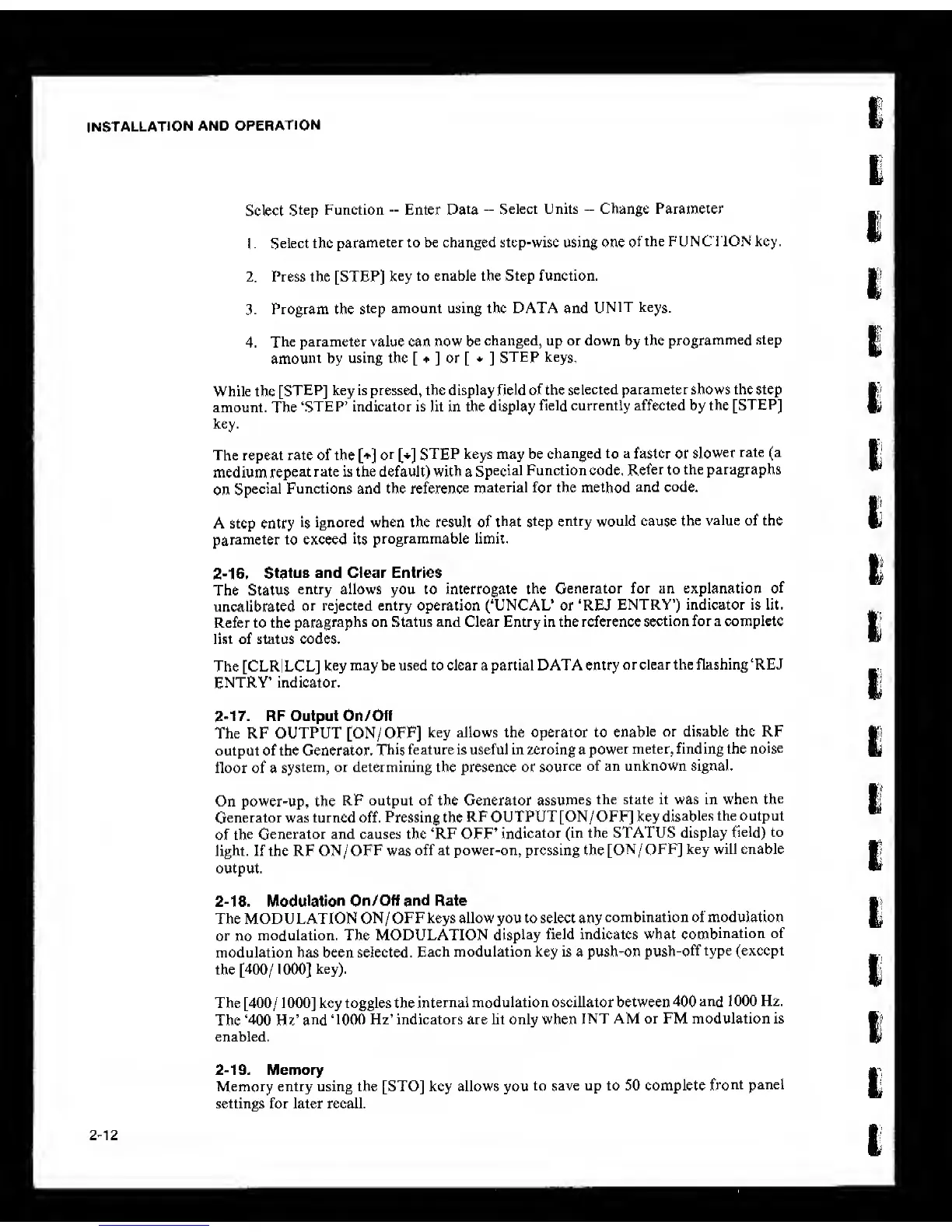

INSTALLATION
AND
OPERATION
Select
Step Function
-
Enter
Data
--
Select Units
-
Change Parameter
1
.
Select the
parameter to be changed step-wise using one
of’the FUNC I ION key.
2. Press the [STEP]
key to
enable the Step function.
3. Program the
step amount using the DATA and
UNIT
keys.
4.
The parameter value can now
be
changed, up or down by the
programmed
step
amount
by
using the
[ ]
or
[
+
]
STEP
keys.
While the
[STEP]
key is pressed, the display field of
the selected parameter shows the step
amount. The
‘STEP’ indicator is lit in the
display
field currently affected by the
[STEP]
key.
The repeat rate of the
[+]
or
[+]
STEP keys may be
changed
to a faster or
slower
rate (a
medium
repeat
rale is the default) with a
Special Function code.
Refer to the paragraphs
on
Special Functions and the reference
material
for
the method
and code.
A step entry
is
ignored
when the result of
that
step entry
would
cause
the value of the
parameter to exceed
its
programmable limit.
2-16.
Status
and Clear
Entries
The Status
entry allows you to interrogate
the
Generator for an explanation
of
uncalibrated
or
rejected entry operation (‘UNCAL’ or ‘REJ
ENTRY’) indicator is lit.
Refer to the
paragraphs on Status and Clear Entry in the reference
section for a complete
list of Status codes.
The [CLRILCL]
key
may be used to dear a partial DATA entry
or clear the flashing ‘REJ
ENTRY’ indicator.
2-17.
RF Output On/Off
The RF OUTPUT [ON/ OFF]
key allows the operator to
enable
or disable the RF
output of the Generator.
This
feature is useful in zeroing a
power
meter, finding the
noise
floor of a
system, or determining the presence or
source
of an unknown signal
On power-up, the
RF output of the Generator
assumes
the state it was in when
the
Generator was turned off. Pressing the
RF OUTPUT [ON/ OFF] key
disables
the output
of
the
Generator and causes the ‘RF OFF’
indicator (in the STATUS display
field) to
light. If the RF ON/
OFF was
off at power-on, pressing the
[ON/
OFF] key will enable
output.
2-18. Modulation
On/Off and Rate
The MODULATION
ON/
OFF keys allow you to select any
combination of modulation
or no
modulation. The MODULATION
display
field indicates what
combination of
modulation has been selected.
Each
modulation key is a push-on
push-off
type (except
the
[400/
1000]
key).
The
[400/1000]
key toggles the
internal
modulation oscillator between
400
and 1000 Hz.
The
‘400
Hz’
and
‘1000
Hz’ indicators are lit only when
INT AM or FM modulation is
enabled.
2-12
2-19.
Memory
Memory entry using the [STO] key allows you
to
save up to 50 complete
front
panel
settings for later recall
