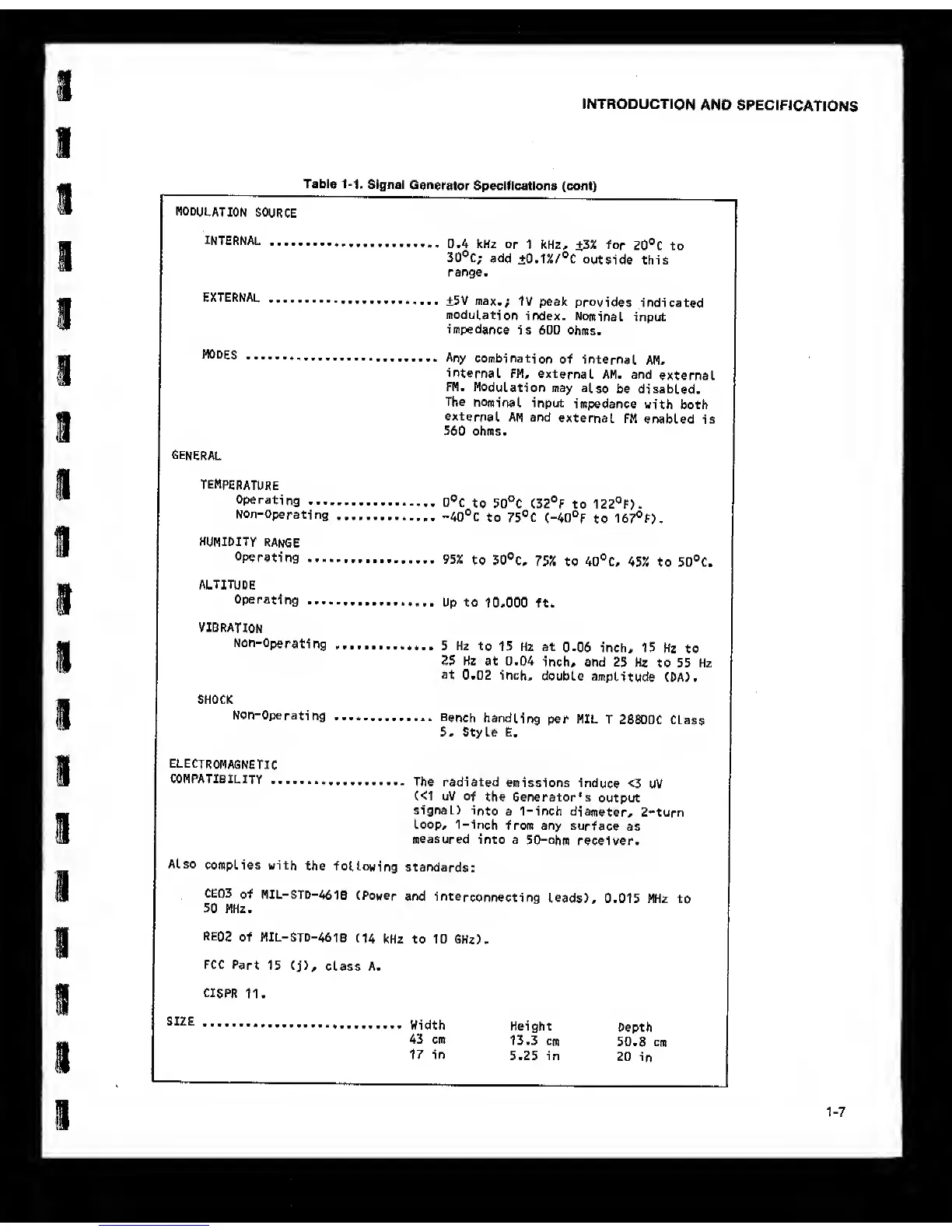

INTRODUCTION
AND
SPECIFICATIONS
Table 1-1.
Signal
Generator
Specifications (cont)
MODULATION
SOURCE
INTERNAL
0.4 kHz
or
1 kHz,
+3^
for
20°C to
add
+0.1%/®C
outside
this
range.
EXTERNAL
±5V max.;
IV peak
provides
indicated
modulation
index.
Nominal
input
impedance
is 600
ohms.
*
Any
combination
of internal
AM,
internal
FH,
external
AM. and
external
FM.
Modulation
may
also
be
disabled.
The
nominal
input
impedance
with both
external
AM and
external FM
enabled is
560 ohms.
GENERAL
TEMPERATURE
Operating
0®C
to 50°C
C32®F
to
122°F).
Non-Operating
-40®C
to 75®C
<-40°F
to 167®F).
HUMIDITY
RANGE
95%
to S0«C,
75% to 4U«'C,
45% to 50°C.
ALTITUDE
Operating
Up to
10,000 ft.
VIBRATION
Non-Operating
5 Hz
to
15 Hz at
0-06
inch, 15
Hz to
25 Hz at 0.04
inch, and
25
Hz to 55 Hz
at
0.02 inch,
double
amplitude
(DA).
SHOCK
Non-Operating
Bench
handling
per MIL
T 2 8800C Class
5, Style E.
ELECTROMAGNETIC
COMPATIBILITY
The radiated
emissions
induce <3
uV
(<1
uV
of
the Generator's
output
signal)
into
a 1-inch
diameter,
2-turn
Loop,
1-inch
from any
surface
as
measured
into a
SO-ohm
receiver.
Also
complies with
the
following
standards;
CE03
of MIL-STD-461B
(Power
and
interconnecting
leads),
0.015 MHz
to
SO MHz.
RE02
of MIL-STD-461B
(14
kHz to 10
GHz).
FCC
Part
15 Cj),
class A-
ClSPR
11.
Width
Height
Depth
43 cm
13.3
cm
50.8
cm
17 in
5.25 in
20
in
1-7
