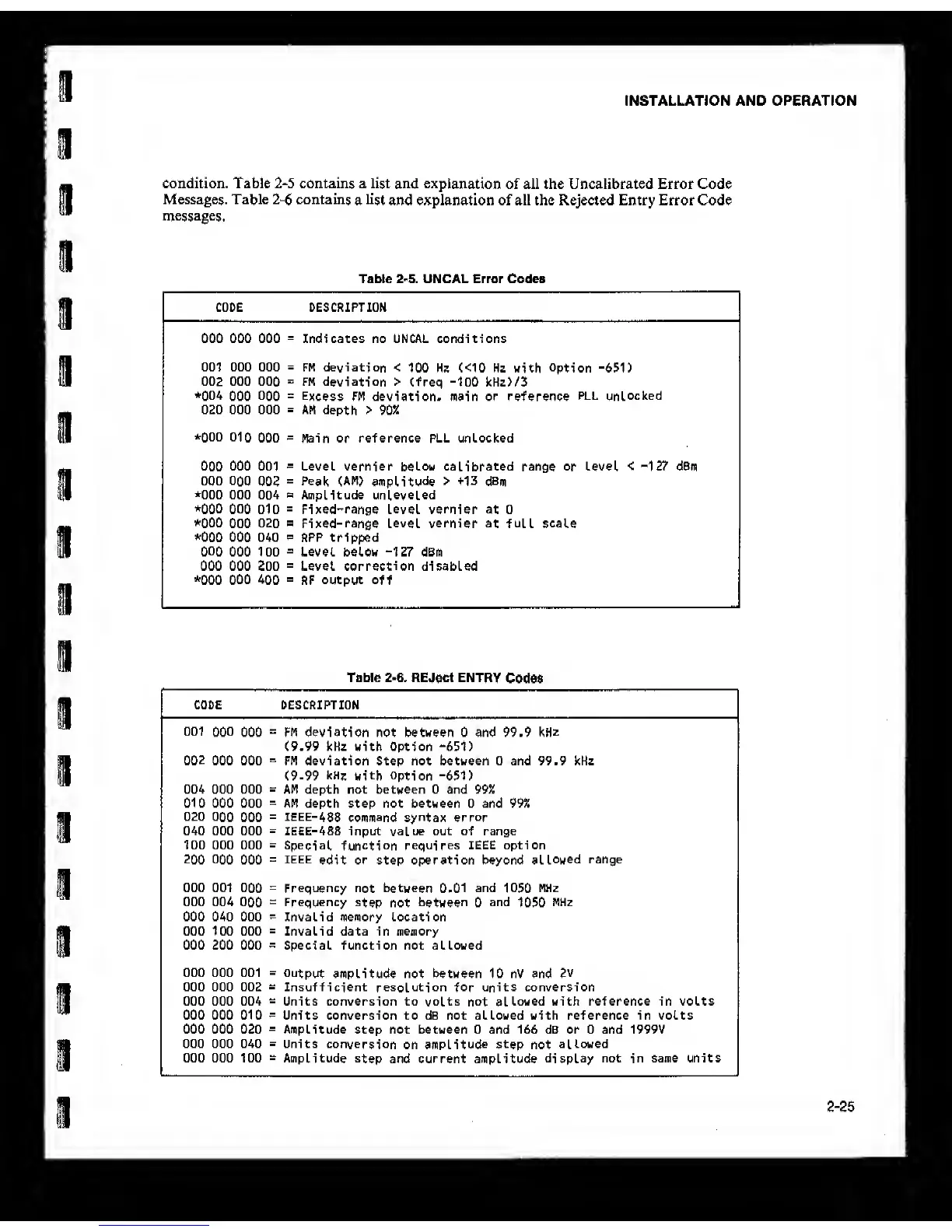

INSTALLATION AND OPERATION
I
condition. Table
2-5
contains a list
and explanation
of all the Uncalibrated Error Code
Messages. Table
2-6
contains
a
list
and explanation of all the Rejected Entry Error Code
messages.
Table
2-5.
UNCAL Error Codes
CODE DESCRIPTION
000 000 000
=
Indicates no UNCAL conditions
001 000 000
s
FM deviation
<
100 Hz
<<10
Hz with
Option
-651)
002 000 000
=
FM
deviation >
Cfreq
-100
kHz)/3
*004
000
000
=
Excess
FM deviation, main or reference
PLL unlocked
020 000 000
-
AM
depth > 90%
*000
010
000
=
Main or reference PLL unlocked
000 000 001
=
Level vernier below calibrated range or Level
< -127
dBm
000
000
002
=
Peak
(AM)
amplitude
>
+13 dBm
*000
000 004
=
Amplitude unleveled
*000
000 010
s
Fixed-range level vernier at 0
*000
000
020
s
Fixed-range Level vernier at full scale
*000
000 040
s
RPP tripped
000 000
100
s
Level
below
-127
dBm
000 000 200
s
Level correction
disabled
*000
000
400
RF output off
Table
2-6.
REJect ENTRY
Codes
CODE DESCRIPTION
001
000
000 FM deviation not between 0 and 99.9
kHz
<9.99 kHz with Option
-651)
002
000 000
—
FM deviation Step not between 0 and 99.9 kHz
<9-99
kHz
with Option
-651)
004 000 000
-
AM depth not between 0 and 99%
010 000 000
-
AM depth step not between 0 and 99%
020
000
000
=
IEEE-488
command syntax error
040 000 000
-
IEEE-488 input value out of range
100 000 000
-
Special function
requires IEEE option
200 000
000
—
IEEE
edit or step operation beyond
allowed
range
000 001
000
=
Frequency
not between 0-01
and
1050
MHz
000 004
ooo
=
Frequency
step
not
between
0
and
1050
MHz
000 040 000
-
Invalid memory location
000 100 000
=
Invalid data in memory
000 200 000
Si
Special function not allowed
000 000 001
s
Output
amplitude not between 10 nV and
2V
000 000 002
-
Insufficient resolution
for
units conversion
000 000 004 Units conversion to volts
not
allowed with reference in volts
000 000 010
-
Units conversion to dB not allowed with reference in volts
000 000 020
-
Amplitude step not between 0 and 166 dB or 0 and 1999V
000 000 040
-
Units
conversion
on
amplitude step
not
allowed
000 000 100
s
Amplitude
step
and current amplitude
display
not
in
Same units
2-25
