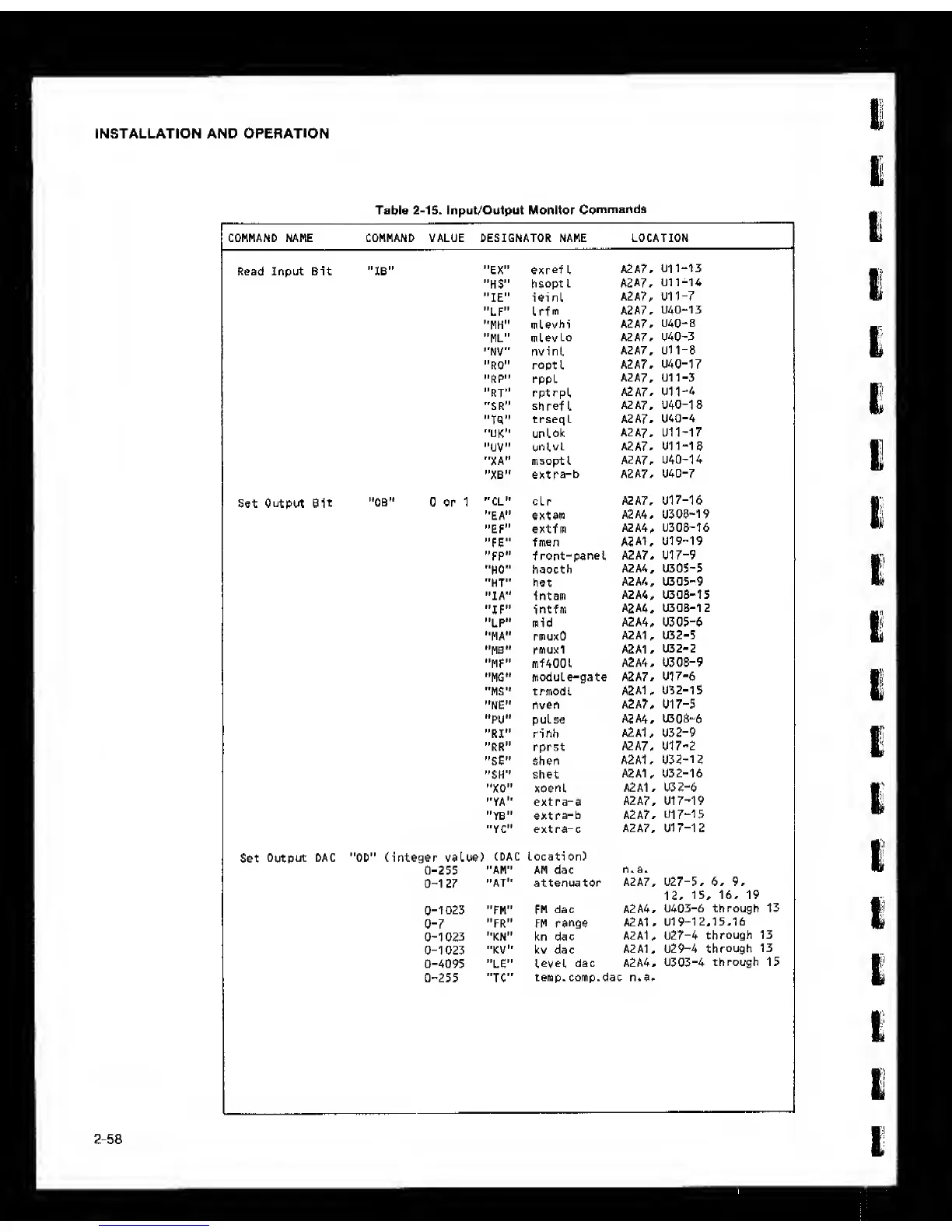

COMMAND NAME COMMAND VALUE DESIGNATOR NAME LOCATION
Read Input Bit "IB"
"EX"
exref
A2A7,
U11-13
"HS"
hsopt
A2A7,
U11-14
"IE" ieinL
A2A7, U11-7
"LF" Lrf
m A2A7,
U40-13
"MH"
mLevhi
A2A7,
U40-B
"ML"
mLevLo
A2A7, U40-3
"NV"
nvinl.
A2A7, U11-8
"RO" ropt L
A2A7, U40-17
"RP"
rppL
A2A7, U11-3
"RT" rptrpL
A2A7, U11-4
"SR" sh ref L
A2A7, U40-18
"TQ"
trseqL
A2A7,
U40-4
"UK" unLok
A2A7, U11-17
"UV"
unlvL
A2A7,
U11-1B
"XA"
msoptl
A2A7, U40-14
"XB"
extra-b
A2A7,
U40-7
Set Output Bit
"OB"
0 or 1
"CL" cLr
A2A7, U17-16
"EA"
extam
A2A4, U308-19
"EF" extf
m
A2A4, U308-16
"FE"
fmen
A2A1,
U19-19
front-panel
A2A7, U17-9
"HO"
haocth
A2A4, U30S-5
"HT" het
A2A4, U305-9
"lA" intam
A2A4, U308-1S
"IF"
intfm
A2A4, U308-12
"LP" mid
A2A4, U305-6
"MA" rmuxO
A2A1, U32-5
"MB"
rmuxi A2A1,
U32-2
"MF" mf400L
A2A4. U308-9
"MG"
module-gate A2A7,
U17-6
"MS" trmodl
A2A1
,
U32-15
"NE" nven
A2A7, U17-5
"PU" pulse
A2A4, U30S-6
"RI" rinh
A2A1, U32-9
"RR" rprst
A2A7. U17-2
"SE" shen
A2A1, U32-12
"SH"
shet
A2A1, U32-16
"XO"
xoenl
A2A1, U32-6
"YA" extra-a
A2A7, U17-19
•*YB"
extra-b
A2A7,
U17-15
"YC" extra-c
A2A7, U17-12
Set
Output DAC "OD" (integer value)
(DAC Locati On)
0-255 "AM" AM dac
n.a.
0-1
27
"AT" attenuator
A2A7, U27-5, 6, 9,
12,
15,
16, 19
0-1023
"FM"
FM
dac A2A4,
U403-6 through 13
0-7
"FR" FM
range
A2A1, U19-12,15.16
0-1023 "KN" kn dac
A2A1, U27-4
through
13
0-1023 "KV" kv dac
A2A1, U29-4
through
13
0-4095
"LE"
level
dac A2A4,
U303-4 through 15
0-255
"TC"
temp. comp. dac n.a.
