Fluke 8840A User Manual

Introduction and Specifications I
SPECIFICATIONS I

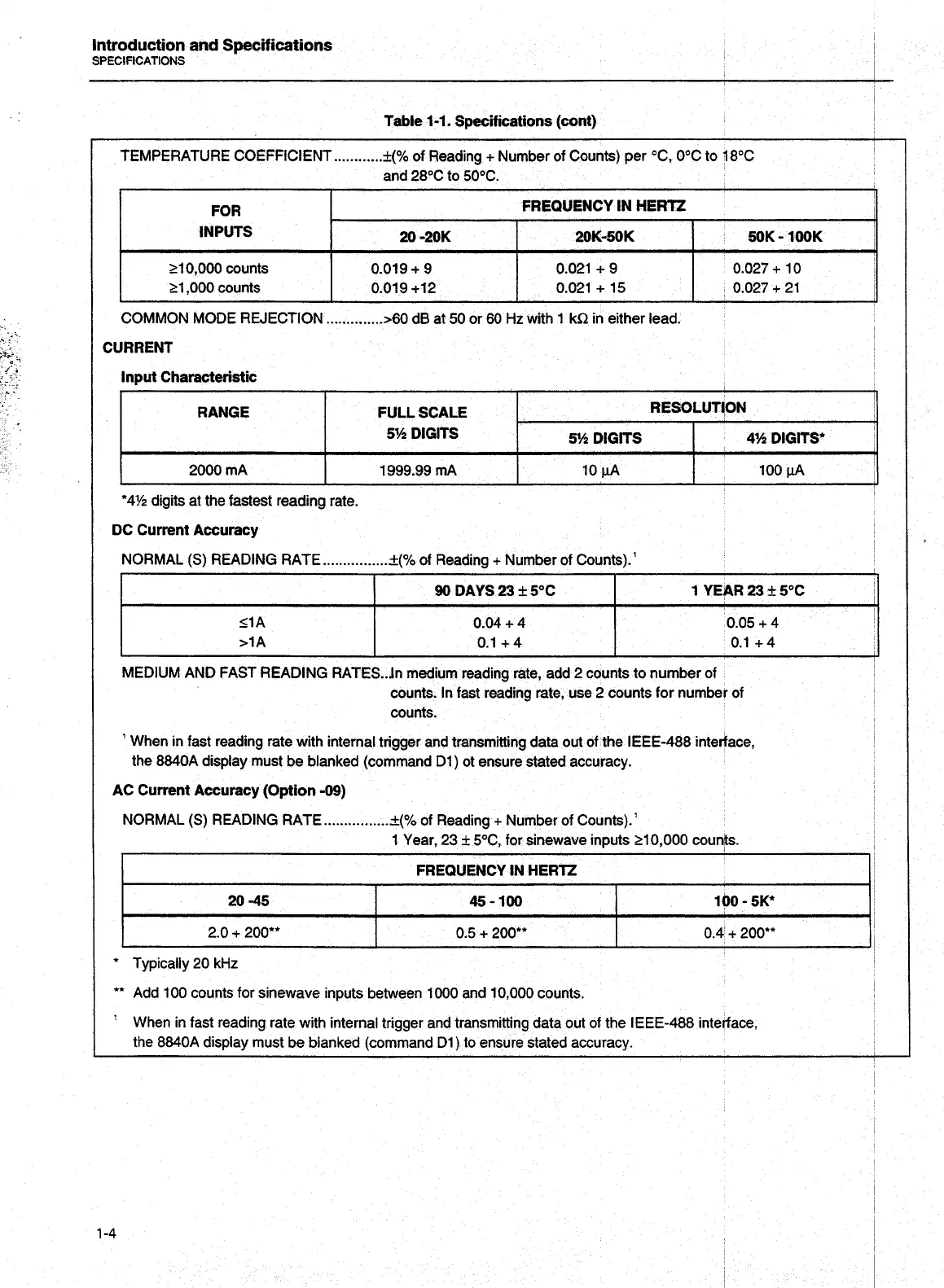

Table 1-1. Specifications (cont)
TEMPERATURE COEFFICIENT ............ +(% of Reading + Number of Counts) per "C, 0°C to 18°C
I
and 28°C to 50°C.
FOR FREQUENCY IN HERTZ I
INPUTS 20 -20K 20K-50K 50K - 100K
I
21 0,000 counts 0.019 + 9
0.021
+ 9 0.027 + 10
21 ,000 counts
0.019 +12 0.021
+ 15 0.027 + 21
L
COMMON MODE REJECTION .............. >60 dB at 50 or 60 Hz with 1 kQ in either lead.
CURRENT
Input Characteristic
I
RANGE FULL SCALE RESOLUTION 1
5% DIGITS 5% DIGITS 4% DIGITS*
i.
2000 mA 1999.99 mA 10 PA 100 pA
-
*4% digits at the fastest reading rate.
DC Current Accuracy
NORMAL (S) READING RATE ................ +(% of Reading + Number of Counts).'
L
90 DAYS 23 + 5°C 1 YEAR 23 + 5°C
1
L
I1A 0.04 + 4 0.05 + 4
>1A 0.1 +4 0.1
+ 4
I
MEDIUM AND FAST READING RATES..Jn medium reading rate, add 2 counts to number of
counts. In fast reading rate, use 2 counts for number of
counts.
' When in fast reading rate with internal trigger and transmitting data out of the IEEE-488 interface,
the 8840A display must be blanked (command Dl) ot ensure stated accuracy.
AC Current Accuracy (Option -09)
NORMAL (S) READING RATE ................ +(% of Reading + Number of Counts).'
1 Year, 23
k 5"C, for sinewave inputs 210,000 counp
I
FREQUENCY IN HERTZ
20 -45 45 - 100 100 - 5K*
2.0
+ 200** 0.5 + 200** 0.4 + 200**
I
* Typically 20 kHz
** Add 100 counts for sinewave inputs between 1000 and 10,000 counts.
When in fast reading rate with internal trigger and transmitting data out of the IEEE-488 interface,
