Fluke 8840A User Manual

Introduction and Specifications

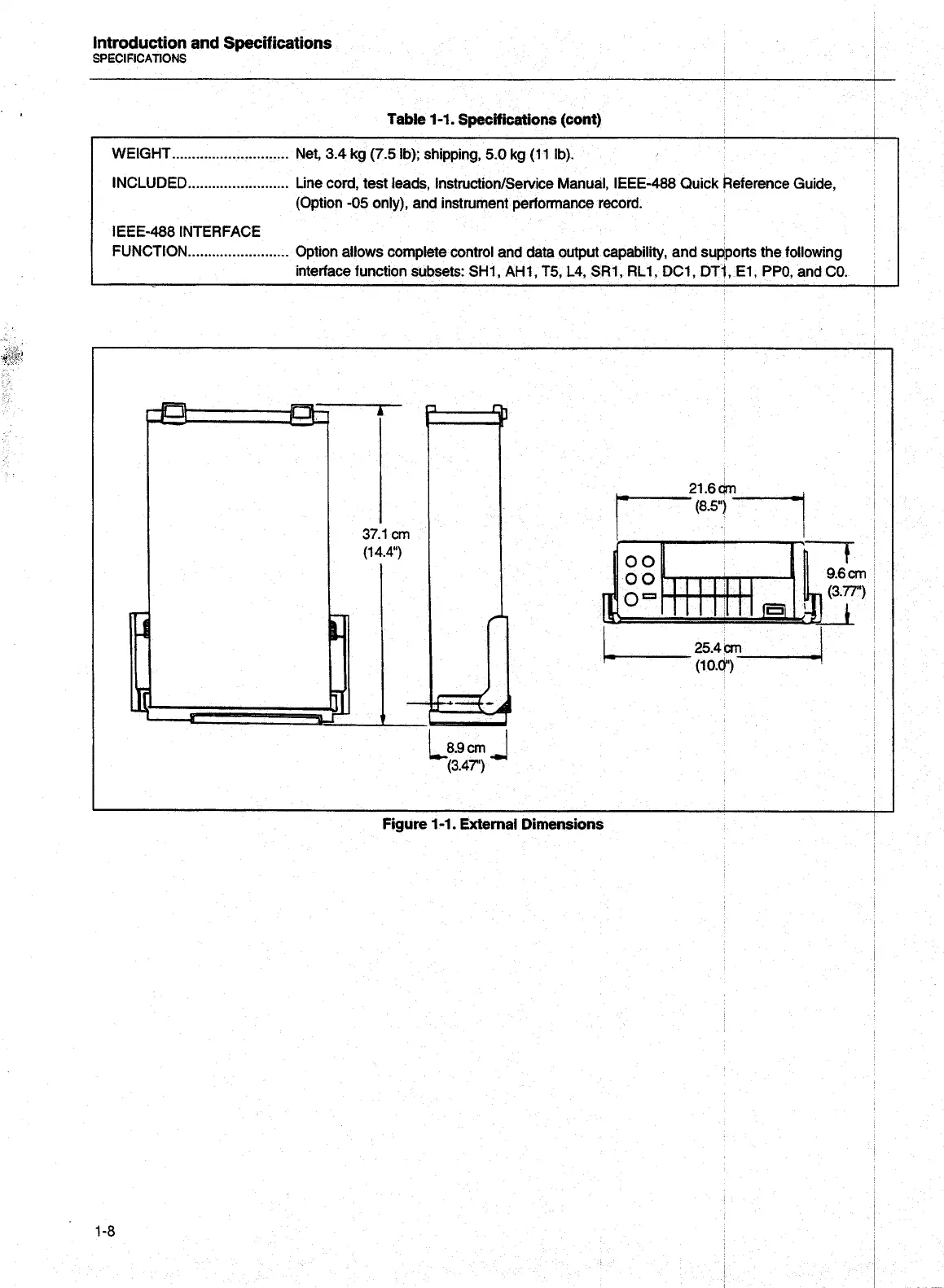

SPECIFICATIONS
Table 1-1. Specifications (cont)
WEIGHT
............................. Net, 3.4 kg (7.5 Ib); shipping, 5.0 kg (1 1 Ib).
INCLUDED
......................... Line cord, test leads, InstructionIService Manual, IEEE-488 Quick Reference Guide,
(Option
-05 only), and instrument performance record.
I IEEE-488 INTERFACE
(
FUNCTION ......................... Option allows complete control and data output capability, and supports the following
interface function subsets: SH1
, AH1, T5, L4, SR1, RL1, DC1, DT1, El, PPO, and &.
w- -
37.1 crn
(1 4.4")
L8.9 crn
A
(3.47")
Figure 1-1. External Dimensions
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Fluke 8840A Specifications

General

Frequency Range	20 Hz to 100 kHz
Operating Temperature	0°C to 50°C
Display	Vacuum Fluorescent
DC Current Range	0 to 2 A
AC Current Range	0 to 2 A
