Calibration Adjustment
Final Calibration For v11.10 and later 5
5-25
NORMAL SCOPE
FLUKE 5502A CALIBRATOR
AB
METER
2 CHANN. + METER
USE STACKABLE TEST LEADS
AS SUPPLIED WITH CALIBRATOR
Perf-Ver-X2.eps

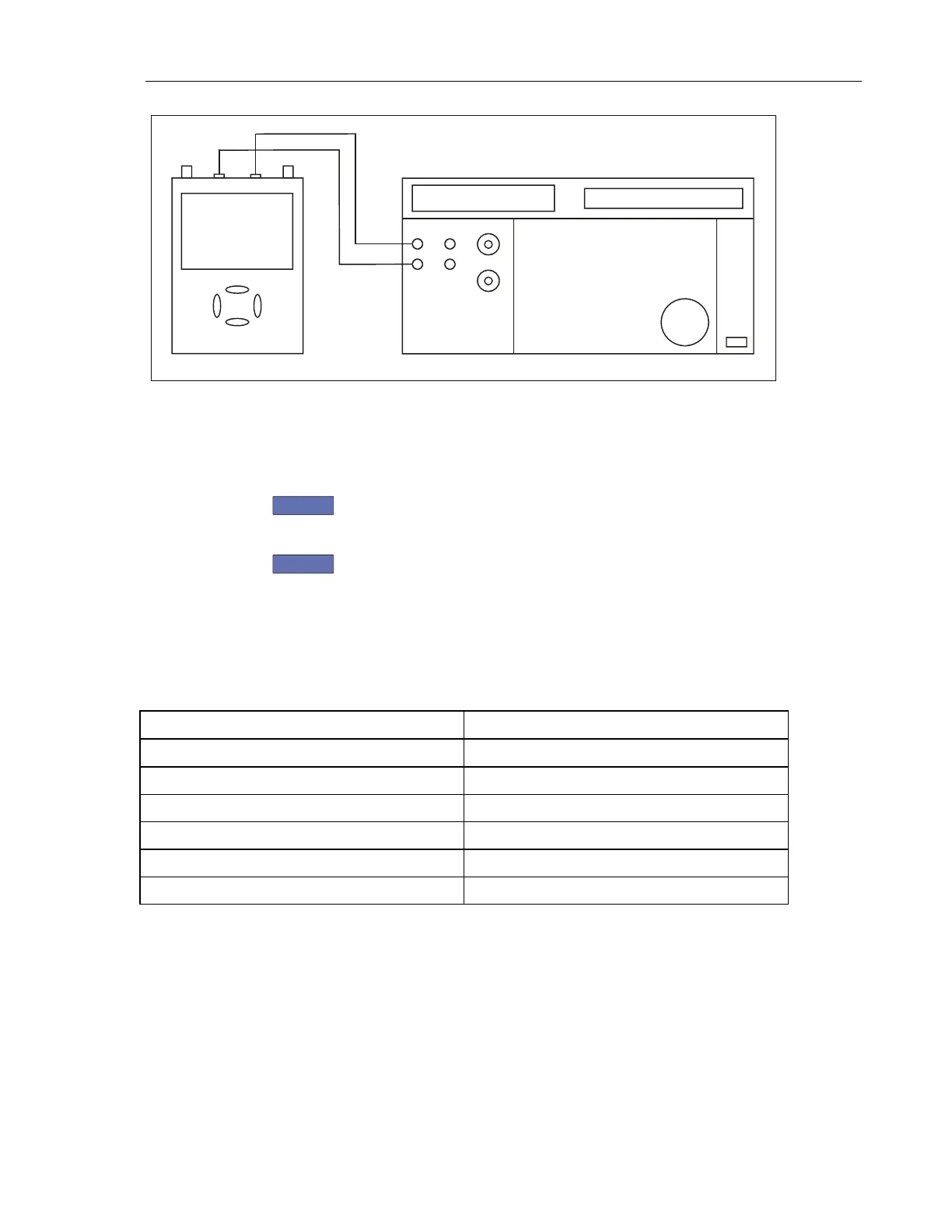

Figure 5-9. 5502A NORMAL Output to Test Tool Banana Input
3. Set the 5502A to supply a DC voltage to the first calibration point in
Table 5-7.
4. Set the 5502A to operate (OPR).
5. Press
F3
to start the calibration.
6. Wait until the display shows calibration status
:READY.
7. Press
F2
to select the next calibration step, set the 5502A to the next
calibration point, and start the calibration. Continue through all calibration
points of Table 5-7.
8. Set the 5502A to Standby, and continue at the Multimeter (DMM) Ohm Gain
section.
Table 5-7. DMM Volt Gain Calibration Points
Cal step UUT input value (5502A NORMAL, dc output)
CL 0840 500 mV
CL 0849 2.5 V
CL 0841 5 V
CL 0842 50 V (set 5502A to OPR!)
CL 0843 500 V
CL 0844 1000 V
