Performance Verification
Operation Instructions 4
4-5
Menu Navigation
During verification you must open menus and choose items from the menu.
Proceed as follows to make choices in a menu:
1. Reset the Test Tool.
2. Open a menu, for example, press
SCOPE
and press
F2
(READING …).

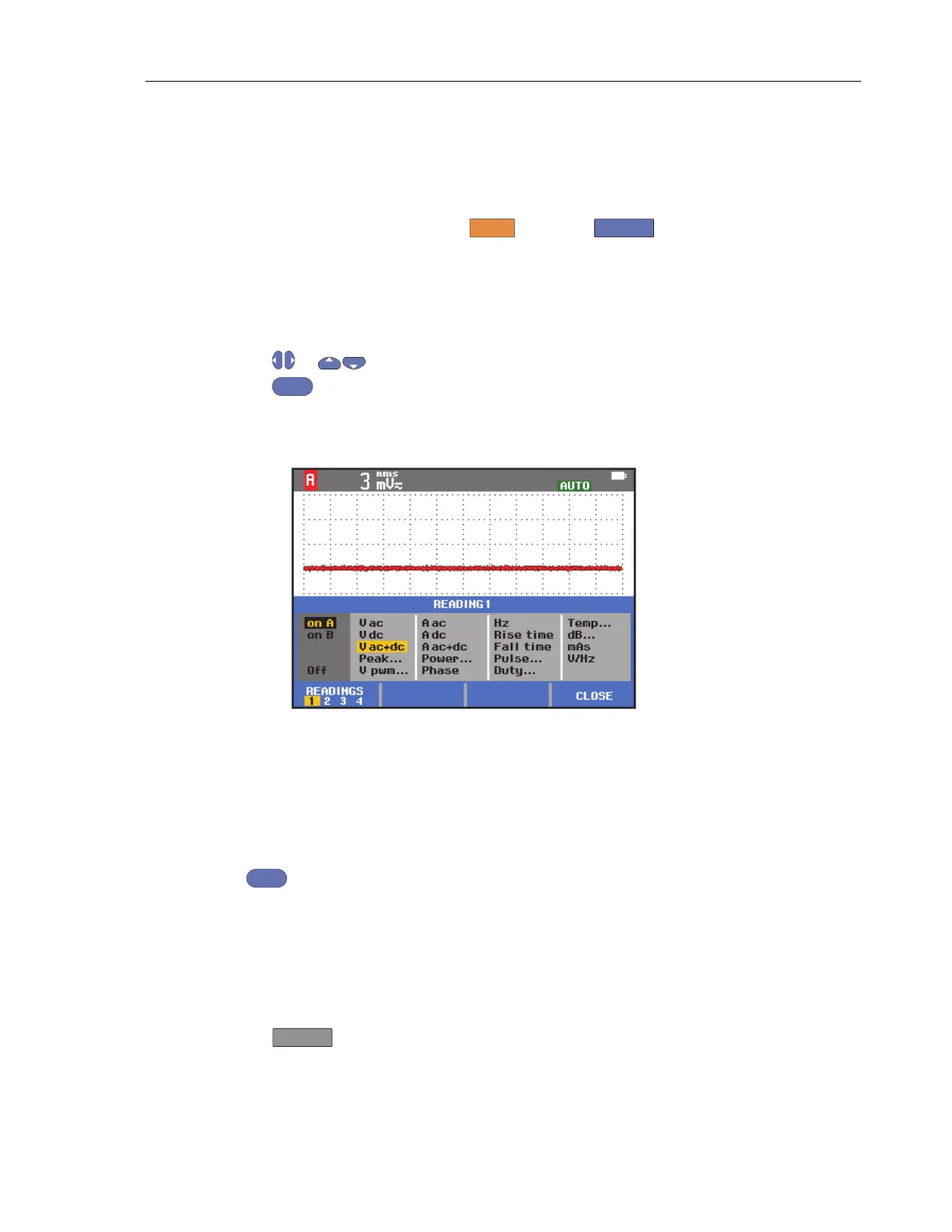

The menu shown in Figure 4-1 opens.
A yellow background or yellow characters mark the active functions. If more
than one menu group is available, they are separated by a vertical line.
The menu shown indicates that
READING 1 (that is the upper left reading)
shows the result of a V rms measurement (
V ac+dc) on Input A (on A).
3. Press
or to highlight the function to be selected.
4. Press
ENTER
to confirm the selection.
The active function in the next menu group is highlighted. If the confirmation
is made in the last (most right) menu group, the menu will close.
Figure 4-1. Menu Item Selection
Standard Test Tool Setup
Before you start the verification procedure you must define a standard Test Tool
setup, for example, SCOPE 1. During verification you will be asked to recall this
setup. This defines the initial Test Tool setup for each verification.
Press
ENTER
to confirm each setting.
Note
The setup steps for channel C and D are only for the models
190-104, 190-204, and 190-504.
Proceed as follows to create a setup (for instance SCOPE1):
1. Reset the Test Tool. Input A is ON and other inputs are OFF.
2. Press
B
: INPUT B ON. The black text with yellow background indicates
the actual settings.
