Performance Verification
Scope Input A, B, C, D Tests 4
4-11
Input A, B, C, D DC Voltage Accuracy Test
ļ˜ļ— Warning
To prevent possible electrical shock, fire, or personal injury,
ensure that the calibrator is in standby mode before making any
connection between the calibrator and the Test Tool.
Dangerous voltages are present on the calibration source and
connection cables during these steps.
Note
The test steps for channel C and D are only for the models
190-104, 190-204, and 190-504.
Proceed as follows to verify the automatic dc voltage scope measurement:
1. Connect the Test Tool to the 5502A as shown in see Figure 4-4.
NORMAL SCOPE
FLUKE 5502A CALIBRATOR
PM9091
PM9081
CONNECT TO CHANNEL A, B, C, D IN PARALLEL
50 OHM TERMINATIONNO
ADC
B
PM9093
PM9092
AB
METER
P
M
9
0
9
3
PM9092
2 CHANN. + METER
4 CHANNELS
perf-ver-b2.eps

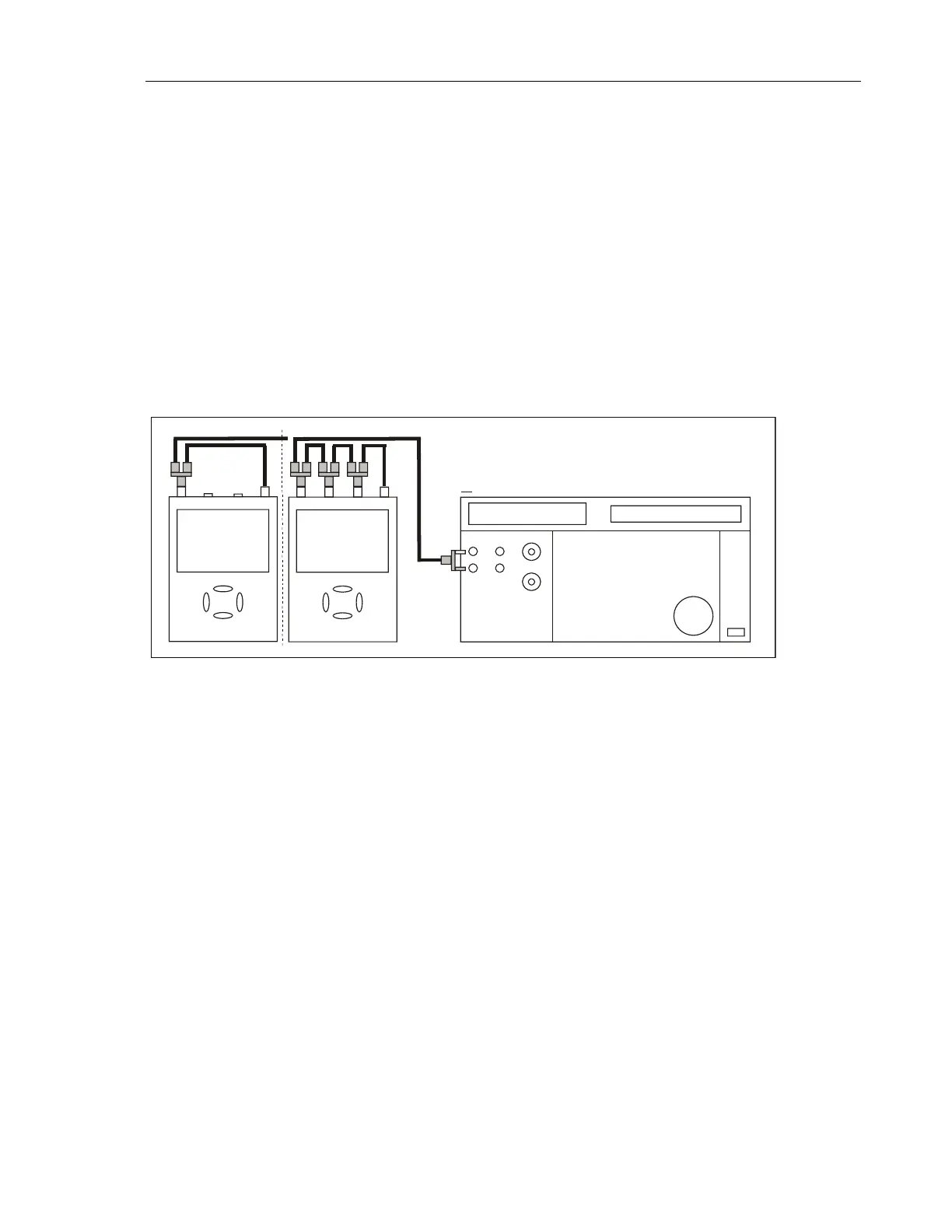

Figure 4-4. Test Tool Inputs A, B, C, D to 5502A Normal Output
