Calibration Adjustment
Final Calibration (Firmware: V10.9 and Lower) 5
5-33
Input C LF-HF Gain
Note
The adjustment steps for channel C are only for the models 190-104
and 190-204.
Proceed as follows to do the Input C LF-HF Gain calibration:
1. Press
F2
to select the first calibration step in Table 5-13.
2. Connect the Test Tool to the 5502A as shown in Figure 5-13.
ADC
B
NORMAL
SCOPE
FLUKE 5502A CALIBRATOR
PM9091
PM9585 - 50 OHM
USE 50 OHM
TERMINATION
4 CHANNELS
For 190-502 and -504
use only TRM50!
Perf-Ver-F2.eps

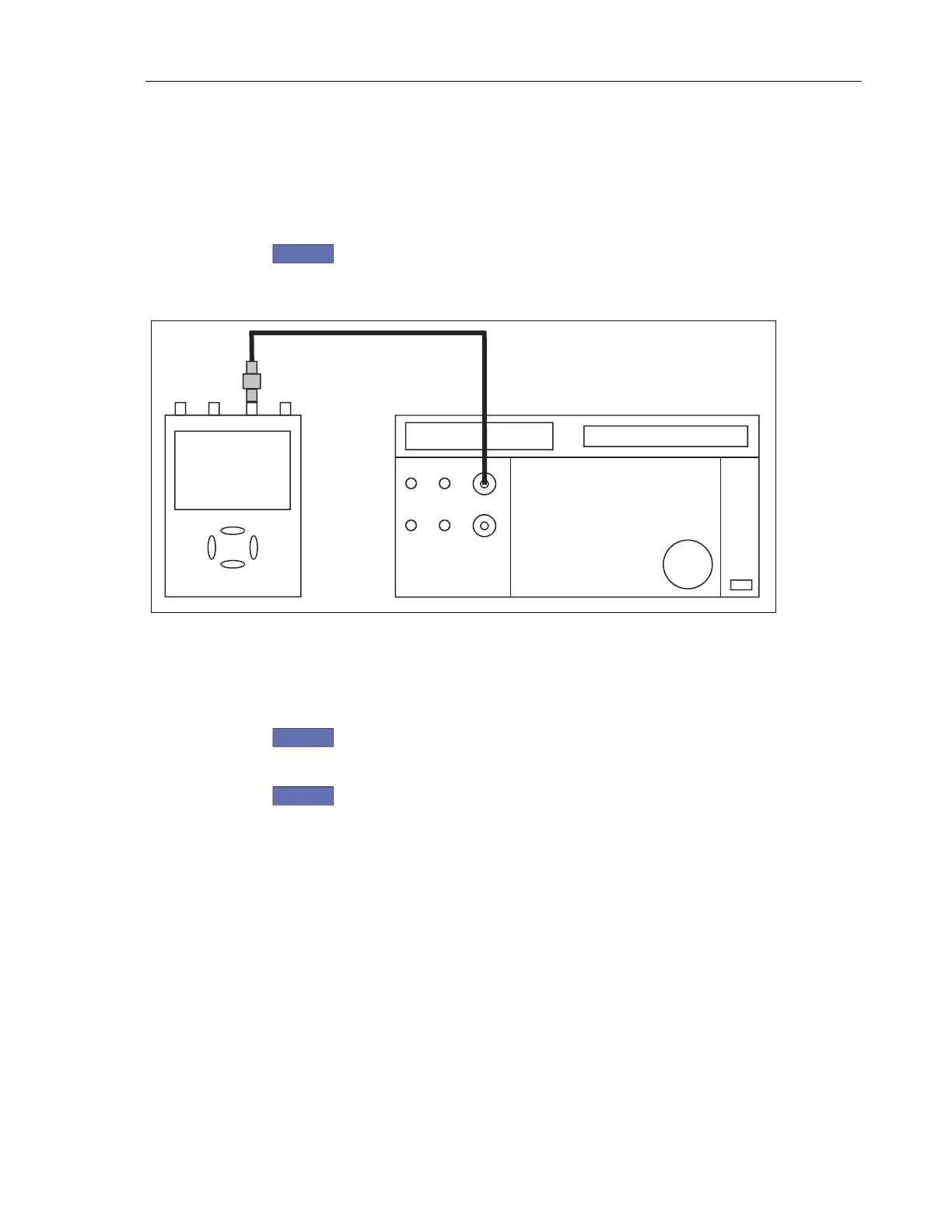

Figure 5-13. 5502A SCOPE Output to Test Tool Input C
3. Set the 5502A SCOPE output to source the signal required for the first
calibration point in Table 5-13.
4. Set the 5502A in operate (OPR) or standby (STBY) as indicated.
5. Press
F3
to start the calibration.
6. Wait until the display shows calibration status
:READY.
7. Press
F2
to select the next calibration step, set the 5502A to the next
calibration point signal, and start the calibration.
Continue through all calibration points of Table 5-13 and Table 5-14.
8. When you are finished, set the 5502A to Standby.
9. Continue at the Input D LF-HF Gain section.
