Fluke ScopeMeter 190 II Series Service Manual

Specifications
Safety 2
2-15
 Max. Floating Voltage
Fluke 190-xxx (test tool or test tool + VPS410)
From any terminal to earth ground ...................... 1000 V CAT III, 600 V CAT IV
Between any terminal .......................................... 1000 V CAT III, 600 V CAT IV
Fluke 190-xxx + VPS510
From any terminal to earth ground .......................... 300 V CAT III
Between any terminal .............................................. 300 V CAT III
Voltage ratings are given as “working voltage”. They should be read as Vac-rms (50-60 Hz) for AC sinewave applications
and as Vdc for DC applications.
MAX. INPUT
VOLTAGE (Vrms)
FREQUENCY (MHz
)
0.01 0.02 0.05 0.1 0.2 0.5
12
5102050100
500
200
100
50
20
10
5
2
1
hpp049.eps

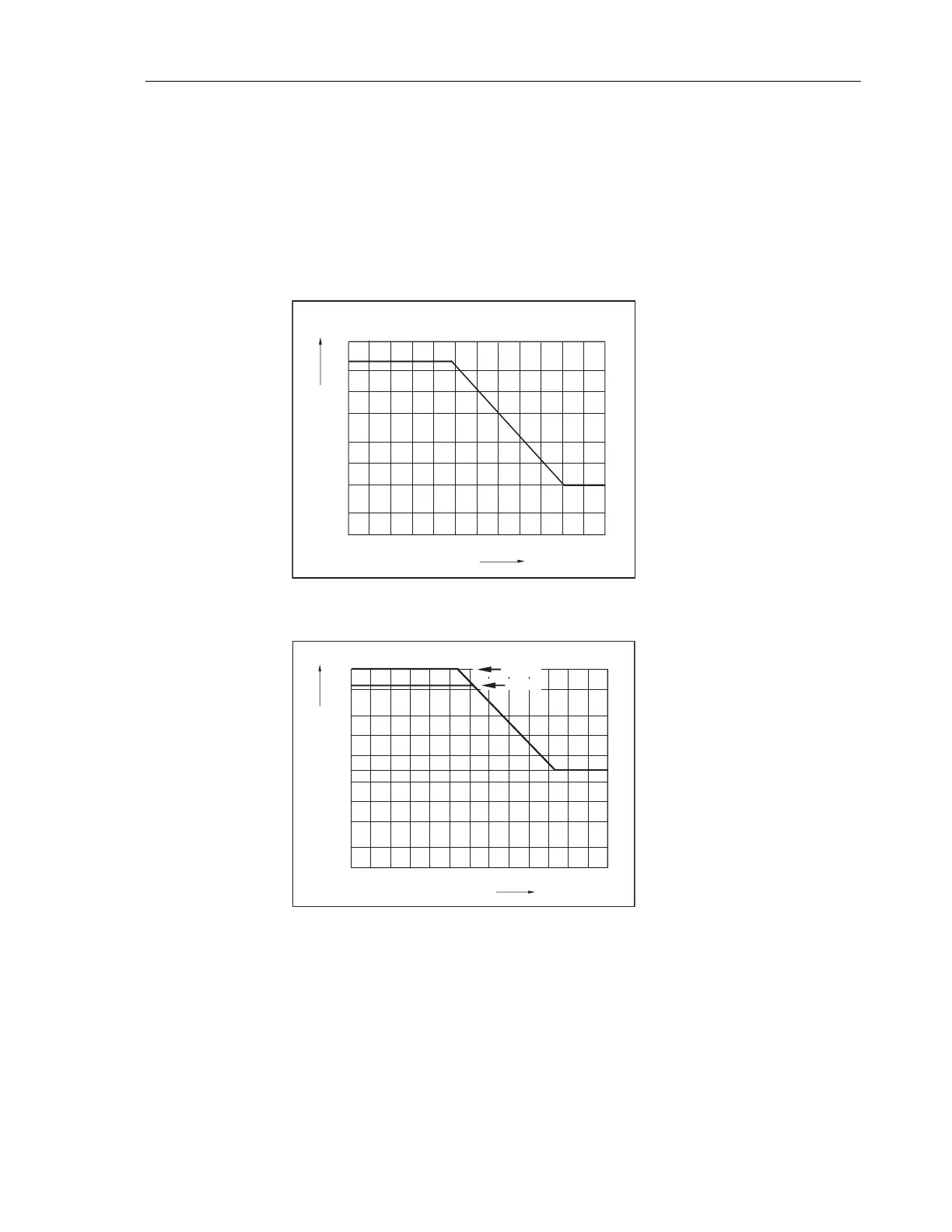

Max. Input Voltage vs. Frequency
CAT IV
CAT III
VOLTAGE (Vrms)
FREQUENCY (kHz)
1000
500
200
100
50
30
20
10
5
2
1
0.01 0.02 0.05 0.1 0.2 0.5
12
5102050100200
hpp50
Safe Handling: Max. Voltage between Scope References, and
between Scope References and Earth Ground
