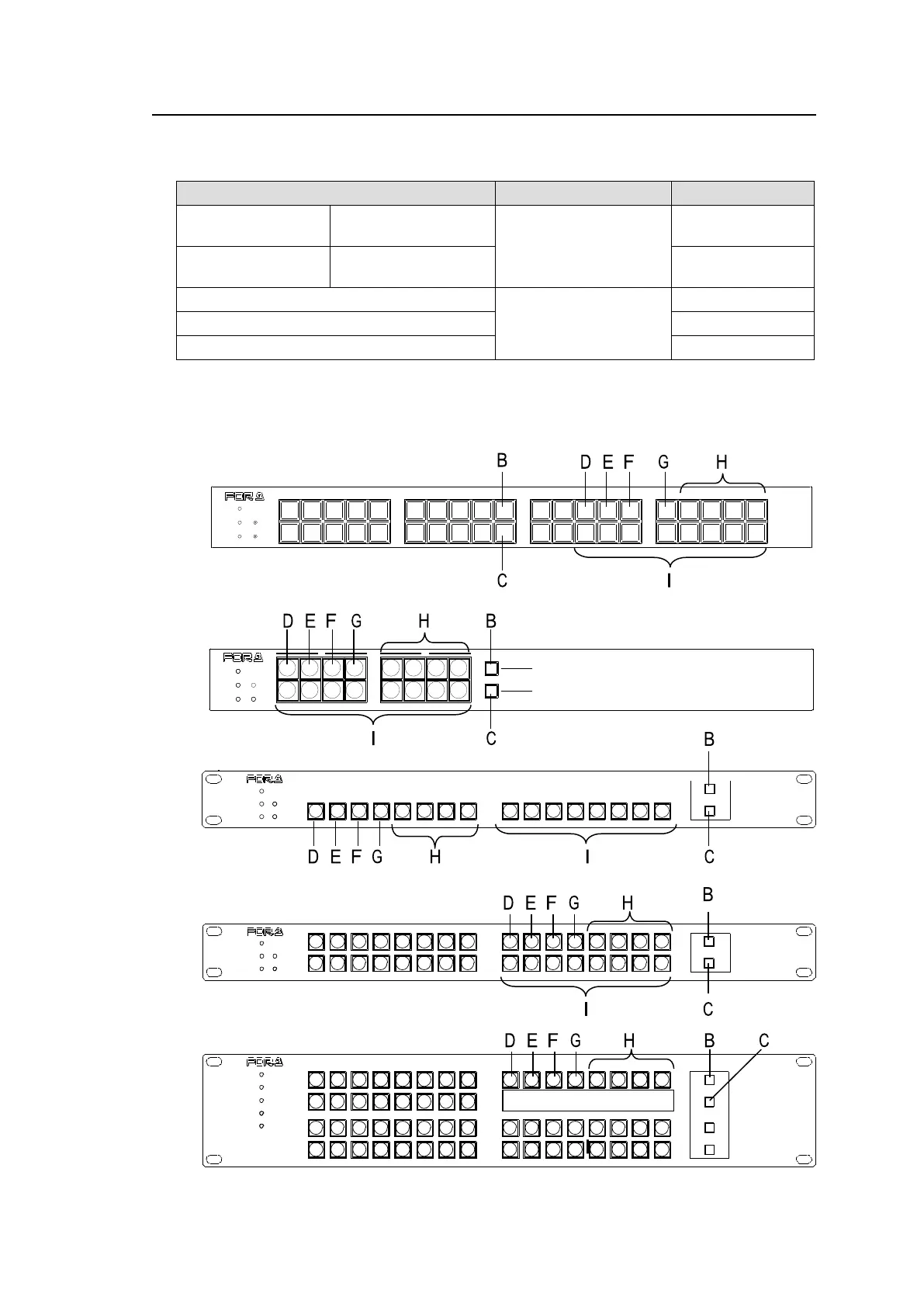

5-10-1. Displaying Network Settings
(1) In Setup Menu mode, press a button shown in the table below to display the desired
network setting. Note that button locations vary depending on remote control units.
Button operation
LAN port
Display Info.
Press D.
If B is lit, press B.
If C is lit, press C.
Remote Control Unit
(LAN)
IP address
Press E.
If B is lit, press B.
If C is lit, press C.
Subnet mask
Press B, then D.
PC-LAN on Main Unit
(MU)
IP address
Press B, then E.
Subnet mask
Press B, then F.
Default Gateway
(2) Press an octet button of Buttons H to select an octet. The right-most button represents the
fourth octet. (See the previous page.)
(3) The octet value will be displayed on Buttons I (eight buttons). (See the previous page.)
MFR-40RU
MFR-16RU (MFR-16RUD)
MFR-16RUW
MFR-32RUW
MFR-64RUW
POWER
BUSY SETUP
LOCK RESET
MFR-40RU
REMOTE CONTROL UNIT
POW ER
BU SY SETUP
LO CK R ESET
FUNCTION
1
2
REMOTE CONTROL UNIT
MFR-32RUW
POW ER
BUSY SE TUP
LOCK RE SET
MFR-16RUW
FUNC TION
1
2
REMOTE C ONTROL U NIT
PAGE A
(HOLD 3SEC)
PAGE B
LOCK RESET
POWER
BUSY SETUP
LOCK DEST
(HOLD 3SEC)
LOCK PANL
A B
REMOTE CONTROL UNIT
MFR-16RU
MFR-64RUWREMOTE C ON TROL UNIT
1
2
1
2
POWER
BUSY
LOCK
SETUP
RESET
FUNC TION
I
