FOR-A MFR-5000 - 8 Gearbox Feature (MFR-16 SDIGB;16 SDOGB); MFR-16 SDIGB; 16 SDOGB Cards

131
8. Gearbox Feature (MFR-16SDIGB/16SDOGB)
Optional MFR-16SDIGB/16SDOGB cards support Gearbox features, in which video signal
conversions between 12G-SDI and Quad Link 3G-SDI, and between 2SI and SQD are available.
 Gearbox features
 Conversion between 12G-SDI and Quad Link 3G-SDI (including asynchronous input)
 Conversion between 2SI and SQD
 Clean switch after conversion by AVDL (Automatic Variable Delay Line)
Also allows Gearbox I/O delay selection (excluding 2SI / SQD conversions)
 Genlock or Line lock synchronization
 H/V ANC data pass-through

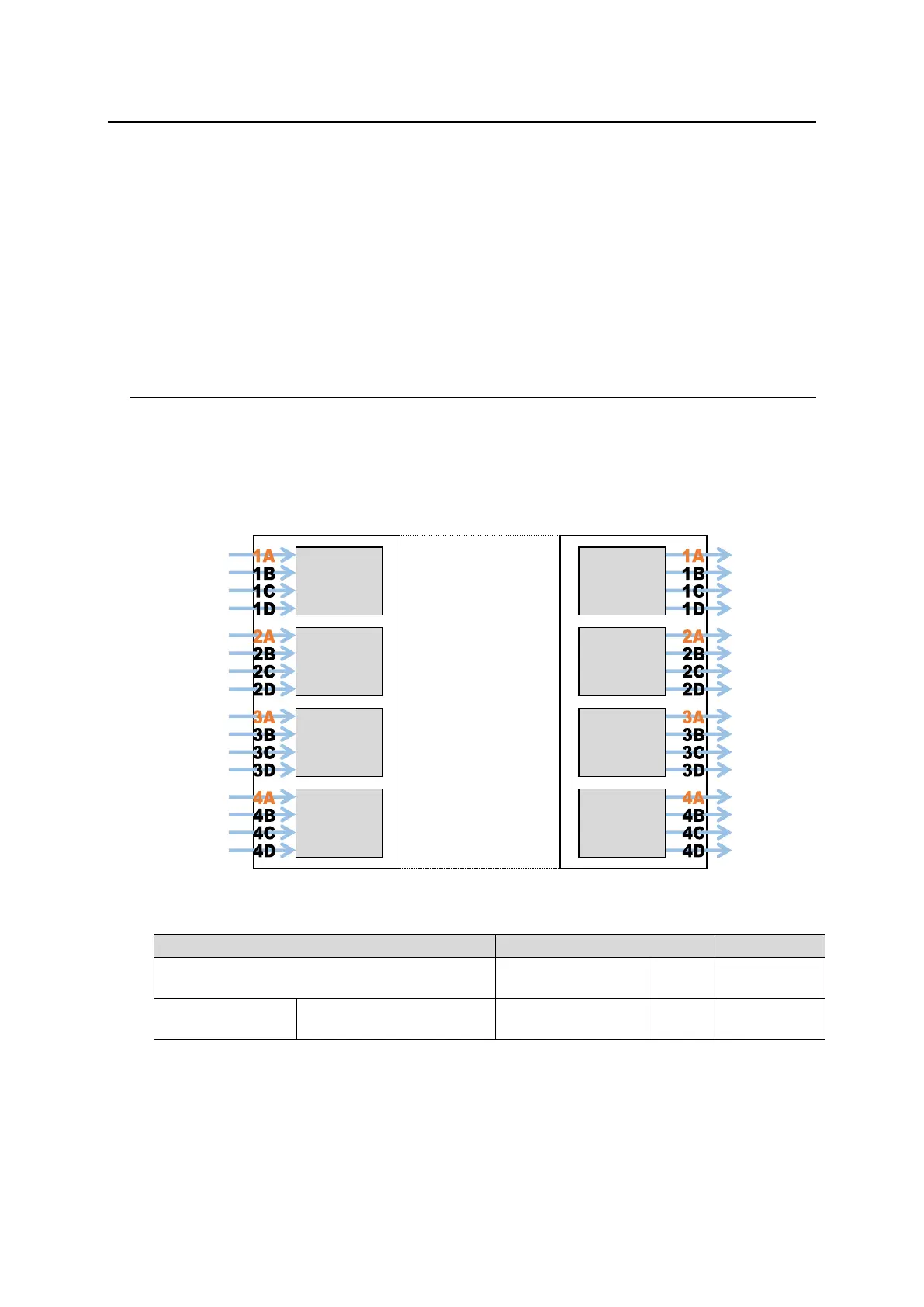

8-1. MFR-16SDIGB / 16SDOGB Cards
MFR-16SDIGB / 16SDOGB cards have four built-in Gearboxes that can respectively perform
signal conversions and output test patterns.
Four A connectors (1A, 2A, 3A and 4A) can support 12G-SDI signals. If a 12G-SDI signal is
input to a Gearbox, other connectors are disabled.
 Supported formats
Signal format
Video format
Standard
12G-SDI
3840 x 2160/59.94p
3840 x 2160/50p
4:2:2
10-bit
SMPTE
ST2082-10
Quad Link 3G-SDI
(Level-A)
SQD (Square Division)
2SI (2-Sample Interleave)
3840 x 2160/59.94p
3840 x 2160/50p
4:2:2
10-bit
SMPTE
ST425-5
MFR-16SDIGB
12G/3G-SDI
3G-SDI
3G-SDI
3G-SDI
12G/3G-SDI
3G-SDI
3G-SDI
3G-SDI
MFR-16SDOGB
MFR-5000
routing
Gearbox 1
Gearbox 2
Gearbox 3
Gearbox 4
Gearbox 1
Gearbox 2
Gearbox 3
Gearbox 4
