FOR-A MFR-5000 - Rear Panel

40

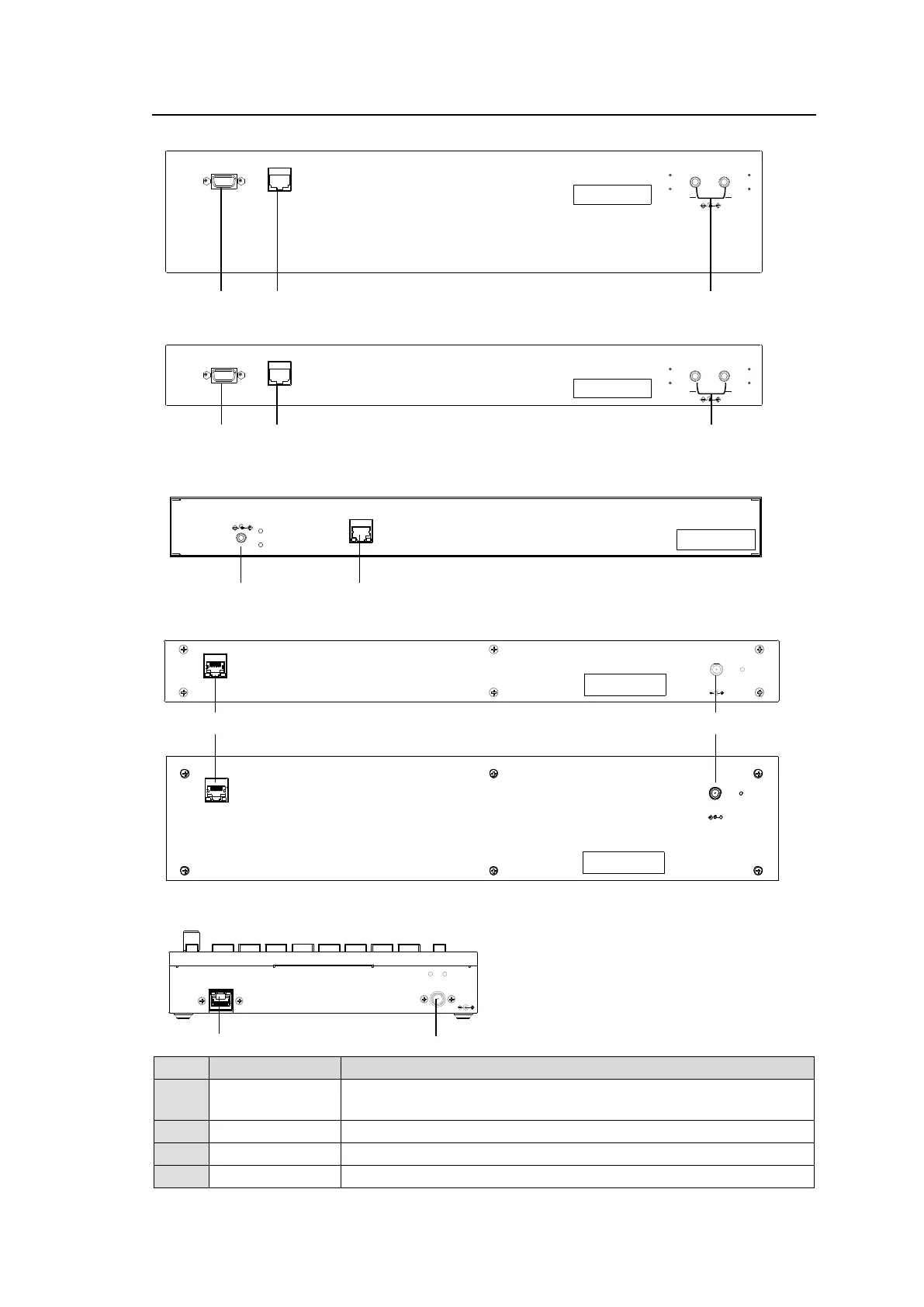

2-6-2. Rear Panel
 MFR-39RU / 39RUA
 MFR-40RU / MFR-18RU/ MFR-18RUA
 MFR-16RU / MFR-16RUD
 MFR-16/32/64RUW
 MFR-16RUTA
No.
Item
Description
A
MFR-LAN *1
Used to connect the MFR main unit
Ethernet port (10/100BASE-TX)
B
SERVICE
Used for maintenance only. Do not use.
C
DC 12 V IN 1,2
Used to supply 12 V DC power.
D
DC 12 V IN
Used to supply 12 V DC power.
*1 The MFR-LAN connector may be labeled 10/100BASE-T on the previous model.
DC12V IN
2 1
SERVICE
MFR-LAN
B
A
C
DC12V IN
MF R-LA N
A
D
DC12V IN
2 1
SERVICE
MFR-LAN
A
C
B
DC12V IN
MFR-LAN
A
D
RATING LABEL
DC12V IN
MFR-LAN
MFR-LAN
DC12V IN
A
D
