2-3-3. MFR-16SDIGB
The MFR-16SDIGB is an SDI input card that accepts 12G- and 3G-SDI signals and supports
Gearbox feature in which video signal conversions between 12G-SDI and Quad Link 3G-SDI,
and between 2SI and SQD are available.
See Sec. 8. "Gearbox Feature (MFR-16SDIGB/16SDOGB)."
The following numbers of inputs is available:
12G-SDI signal: Max 4 inputs (BNC: 1A, 2A, 3A and 4A)
3G-SDI signal: Max 16 inputs
Cards can be installed into Slot No. 01 to 08.
See Sec. 2-1-1. "Matrix Size Chart."

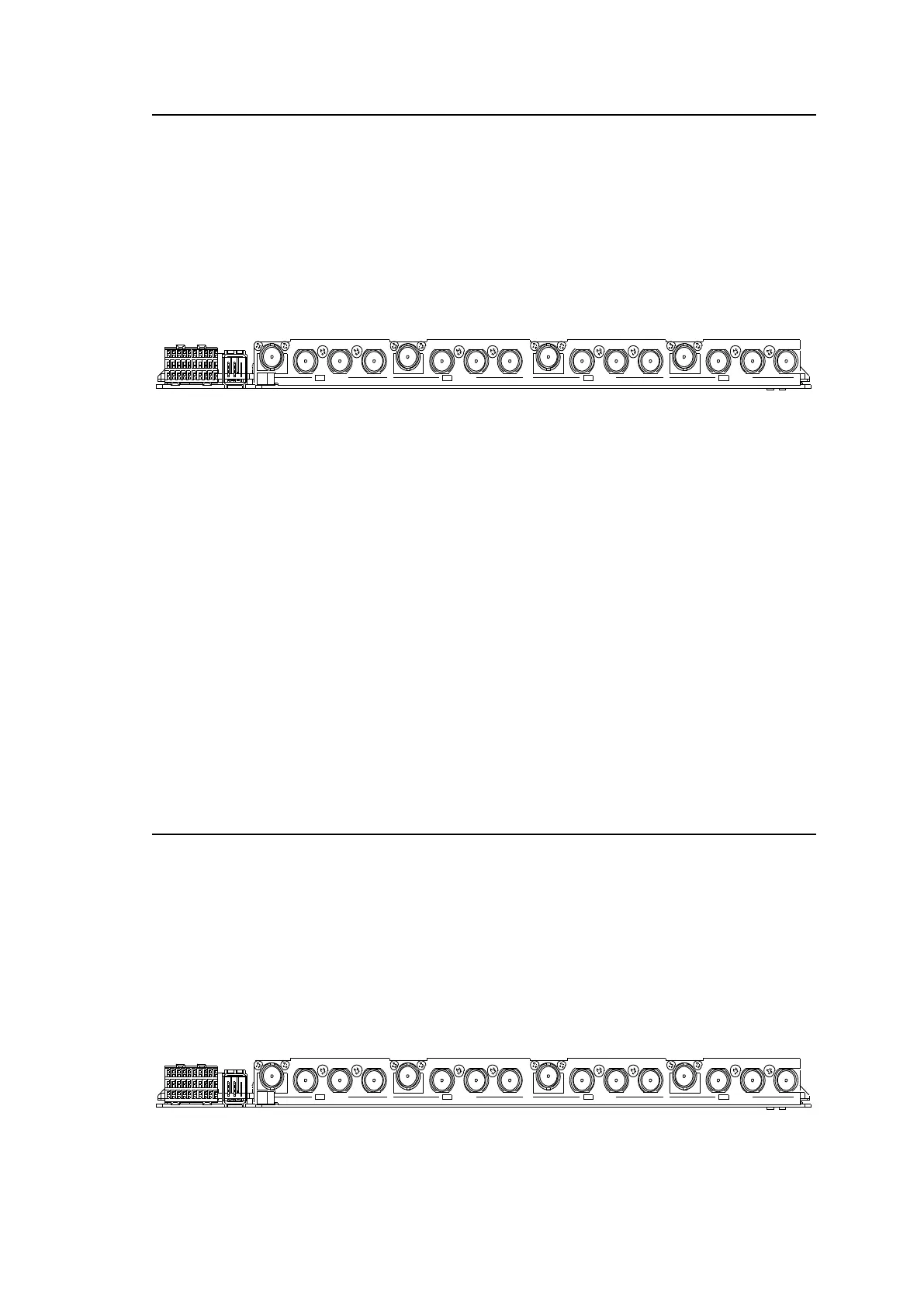

IN
1
1A
1B
1C
1D
2A
2B
2C
2D
12G / 3G-SDI12G / 3G-SDI
3A
3B
3D
3C
12G / 3G-SDI 12G / 3G-SDI
4A
4B
4C
4D
BNC x 16 inputs (12G/3G-SDI)
Set up input signals in the Web-based Control Software as shown below.
Gearbox settings
In the left side of the Web-based Control screen, click to select [(Main Unit Settings) -
Gearbox Settings] in the menu tree to display the settings page.
This page allows you to specify input signals and conversion modes.
Source Assignment
In the left side of the Web-based Control screen, click to select [Router System Settings -
Source Assignment] in the menu tree to display the settings page.
This page allows you to assign physical inputs to logical input channels.
Source Name
In the left side of the Web-based Control screen, click to select [Router System Settings -
Source Name] in the menu tree to display the settings page.
This page allows you to change source names displayed on Remote Controllers or other
devices.
2-3-4. MFR-16SDOGB
The MFR-16SDOGB is an SDI output card that accepts 12G- and 3G-SDI signals and
supports Gearbox features in which video signal conversions between 12G-SDI and Quad
Link 3G-SDI, and between 2SI and SQD are available.
See Sec. 8. "Gearbox Feature (MFR-16SDIGB/16SDOGB)."
The following numbers of outputs are available:
12G-SDI signal: Max 4 outputs (BNC: 1A, 2A, 3A and 4A)
3G-SDI signal: Max 16 outputs
Cards can be installed into Slot No. 09 to 16.
See Sec. 2-1-1. "Matrix Size Chart."
OUT
1
1A
1B
12G / 3G-SDI
1C
1D
2A
2B
2C
2D
12G / 3G-SDI
3A
3B
3C
3D
12G / 3G-SDI 12G / 3G-SDI
4A
4B
4C
4D
BNC x 16 outputs (12G/3G-SDI)
