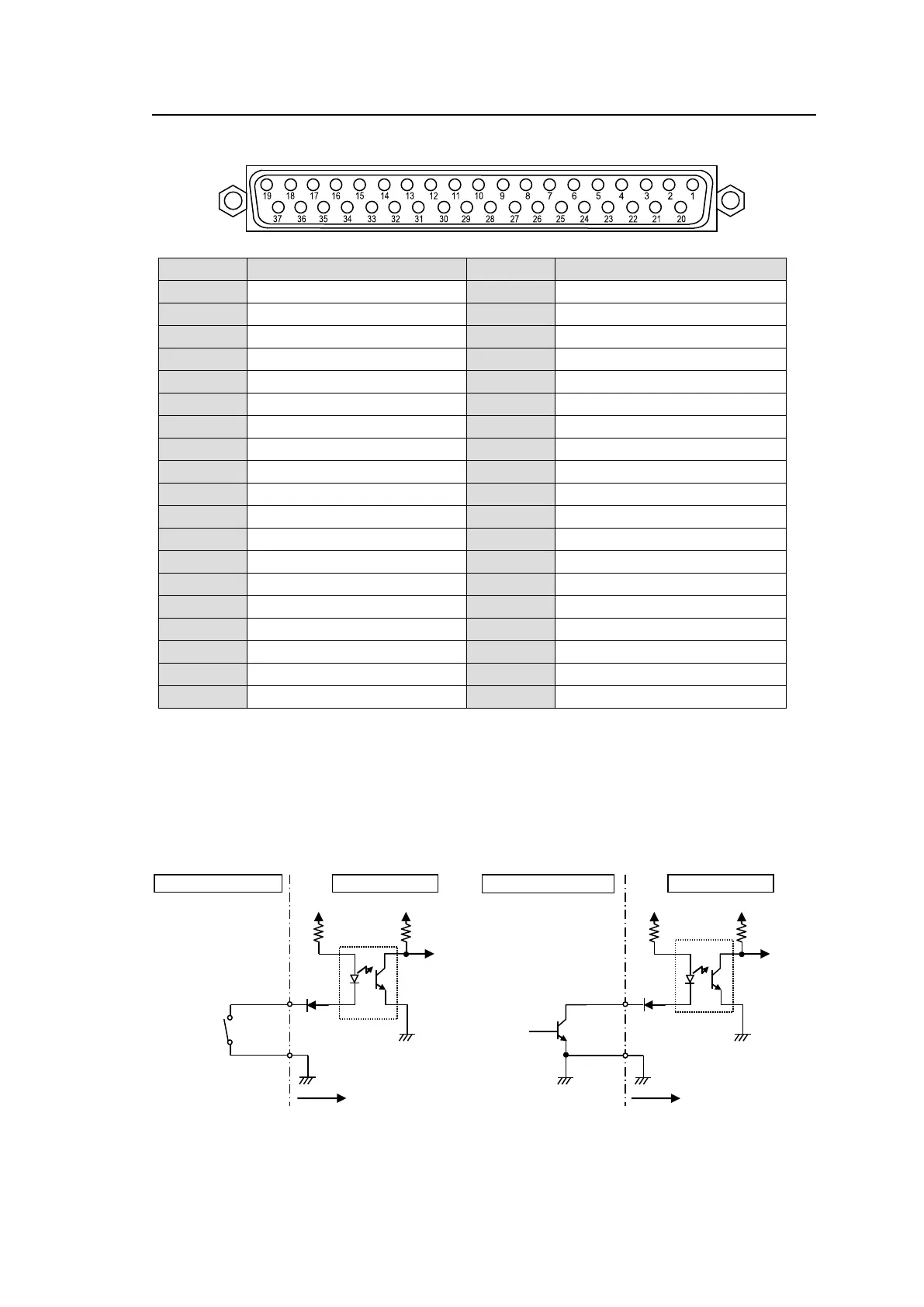

2-7-3. Interfaces (MFR-GPI)
 GPI IN / TALLY OUT Connector (37-pin D-sub, female)
Pin No.
Signal
Pin No.
Signal
1
GPI_IN / TALLY_OUT 01 #
20
GPI_IN / TALLY_OUT 20 #
2
GPI_IN / TALLY_OUT 02 #
21
GPI_IN / TALLY_OUT 21 #
3
GPI_IN / TALLY_OUT 03 #
22
GPI_IN / TALLY_OUT 22 #
4
GPI_IN / TALLY_OUT 04 #
23
GPI_IN / TALLY_OUT 23 #
5
GPI_IN / TALLY_OUT 05 #
24
GPI_IN / TALLY_OUT 24 #
6
GPI_IN / TALLY_OUT 06 #
25
GPI_IN / TALLY_OUT 25 #
7
GPI_IN / TALLY_OUT 07 #
26
GPI_IN / TALLY_OUT 26 #
8
GPI_IN / TALLY_OUT 08 #
27
GPI_IN / TALLY_OUT 27 #
9
GPI_IN / TALLY_OUT 09 #
28
GPI_IN / TALLY_OUT 28 #
10
GPI_IN / TALLY_OUT 10 #
29
GPI_IN / TALLY_OUT 29 #
11
GPI_IN / TALLY_OUT 11 #
30
GPI_IN / TALLY_OUT 30 #
12
GPI_IN / TALLY_OUT 12 #
31
GPI_IN / TALLY_OUT 31 #
13
GPI_IN / TALLY_OUT 13 #
32
GPI_IN / TALLY_OUT 32 #
14
GPI_IN / TALLY_OUT 14 #
33
Frame ground
15
GPI_IN / TALLY_OUT 15 #
34
Frame ground
16
GPI_IN / TALLY_OUT 16 #
35
Frame ground
17
GPI_IN / TALLY_OUT 17 #
36
+4.8V output
18
GPI_IN / TALLY_OUT 18 #
37
+4.8V output
19
GPI_IN / TALLY_OUT 19 #
* The symbol "#" at the end of signals represents the port number (1, 2, 3 or 4).
* The maximum total output current for all +4.8 V outputs is 1.5 A.
* The GPI input pulse width should be 54 ms or more.
 GPI IN Circuits
MFR-GPI
VCC
VCC
External device
Switch or relay
MFR-GPI
VCC
VCC
External device
Open Collector
