57

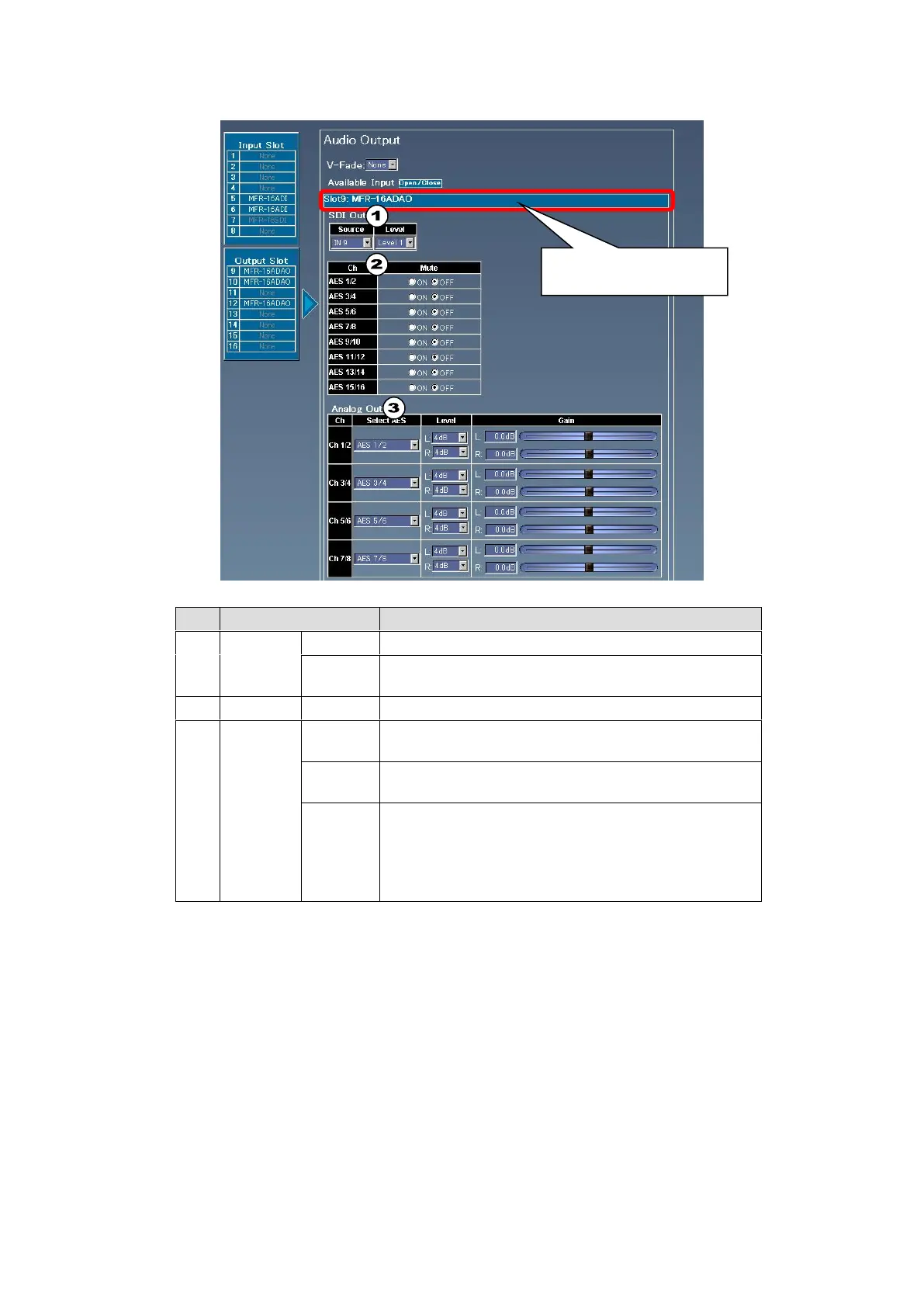

MFR-16ADAO
No.
Parameter
Description
1
SDI Out
Source
Selects an SDI signal from which audio is embedded.
Level
Selects the level for logical channels output from the
SDI Out.
2
AES Out
Mute
Turns the Mute function ON/OFF.
3
Analog
Out
Select
AES
Selects AES channels for analog output.
Level
Sets the analog output signal level. (Setting range:
-10 dB, 0 dB, 4 dB, 8 dB)
Gain
Sets the analog output gain.
(Setting range: -20 dB to 20 dB)
* However, for an 8 dB level setting, the setting range
is -20 dB to 16 dB, since the maximum output signal
level is 24 dB.
Click the Slot 9 label to
open the channel list.
