FOR-A MFR Series User Manual

87
9. MFR-TALM Settings

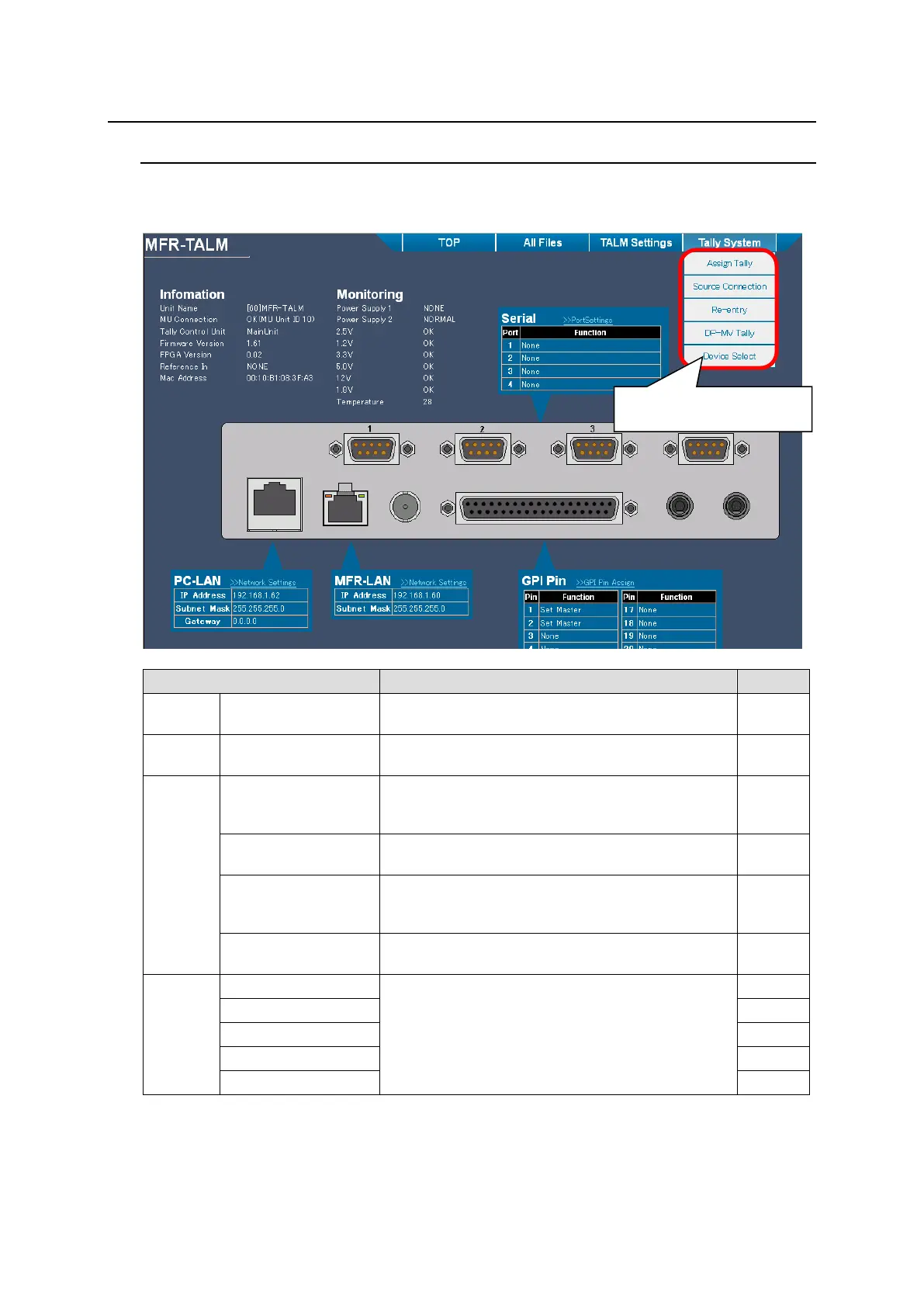

9-1. MFR-TALM Page Configuration
On the upper right corner of the MFR-TALM Web-Based Control top page, four buttons, TOP, All
Files, TALM Settings and Tally System are located and used for navigating Web-Based Control
pages.
Navigation bar
Description
Refer to
TOP
－
Opens the TOP page, displaying the MFR-TALM
hardware status.
9-2
All Files
－
Opens the All Files page, in which all MFR system
settings are saved/loaded using an All file.
8
TALM
Settings
Network Settings
Opens the Network Settings page, in which
MFR-TALM IP address and other network settings
are changed.
9-3-1
Port Settings
Opens the Port Settings page, in which serial
and Ethernet port settings are changed.
9-3-2
HVS-TAL Protocol
Reception
Opens the HVS-TAL Protocol Reception page,
used to set how to receive serial tallies from a
Hanabi series switcher.
9-3-3
GPI Pin Assign
Opens the GPI Pin Assign page, in which the
MFR-TALM GPI inputs and outputs are set.
9-3-4
Tally
System
Assign Tally
Opens the Tally System Settings page.
4-2-1
Source Connection
4-2-2
Re-entry
4-2-3
DP-MV Tally
9-4-4
Device Select
4-2-5
The Save and Load buttons on submenu pages allow you to save and load the settings to and from
a file. See Sec. 3-1. “Saving and Loading a File” for details.
Submenu page access
navigation bar.
