9-4-4. DP-MV Tally

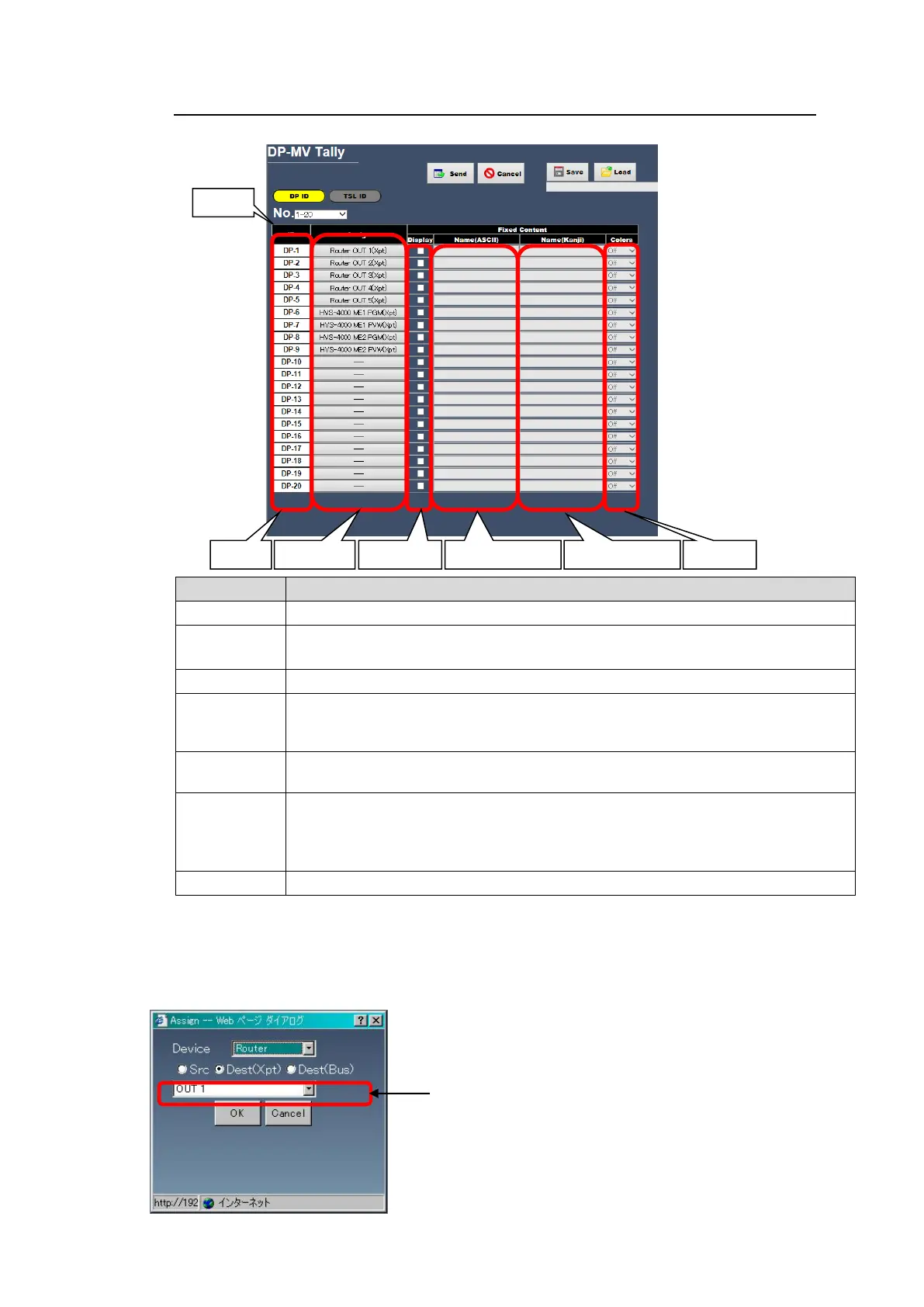

The DP-MV Tally page allows you to assign a channel for each display ID.
Parameter
Description
DP ID/TSL ID
Selects the ID for which to set settings.
No.
When DP ID is selected: Selects a UMD ID (DP1-128)
When TSL ID is selected: Selects an MV window ID. (TSL1-256)
Assign
Selects a channel to assign to the selected ID.
Display
Checking this checkbox displays the name entered under Content to the UMD or
MV window. Unchecking the checkbox displays the name under Assign, the
source name assigned to the channel.
Name
(ASCII)
Enters a name to be displayed on the MV window in ASCII code. To display the
set name, check the Display check box.
Name (Kanji)
Enters a name to be displayed on the MV window in Unicode. To display the set
name, check the Display check box.
Unicode names are enabled only when TSL 5.0 is selected. (See Sec. 9-3-2.
"Port Settings.")
Colors
Selects a tally color when the checkbox under Display is checked.
Assignments
Clicking a button under Assign displays the dialog box as shown below. Select the device and
its channel to assign the display ID, and click OK. The selected device and channel are
displayed under Assign.
Devices and channels are indicated by the names set for
switchers and channels in Sec. 4-2-5. “Device Select.
Channel selection
ID
Assign
Display
Name (ASCII)
Colors
No.
Name (Kanji)
