IMPORTANT
If changing both MFR-LAN and PC-LAN settings, before restarting MFR-TALM, click Send,
then OK on the pop-up dialog.
Saved settings are applied the next time Web-Based Control is restarted. (Restarting the
browser without pressing OK on the dialog fails to save the settings.) To apply settings in
such case, close the browser, wait several tens of seconds and login once again to the MFR
Web-based Control.

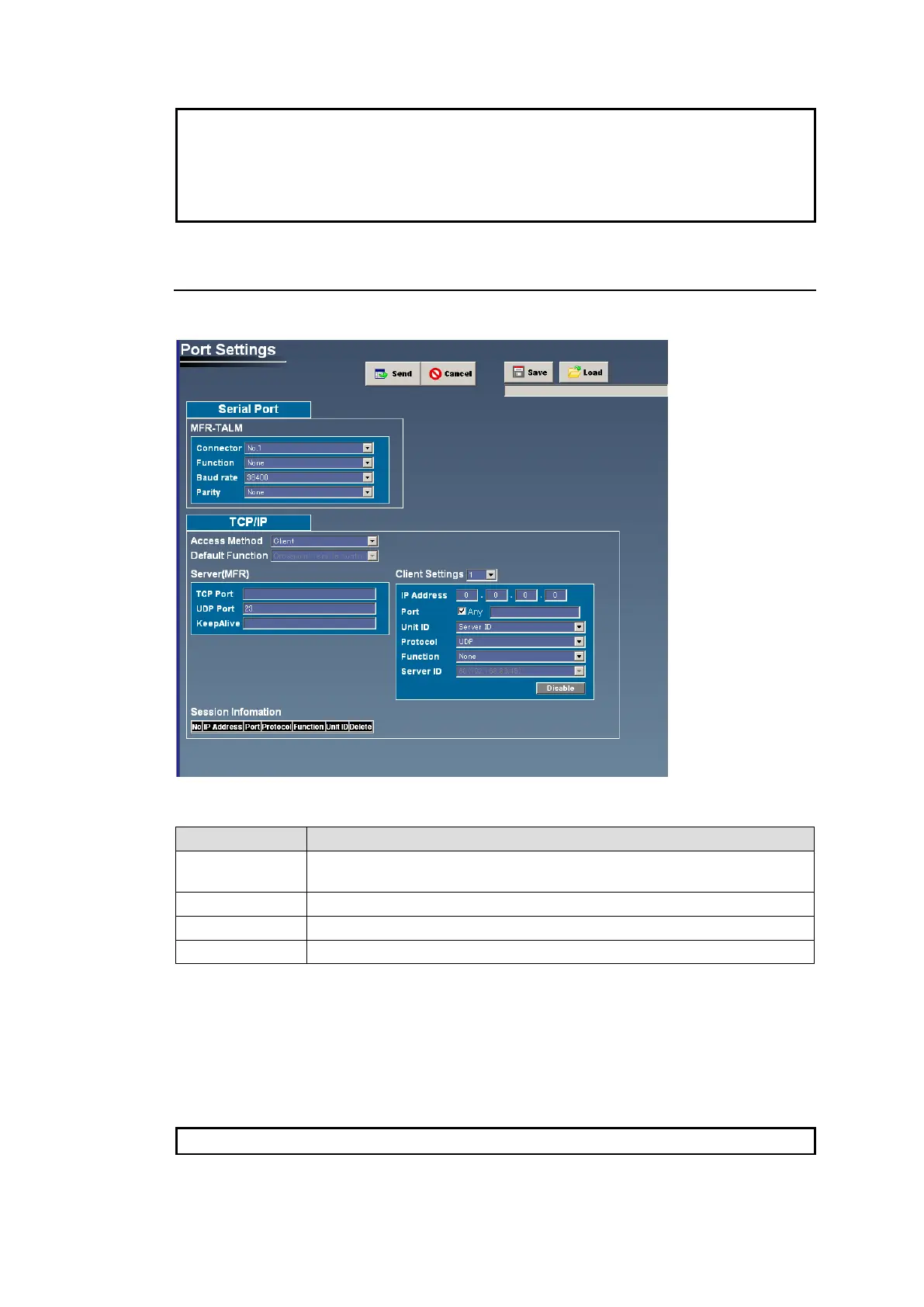

9-3-2. Port Settings
The Port Settings page allows you to set the serial and Ethernet port settings on an
MFR-TALM unit.
Serial Port
Parameter
Description
Connector
Allows you to specify the RS-422 connector number on the MFR-TALM
rear panel.
Function
Allows you to select the communication protocol.(*1)
Baud rate
Allows you to select the Baud rate.
Parity
Allows you to select the Parity.
(*1) Available protocols:
Router / HVS connection: Used to connect Hanabi series switchers other than HVS-2000/4000
(*2)
.
Router / HVS connection type2: Used to connect HVS-2000/4000 switchers
(*2)
.
Tally out (TSL Ver. 3.1): Used to transfer tally data using TSL protocol ver. 3.1.
Tally out (TSL Ver. 4.0): Used to transfer tally data using TSL protocol ver. 4.0.
HVS-TAL Protocol Reception: Used to receive HANABI series serial tallies.
(*2)
. Other connection methods are also available.
IMPORTANT
Saved settings are applied the next time the MFR-TALM unit is rebooted.
