3. MFR Main Unit Page Configuration

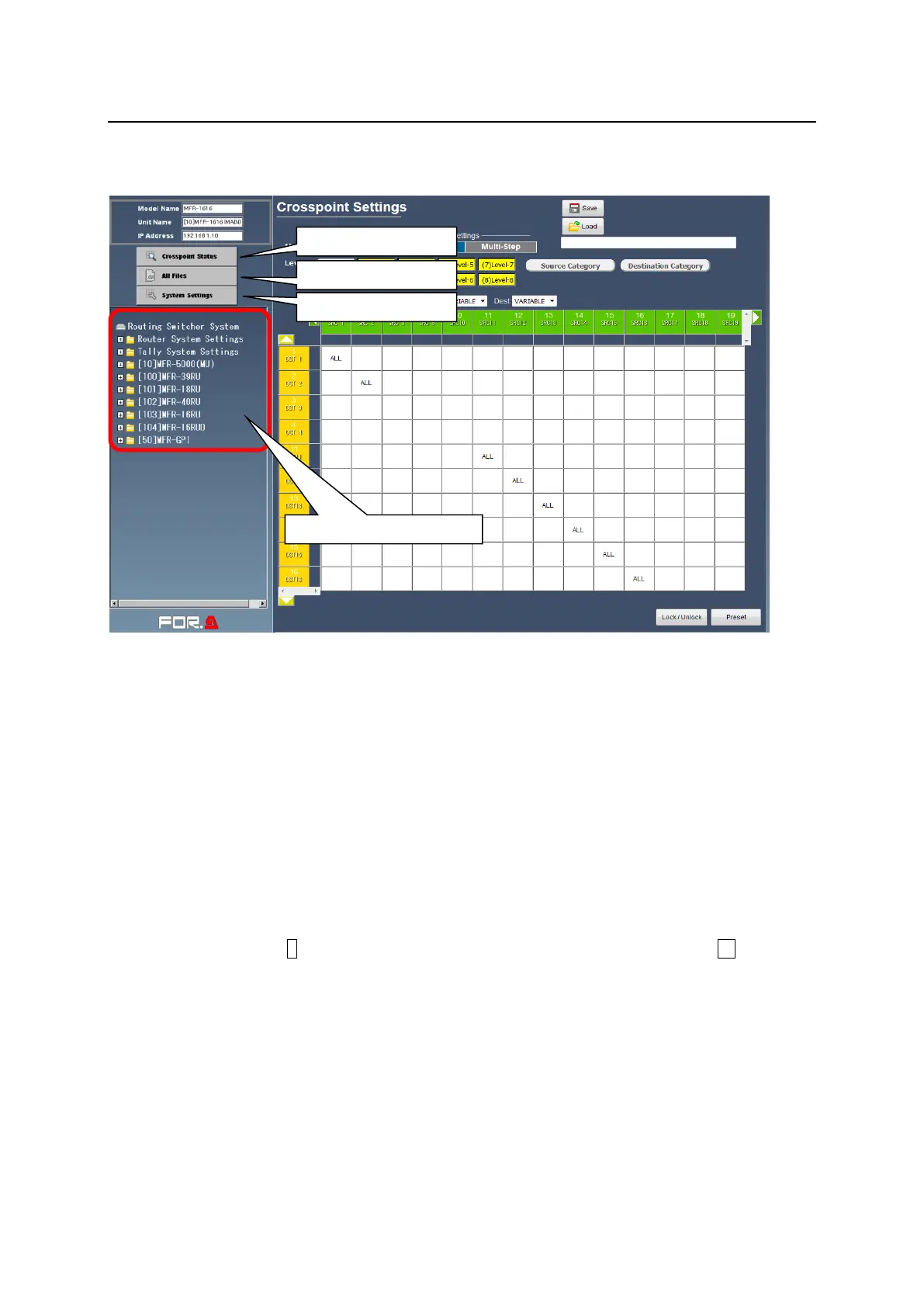

On the MFR series main unit Web-Based Control screen, there are three buttons: Crosspoint Status,
All Files, and System Settings in the left pane.
Crosspoint Status
Displays each unit state, crosspoint information and the Crosspoint Settings page. See Sec. 7.
Crosspoint Status.
All Files
Displays a page in which all settings in the router system can be saved and loaded as a whole.
System Settings
Displays the navigation tree.
Navigation Tree
Allows you to open the Router System Settings page, Tally System Settings page, and other
device setting pages.
Click an item or the + icon to the left to expand the tree. Clicking the item or the - icon again
collapses the tree. For details on each screen, see Secs. 4 “Router and Tally System Settings” to 6
“MFR-GPI”.
[Crosspoint Status]
[System Settings]
Navigation Tree
[All Files]
