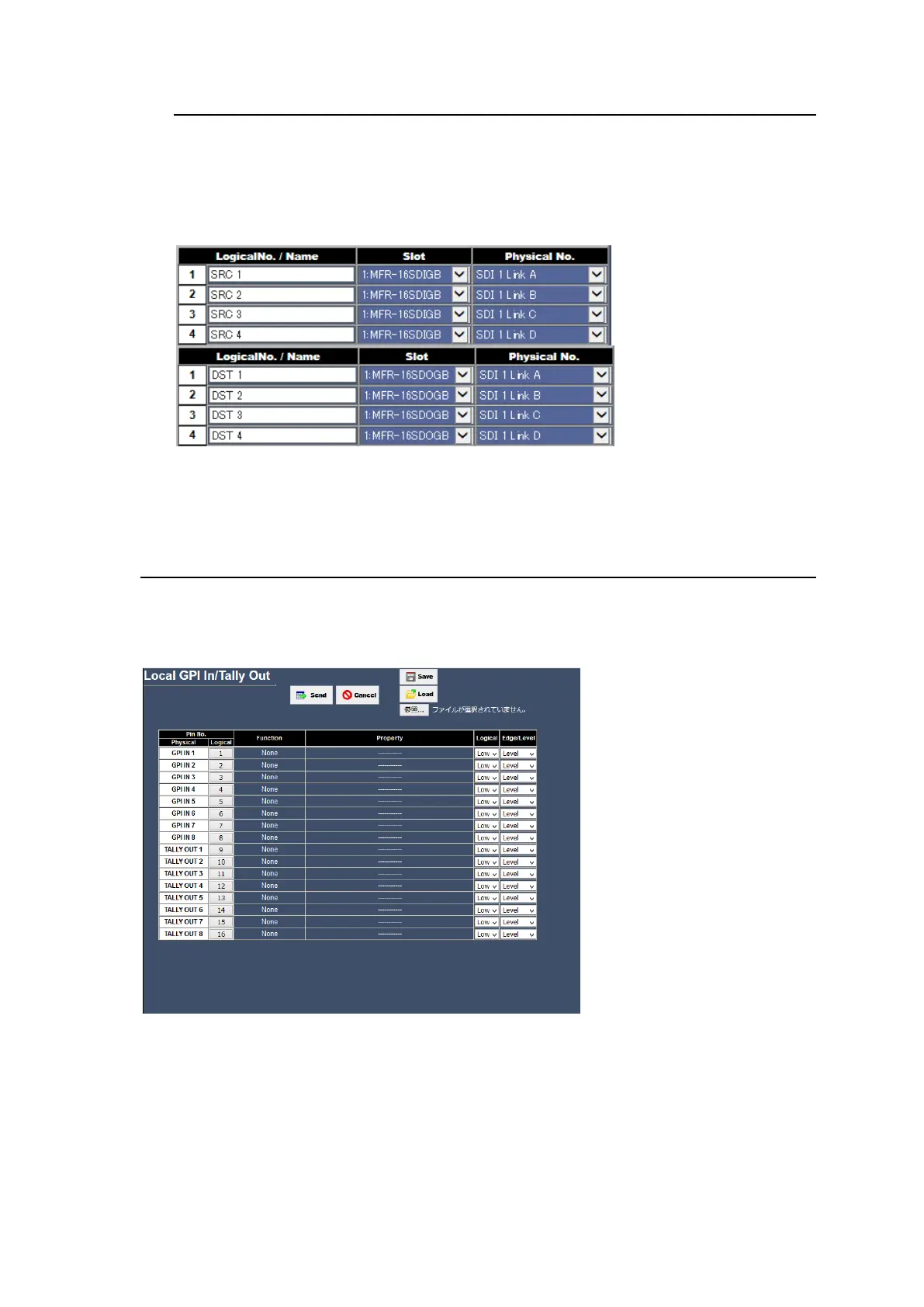

5-8-2. Source Assignment / Destination Assignment Pages
If 12G is selected for Gearbox input or output signal, Link A to Link D are displayed under four
Physical input channels in the Source Assignment page, and under four Physical output
channels in the Destination Assignment page.
12G-SDI signals are available only on the A (MFR-5000) or D (MFR-3000/8000) ports. Other
connector channels are disabled, but need to be assigned to logical channels.
► See Sec. 4-1-9. “Source Assignment” and Sec 4-1-10. “Destination Assignment” for details
on channel assignments.
5-9. Local GPI In/Tally Out
The Local GPI In/ Tally Out page allows you to assign functions to the MFR-1000 GPI In/ Tally Out
connector pins.
See Sec. 4-1-12. “GPI Pin Assign” for details.
Inputs are settable for Pin No.1-8 and outputs are settable for Pin No. 9-16.
