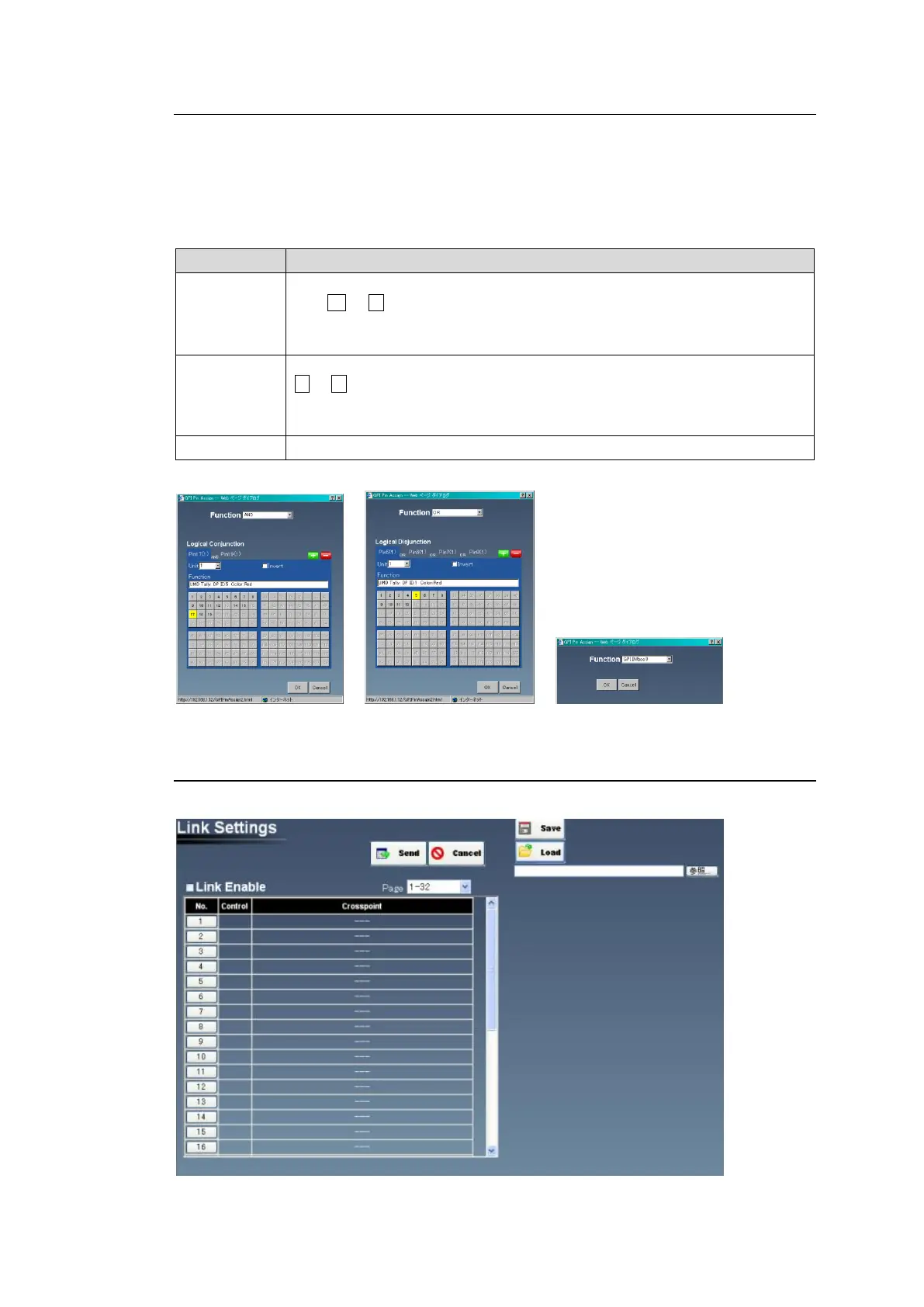

38
4-1-12-3. Logical Destinations and Sources
1. Select the Unit Number to save the settings in Unit field and select the MFR-GPI unit ID to
apply.
2. Click the Pin No. button. The setting dialog box appears.
3. Select a pin function from the Function column. The screen changes according to the
selected function. Set required settings and click OK.
Function
Description
AND
Outputs the result of Boolean operation (logical product) of the specified
pins. + or - allows you to add or delete up to 4 total pin selections.
Check Invert to set a logical product with the negative condition.
Select a unit and pin, then click OK.
OR
Outputs the result of Boolean operation (logical sum) of the specified pins.
+ or - allows you to add or delete up to 4 total pin selections.
Check Invert to set a logical product with the negative condition.
Select a unit and pin, then click OK.
GPI IN (bool)
Inputs a signal, which is used for logical expressions as a Boolean value.
4-1-13. Link Settings
The Link Settings page allows you to set link settings.
