4-1-3. SystemSize / LevelName

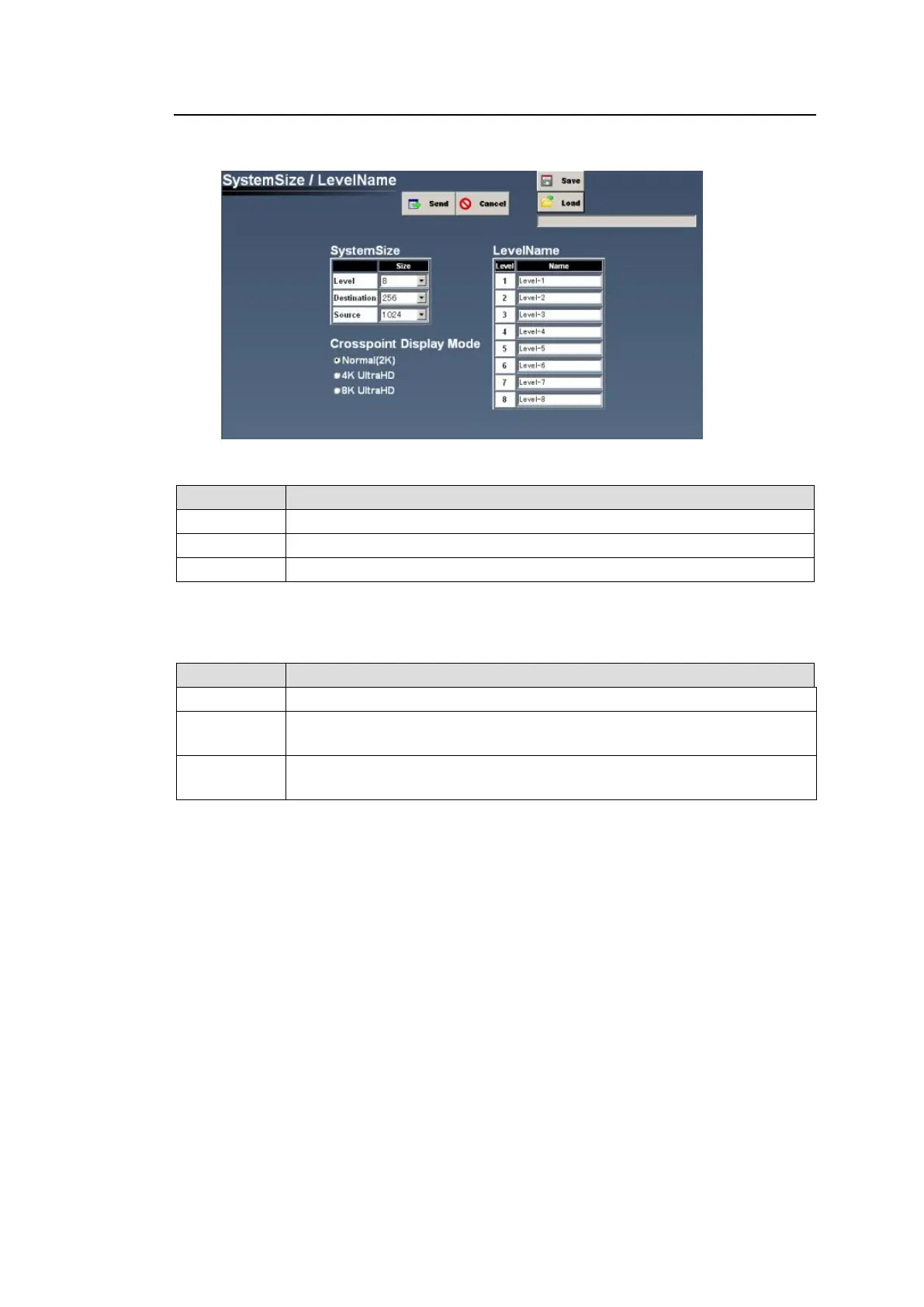

Clicking SystemSize/ LevelName in the tree displays the screen that allows you to enter the
System Size and Level Name settings.
1. Select numbers for the following parameter listings under SystemSize.
Parameter
Description
Level
Allows you to select the number of Levels used within the range 1 to 8.
Destination
Allows you to select the number of Destination channels.
Source
Allows you to select the number of Source channels.
2. Input level names under LevelName.
3. Select the crosspoint display mode under Crosspoint Display Mode. (MFR-1000 does
not support this function)
Parameter
Description
Normal
The grid size equals the system size.
4K UltraHD
The grid size equals 1/4 of the system size.
Ex.) If the system size is set to 128 x 128, the grid size is 32 x 32
8K UltraHD
The grid size equals 1/16 of the system size.
Ex.) If the system size is set to 128 x 128, the grid size is 8 x 8
