61

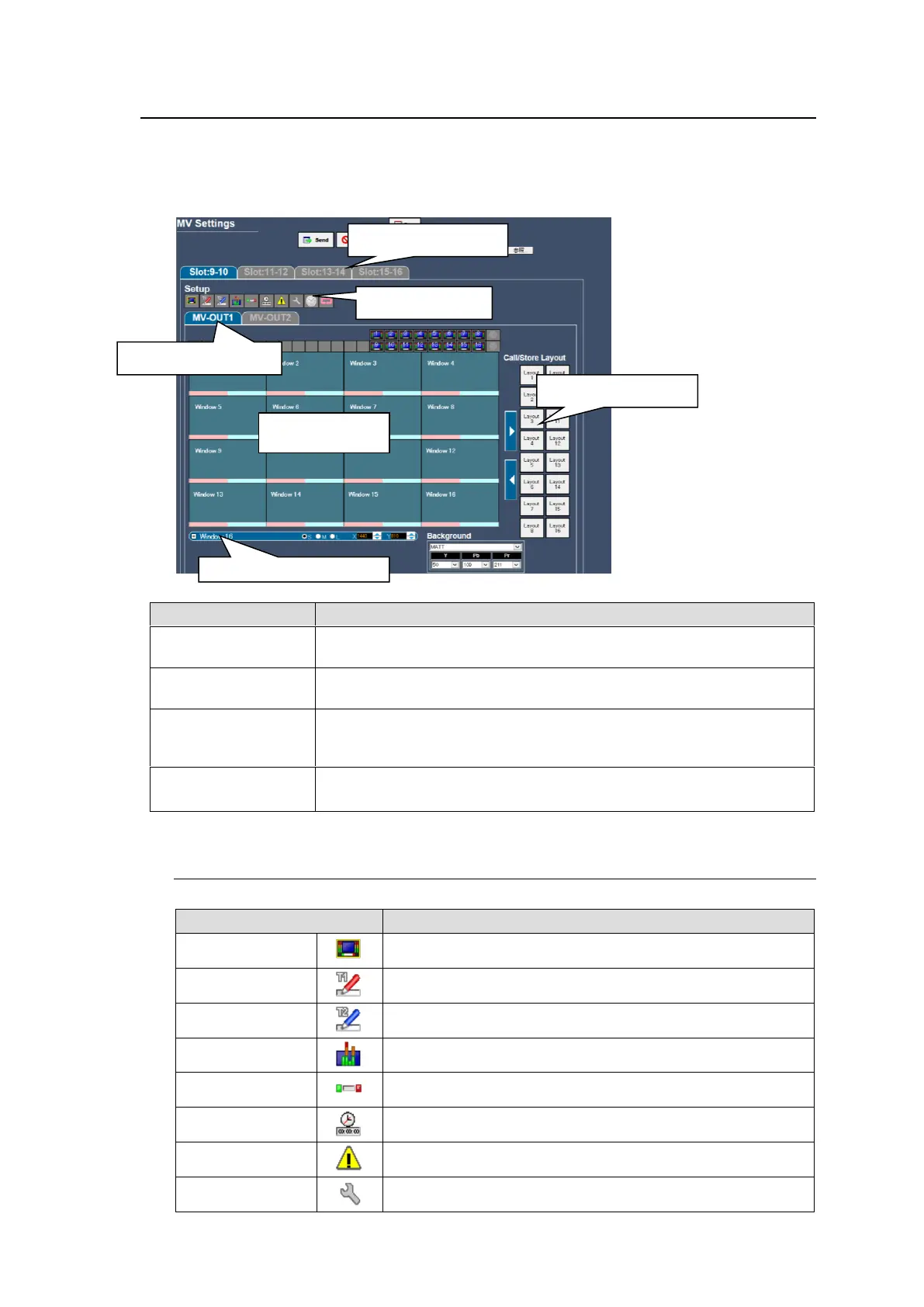

5-6. MV Settings
This page is available only for MFR-3000 units into which an optional MFR-16MV is installed.
See Sec. 7 ”Multiview Output” in the MFR-3000 Operation manual for more details on how to
output multiview images.
Parameter
Description
Slot selection tabs
Selects a slot where your MFR-16MV is installed. Click the relevant slot
tab to display slot card settings.
MV channel tabs
Selects an MV channel. Click the relevant channel tab. The current MV
channel settings are displayed.
Layout editing area
Used for editing MV layouts. Pressing Send applies the current settings
to the MV output screen. If a window is located outside the active
display area, it turns orange.
Layout buttons
Apart from the current layout, up to 16 layouts can be saved.
Hovering the mouse over layout buttons allows you to view layouts.
5-6-1. Setup Menu
Settings made by the following listed icons are applied to all split screens.
Icon
Description
Frame
Displays window frame settings.
Title 1
Displays Title 1 settings.
Title 2
Displays Title 2 settings.
Audio level meter
Displays audio level meter settings.
Tally marker
Displays tally marker settings.
Timecode
Displays timecode settings.
Alarm
Displays alarm display settings.
Other settings
Displays video format and grid display settings.
Setup menu
Window setting menu
Layout buttons
Layout editing
area
Slot selection tabs
MV channel tabs
