35
Session
Information
A list of active sessions
Check Delete, and click Send to terminate the session.
Command Response
Settings for Crosspoint Remote Control and Crosspoint Remote Control 2” protocols allow
ON or OFF to be selected for Echo, C Response and S Response, respectively.
NOTE
Up to 20 external devices can be connected to an MFR Main Unit (including MFR-GPI serial
ports) through LAN or serial interface. The maximum number of allowed LAN connections is
16.
After changing the setting, click the Send button to save the settings.
Note that the numbers of sessions and TCP connections may differ in some cases.

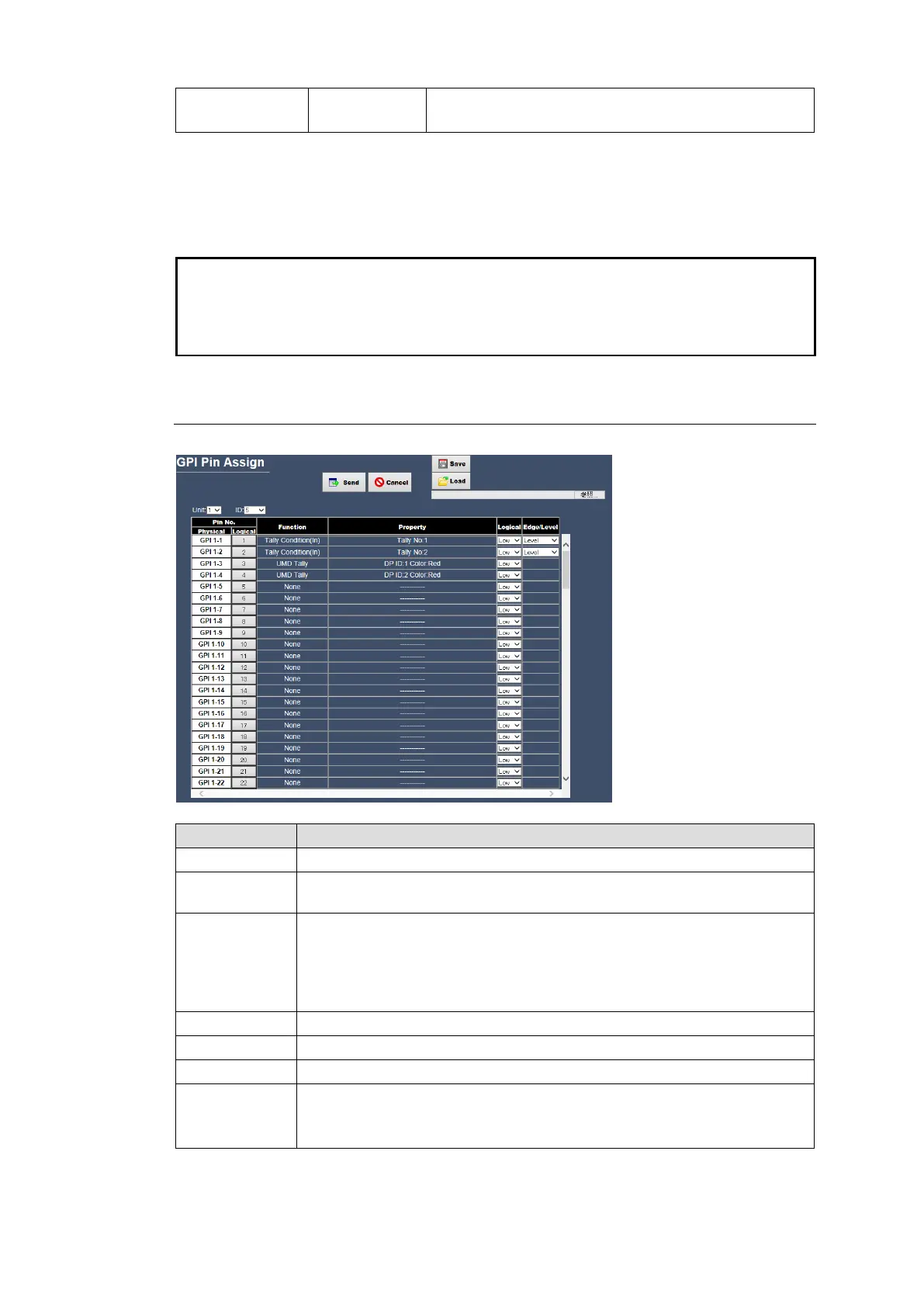

4-1-12. GPI Pin Assign
The GPI Pin Assign page allows you to assign a function to each MFR-GPI pin.
Parameter
Description
Unit
Allows you to select a Unit number from 1 to 4 to save settings.
ID
Allows you to select the ID of the MFR-GPI to which the assignments are
applied.
Pin No.
Physical: Displays GPI port and associated pin numbers.
Ex.) GPI3-1: 1st pin of GPI3 (Port no. 3)
Logical: Logical Nos., controlled by MFR. Numbers, are assigned
sequentially from GPI to GPI4.
Clicking a pin no. button displays a dialog box.
Function
Displays the assigned function.
Property
Displays the property of the assigned function.
Logical
Select High or Low for a GPI input/output to be enabled.
Edge/Level
Select Edge or Level to enable GPI input.
Edge: Inputs are enabled by rising or falling edges.
Level: Inputs are enabled by low or high state (active low or active high).
