Fraco SEP-5000 - Technical Configurations; Overview, Mono-Mast - Single Unit; Figure 1 - Mono-Mast, Single Unit; Table 5 - Mono-Mast Assembly Components, Single Unit

Transport platform SEP Serie
SEP user’s manual Page 16 of 89 Doc no. RD-7243-MA-001-02

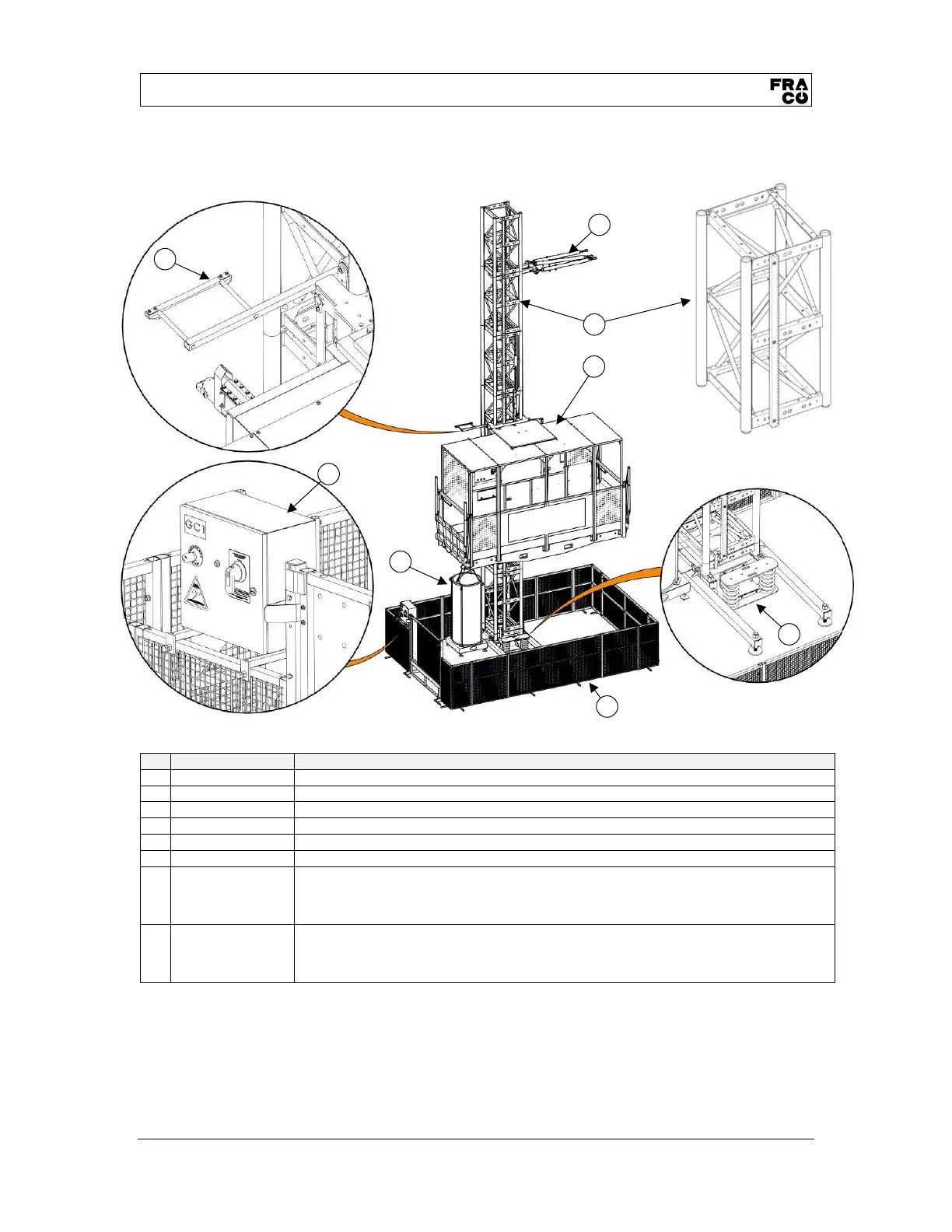

Figure 1 – mono-mast, single unit
4.4. Technical configurations
4.4.1. Overview, mono-mast – single unit
N°
Item
Description
1
RD-7243-AT-100
Cable guide
2
RD-7243-BC-104
Platform right SEP-5000
3
RD-7243-BE-107
Ground cabinet GC1 SEP
4
RD-7243-GS-112
Ground enclosure – single mast
5
RD-7243-ME-100
Electric cable barrel SEP
6
13090104
Mast section 26" x 26" x 5'-0", 1 rack (Mast climber)
7
Depending on
model and
technical
specifications
Ground base assembly
8
Depending on
model and
technical
specifications
Mast tie assembly and mast anchor system
Table 5 – Mono-mast assembly components, single unit
Note: "The technical configuration double-mast, single unit (one platform between two masts)
is not presented in this manual but is nevertheless available among the range of products."
2
5
1
3
4
6
7
8
Single mast section
(13090104)
