Transport platform SEP Serie
SEP user’s manual Page 24 of 89 Doc no. RD-7243-MA-001-02
Figure 8 – Roof installation, central segment
4.9. Accessories
4.9.1. Protection roof and access trap (optional)
The protection roof is available (optional) and may be necessary according to local regulation
(SEE EFFECTIVE LOCAL REGULATION). The protection roof is designed to protect worker from the fall of
objects at height and is installed on the guardrail of the plateform. The roof is equipped with an
access trap allowing passage of the mast sections during assembly. The access trap is equipped
with an opening detector, making it impossible to move the platform as long as the access trap is
opened and unlocked.
Important! It is forbiden to work on the roof. The roof is a protection and not a valid work
surface. No worker should ever be on the roof.

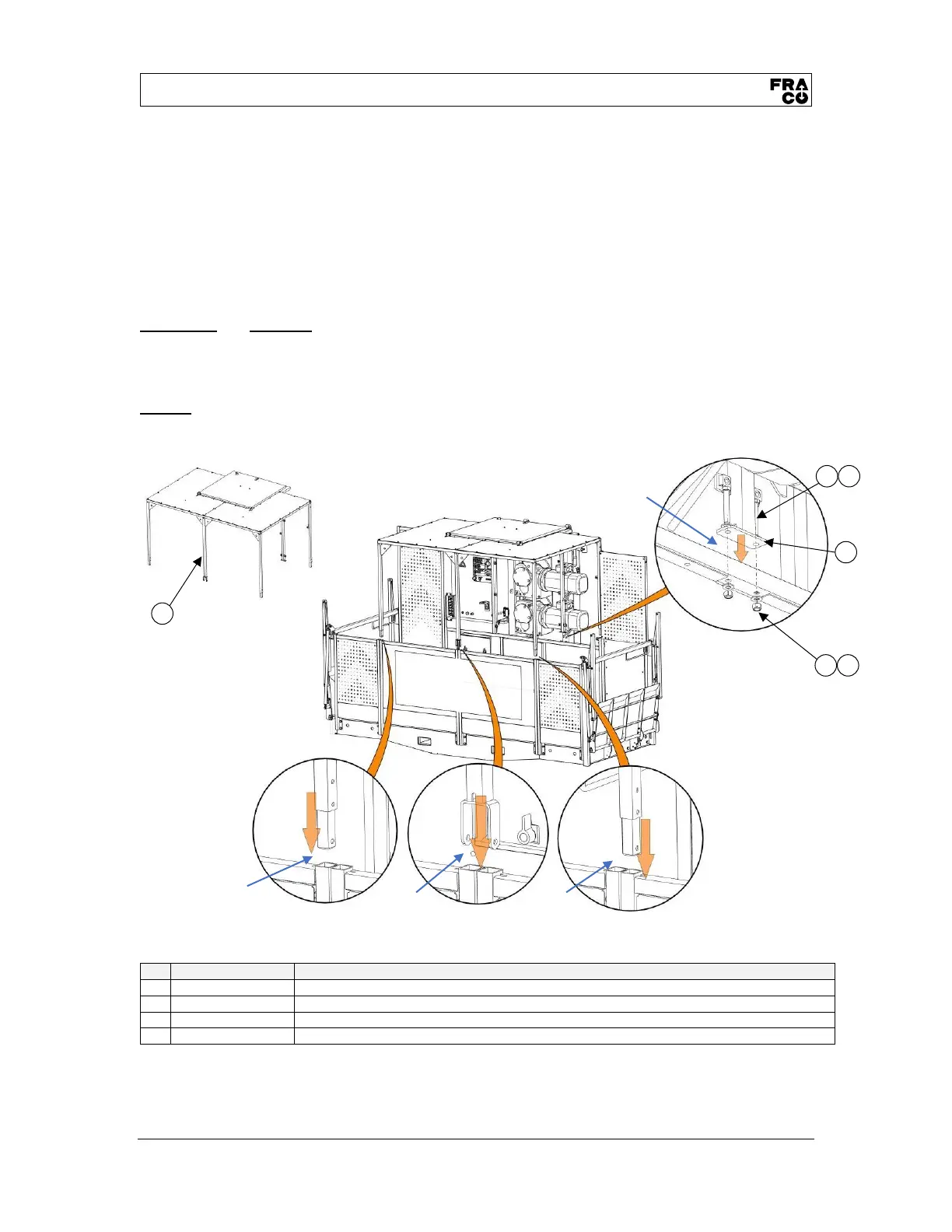

Install the protection roof by following the steps below:
Step 1.
Install the main protection roof (RD-7243-ST-106) by sliding the support posts of the roof into the
railing (1). Bolt the posts of the roof on the side of the motor unit (2).
N°
Item
Description
1
RD-7243-ST-106
Main protection roof 5' 11" 8' 0" SEP
2
BOZ-7130
Bolt 3/8"-16unc x 2-1/2" gr5 zinc
3
NYL-2020
Nylon lock nut 3/8"-16unc gr5 zinc
4
WAZ-7021
Washer 3/8" SAE zinc
(1)
(1)
(1)
(2)
1
1
2
4
3
4
