Transport platform SEP Serie
SEP user’s manual Page 72 of 89 Doc no. RD-7243-MA-001-02
9.7. Periodic Lubrification
Lubrification scheme
Lubrification points
Nb of points / unit
Type of lubrification
Application method
Monthly (40 hours)
(1) Rack
Total length of the mast
* Grease
Coating / pistol / (optional
automatic lubricator)
(2) Centrifugal brake
(Plateform int.)
1
Grease
Greasing pistol
(3) Centrifugal brake
(Plateform ext.)
1
Grease
Greasing pistol
(4) Planetary pinions
6-8
Grease
Greasing pistol
Quarterly (120 hours) + monthly items
(5) Power unit roller guides
16
** Penetrating oil
** Penetrating oil
Annually (480 hours) + monthly and quarterly items
(6) Gear box
2-3
*** Gear oil
Fill (purge as needed)
* Rack, it is recommended to use the following greases: TOTAL CERAN XM 220 ou
GEAR SHEILD extra heavy (extreme pressure lubricant).
** The pillars of the rollers are sealed and do not require lubrification. When istalling the rollers, clean shaft surfaces
with a penetrating oil of WD 40 (RED ARROW) and make sure the rollers slide easily along their shaft. Replace rollers
if their seal is damaged or if they do not roll adequately.
*** Recommended gear oil and manufacturers:
Mobil Glygoyle 200
Aral Degol GS 220
Shell Omala S4 WE 220
BP Enersyn SG-XP 220

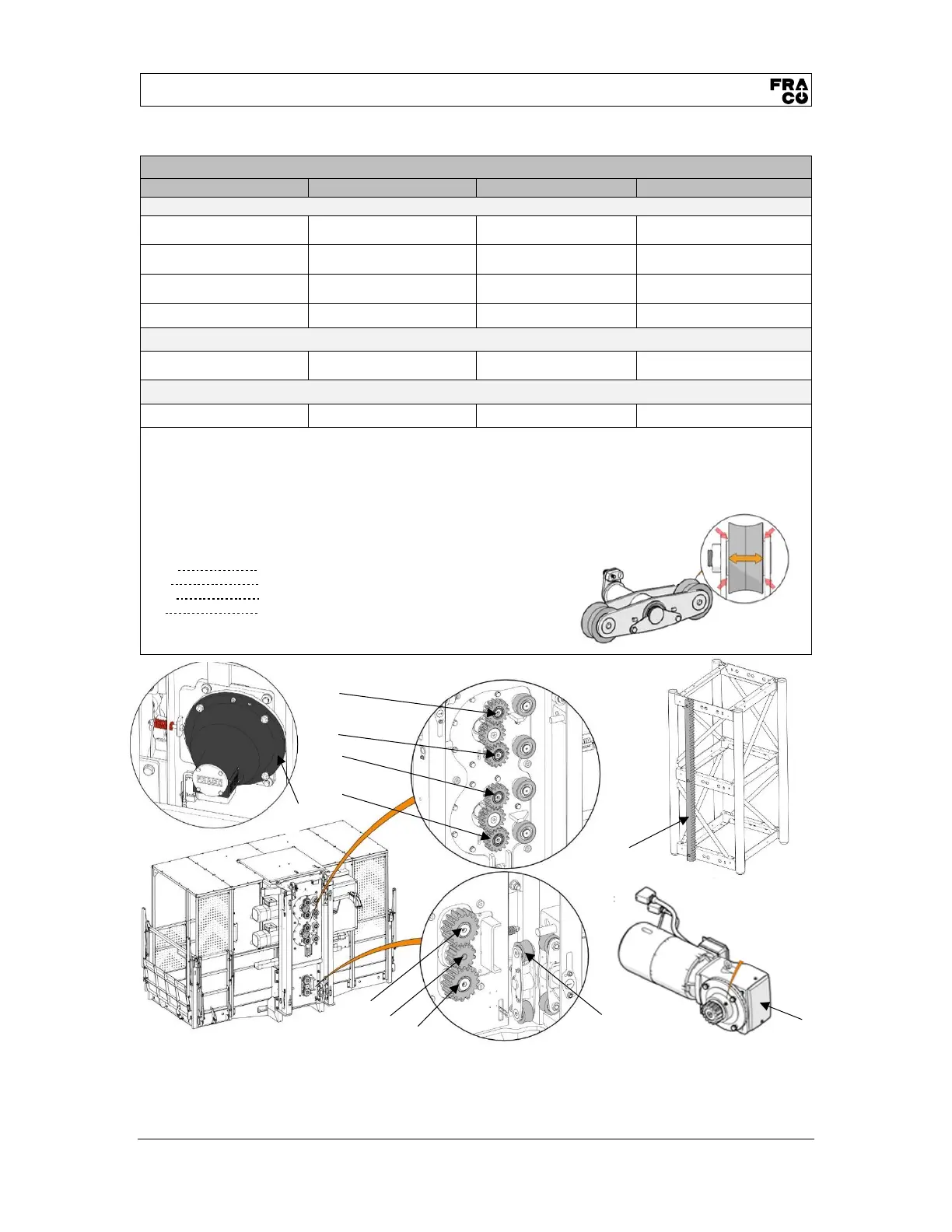

Figure 43 – Periodic lubrication points
(1)
(1)
(3)
(2)
(4)
(4)
(4)
(4)
(4)
(4)
(5)
(6)
Level
