Transport platform SEP Serie
SEP user’s manual Page 39 of 89 Doc no. RD-7243-MA-001-02

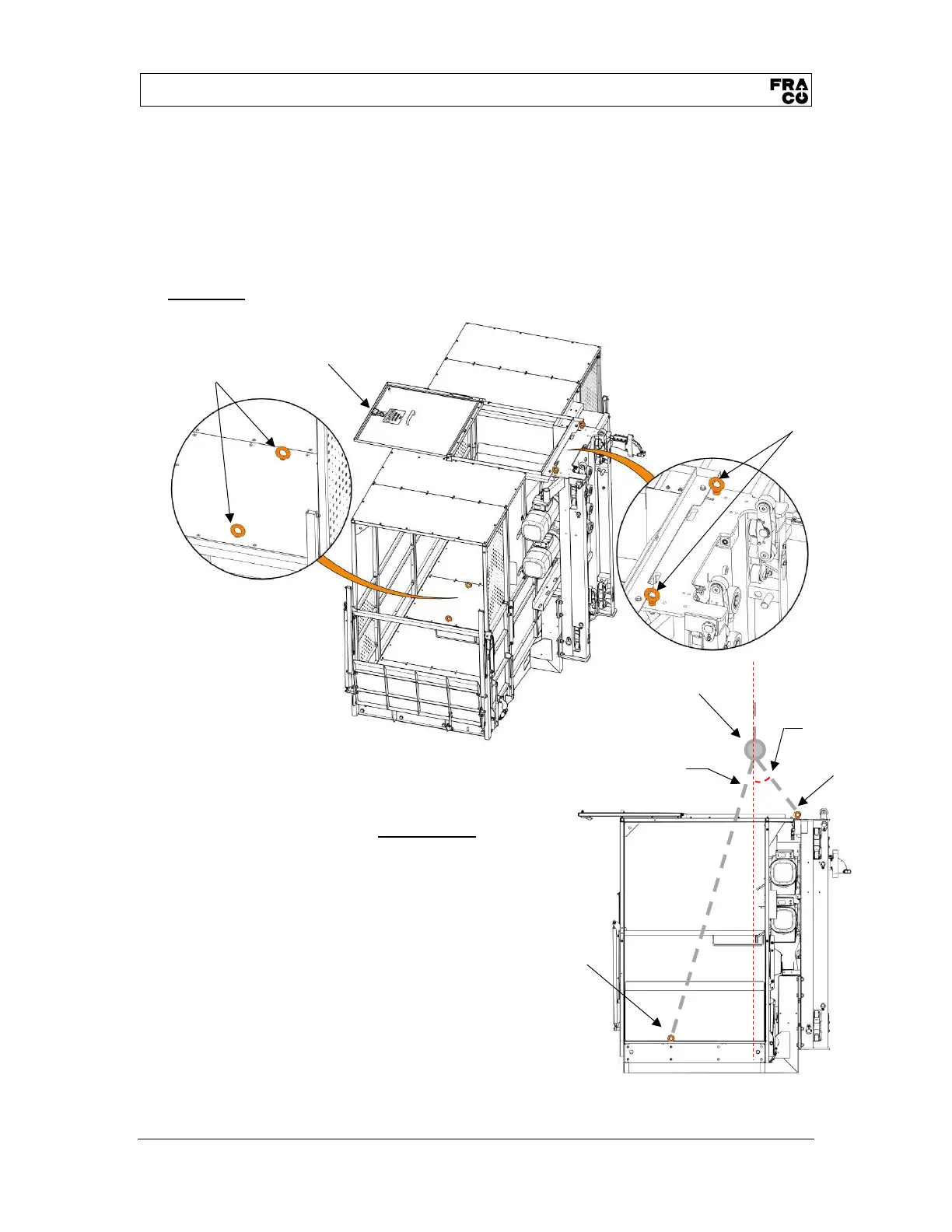

Figure 22 – Lifting with a crane
6.2.2. Lifting with a crane
• The crane hook (1) must be attached to four (4) chains, tied to the four (4) lifting rings. The
chains may be purchased and provided with the machine.
• If present, open the roof access trap (2) to allow passage of the lifting chains.
• Two (2) lifting rings (3) are required on the railing of the motor unit. Use the 39-1/4" (996 mm)
chains.
• Two (2) lifting rings (4) are required for the platform floor. Use the 118-3/4" (3 m) chains.
Place these two (2) rings in the toolbox when the installation is complete.
• Important! The dimensions of chains provided allow to lift the machine directly over its center
of gravity (CG).
Figure 23 – Chain detail for lifting with crane
The lifitng rings located on the
floor are removable and must
be appropriately tightened
before use. Place them in the
toolbox after use.
(4)
(2)
(3)
IMPORTANT! Use the
chains lengths specified
here. Chains of different
lengths may considerably
increase the stress on the
lifting rings.
118-3/4" (3 m) chains
39-1/4" (996 mm)
chains
CG
(1)
(3)
(4)
60°
MAX
