Transport platform SEP Serie
SEP user’s manual Page 25 of 89 Doc no. RD-7243-MA-001-02

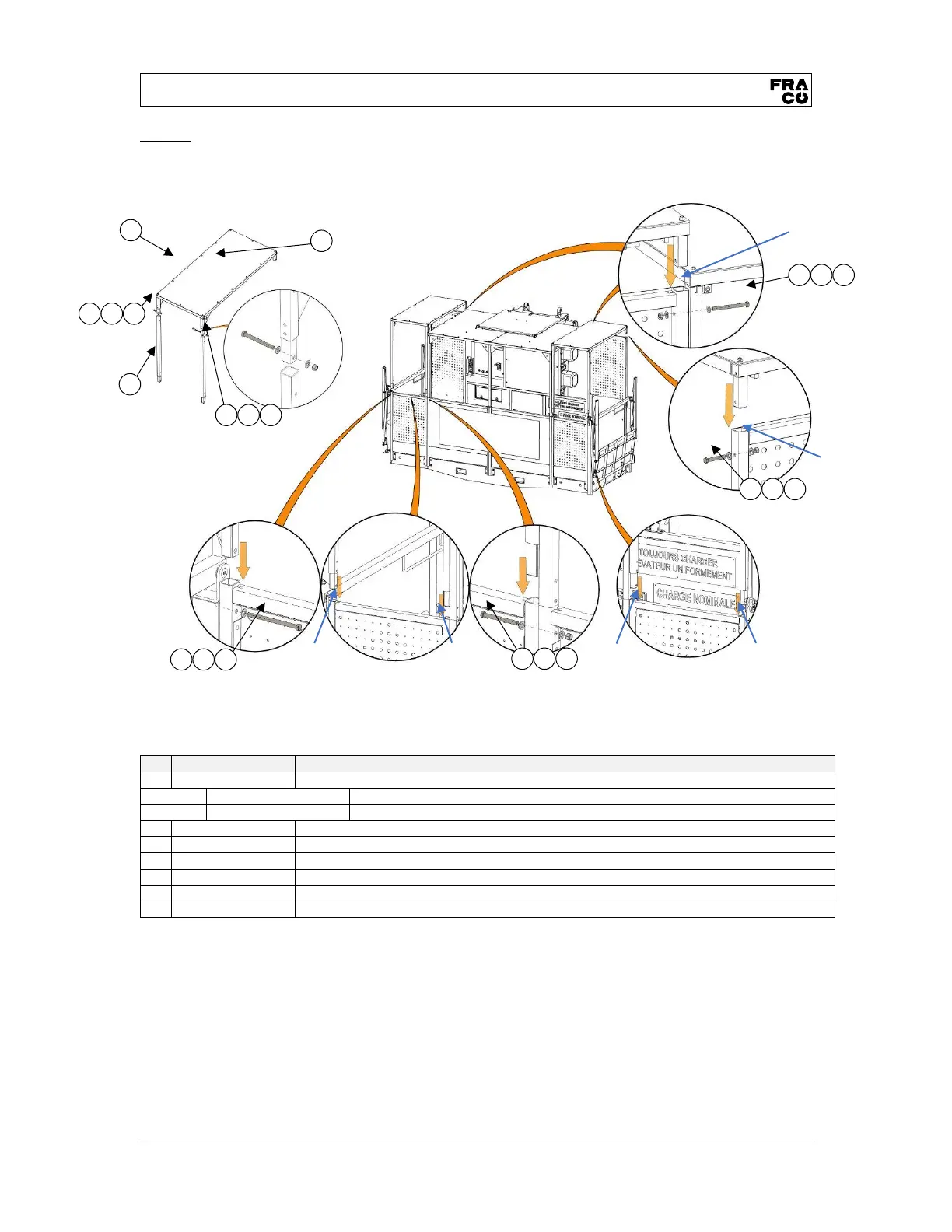

Figure 9 – Roof installation, side extensions
Step 2.
Install the roof protection structures left and right (RD-7243-ST-112) on each side of the central
roof segement. Slide the roof support posts (1) in front of and in the protection panels (2) on the
side of the motor unit. Bolt into place.
N°
Item
Description
1
RD-7243-ST-125
Protection roof structure assembly (extension)
1.1
RD-7243-ST-112
Protection roof structure (extension)
1.2
RD-7243-ST-121
Roof support post
2
BOZ-7130
Bolt 3/8"-16unc x 2-1/2" gr5 zinc
3
BOZ-7141
Bolt 3/8"-16unc x 3-3/4" gr5 zinc
4
BOZ-7142
Bolt 3/8"-16unc x 4" gr5 zinc
5
BOZ-8530
Bolt 3/8"-16unc x 5-1/2" gr5 zinc
6
NYL-2020
Nylon lock nut 3/8"-16unc gr5 zinc
7
WAZ-7021
Washer 3/8" SAE zinc
(1)
(2)
(1)
(1)
(1)
(2)
7
6
5
7
6
3
7
6
4
7
6
2
1
1.2
1.1
7
6
3
7
6
2
